Key Takeaways:
- Specify Both Before Fabrication Begins: Fire rating and radiation shielding must both be confirmed before fabrication begins. Missing either at the specification stage leads to compliance failures that affect building code and radiation safety at the same time.
- Labels Are Your Compliance Proof: A fire-rated door without an intact testing laboratory label cannot be verified at inspection. The label must remain visible on the installed door, since specification documents alone are not accepted as proof during a hardware review.
- The Entire Assembly Must Match: An unrated frame or unlisted hardware voids the fire rating of the whole door assembly. The door, frame, and all hardware must be specified and sourced together as a compatible, compliant system.

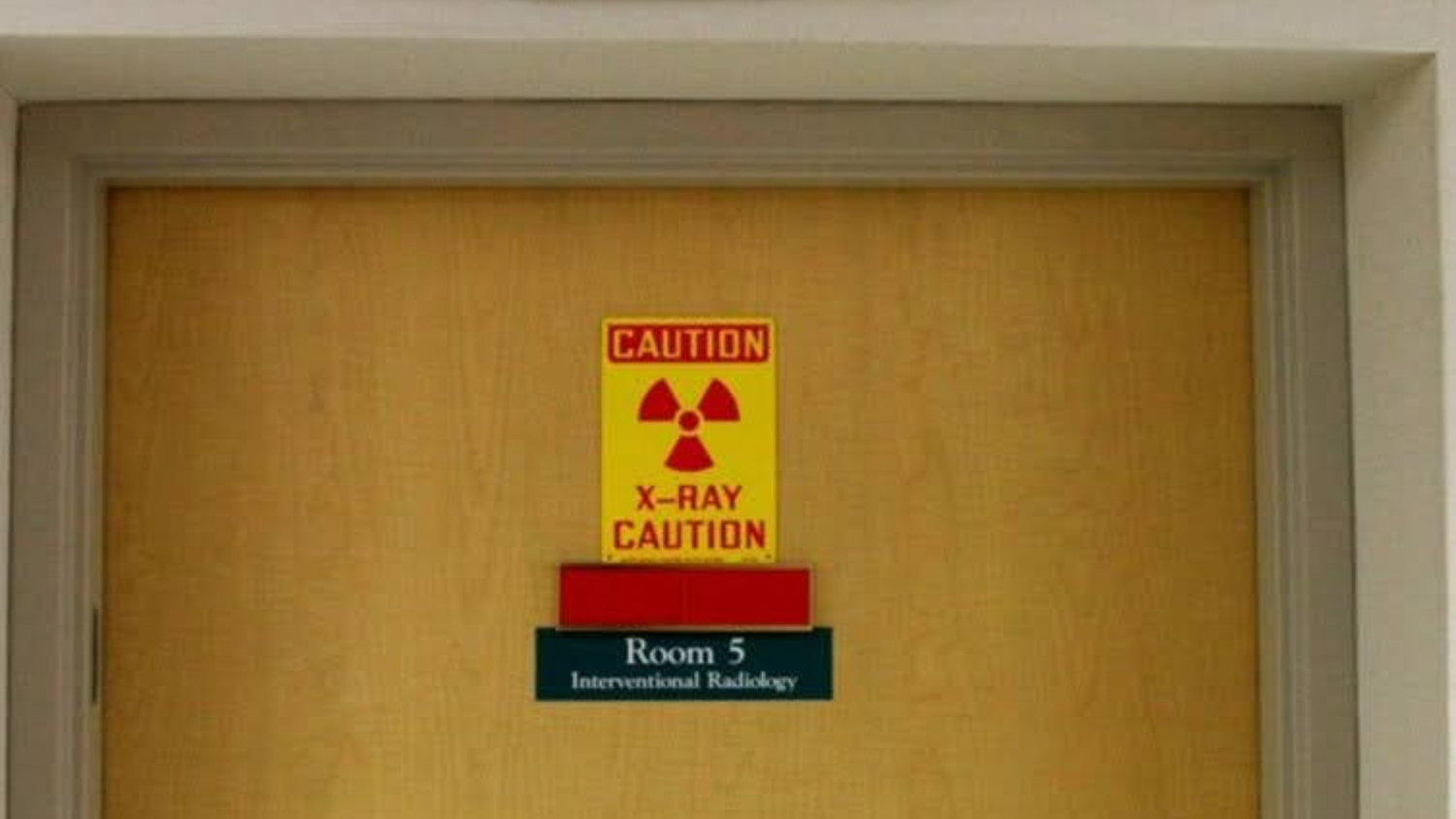

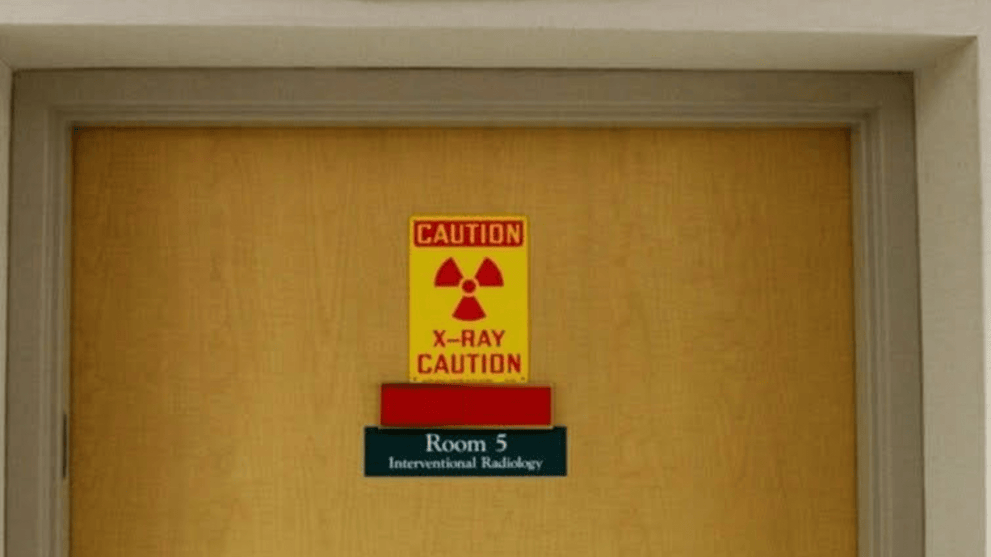

Specifying a lead-lined wood door for a fire-rated wall opening means satisfying two completely separate compliance requirements with a single product. Get one wrong, and the entire assembly fails, regardless of how well the other requirements are met. Fire-rating requirements are ultimately determined by the applicable building code and the Authority Having Jurisdiction (AHJ).
At Lead Glass Pro, we supply lead-lined wood doors and complete door assemblies to construction teams and design professionals across the U.S. Every product is fabricated to meet radiation shielding requirements, and our team supports specification decisions involving both lead equivalency and fire rating from the first inquiry through delivery.
Let’s highlight fire rating classifications, where they apply, how they interact with lead thickness, and what frame and hardware compliance requires.
Fire Door Labels And Inspection Requirements
A fire-rated door assembly is typically identified by a permanent label from the testing agency or manufacturer. Removing, painting over, or damaging the label can create inspection issues because inspectors often use the label to verify compliance in the field.
Why Fire Rating And Radiation Shielding Must Work Together
Both requirements exist independently, but in imaging facilities, they often apply to the same door. Treating fire rating and radiation shielding as separate procurement decisions regularly produces assemblies that satisfy one standard while failing the other.
A lead-lined fire-rated door must satisfy two separate sets of requirements simultaneously. The fire rating governs how long the door assembly resists fire and smoke. The radiation shielding requirement governs how much ionizing radiation the door attenuates.
Facilities that address both requirements together from the start avoid the delays that come with mid-project corrections. Our Lead Shielding for Radiation Imaging blog explains how lead attenuation requirements are determined for imaging rooms, which is a useful reference before fire rating classifications are confirmed.
Where Fire-Rated Lead-Lined Doors Are Required By Code
Lead-lined wood door requirements vary by facility type and location within the building. These are the most common conditions that trigger the requirement.
- Egress Corridors in Healthcare: Imaging rooms within or adjacent to corridors serving as means of egress in healthcare facilities require fire-rated door assemblies. Code requirements in these corridors affect occupant safety.
- X-Ray and CT Rooms: X-ray and CT rooms in buildings where the surrounding wall carries a fire-resistance rating must have a compliant door assembly.
- Rated Fire Barrier Partitions: Rooms where the partition separating an imaging space from adjacent occupancies is a rated fire barrier require a compatible door assembly in that partition.
- Joint Commission and Health Department Standards: Facilities subject to Healthcare Accreditation and Regulatory Requirements, state health department, or local authority having jurisdiction requirements may require fire-rated assemblies at radiation room openings.
- Fire and Life Safety Plan Designations: Any opening in a shielded wall designated as requiring a fire-rated door assembly on the project's fire and life safety plan must comply, regardless of the radiation shielding requirement.
Lead Thickness And Fire Rating: How The Two Are Specified Together
Specifying lead thickness and fire rating as independent decisions creates coordination problems that surface late in the project. Both must be confirmed and documented before fabrication begins.
Common Fire Rating Classifications
- 20 Minute
- 45 Minute
- 60 Minute
- 90 Minute
- 180 Minute
The required rating is determined by the wall assembly and applicable code requirements.
Who Provides Each Specification
The required lead equivalency is provided by a radiation physicist. The required fire rating is determined by the building code, the fire and life safety consultant, or the authority having jurisdiction. Both specifications must be confirmed and documented before a lead-lined door fire rating requirements order is placed.
How Lead Thickness Affects Door Construction
Lead is added internally to the door construction. Higher lead equivalencies increase the overall weight of the door assembly. The door's structural construction must accommodate the combined weight of the fire-rated door core and the specified lead thickness. This is a fabrication consideration that affects both the door and the hardware selection.
Custom Lead Thickness In Fire-Rated Assemblies
A radiation shielding fire-rated door must be fabricated with the exact lead equivalency the physicist specifies, not rounded to the nearest available standard. Lead Glass Pro supplies lead-lined wood doors with custom lead thicknesses, allowing the fire-rated assembly to meet the radiation shielding requirement precisely rather than approximating it.
Confirming Compatibility Before Ordering
The fire rating classification and the lead equivalency must be confirmed as compatible before fabrication begins. Because fire-rated and lead-lined assemblies are custom-fabricated, changes after fabrication begins are often difficult or impossible to accommodate. Submitting both the physicist's specification and the fire rating requirement at the time of inquiry allows Lead Glass Pro to confirm the correct assembly before the order is finalized.
Frame And Hardware Requirements For Fire-Rated Assemblies
A fire-rated door assembly includes more than the door itself. The frame and hardware must meet the same rating requirements for the assembly to remain compliant.
Frame Rating Requirements
The frame surrounding a fire-rated lead-lined door must carry a compatible fire rating. An unrated frame installed with a rated door voids the fire rating of the assembly. We supply Frame Lead Lining Kits for installations where the frame requires lead lining in addition to its fire rating. Frame specification must be confirmed alongside the door specification, not treated as a separate procurement decision.
Hardware Compatibility With Fire-Rated Assemblies
Hardware installed on a fire-rated door must be listed and labeled for use on fire-rated assemblies. This includes hinges, locksets, closers, and any other hardware components. Lead Glass Pro supplies lead-lined cylindrical locksets compatible with lead-lined door assemblies.
Door Closers On Fire-Rated Assemblies
In most code jurisdictions, fire-rated doors are required to be self-closing. A listed door closer must be specified and installed on every fire-rated lead-lined door. The closer must be rated for the door's weight, which is higher than that of a standard door due to the lead lining.
Vision Panel Hardware In Fire-Rated Doors
Any vision panel installed in a fire-rated lead-lined door must utilize fire-rated glazing, a listed vision frame, and installation methods permitted by the door manufacturer's fire listing. The glass, frame, and fastening method must all be compatible with the door's fire rating.
Final Thoughts
A lead-lined wood door that meets radiation shielding requirements but fails fire code is not a compliant assembly. Both ratings must be addressed together from specification through delivery.
We supply lead-lined wood doors with custom lead thicknesses, compatible frame lead-lining kits, lead-lined cylindrical locksets, and door accessories designed for compliant assemblies. Many standard shielding products are available with industry-leading lead times, while custom and fire-rated assemblies are fabricated to project requirements. aAnd every assembly is built to meet inspection standards on the first attempt. For X Ray Door Installation guidance specific to your project type, our team is available from the first specification question through delivery.
Send us your door schedule, physicist report, or fire-life-safety drawings, and our team can help verify lead equivalency, fire-rating requirements, frame specifications, glazing requirements, and compatible hardware before fabrication begins. And we'll confirm the right assembly before fabrication begins.
Frequently Asked Questions About Lead-lined Door Fire Rating
Who determines the fire rating required for a lead-lined door?
The building code, fire and life safety consultant, or authority having jurisdiction determines the required fire rating.
Does the lead lining affect the fire rating of the door?
Yes. Lead adds weight and affects door construction, so both ratings must be confirmed as compatible before fabrication.
Does Lead Glass Pro supply fire-rated lead-lined wood doors?
Lead Glass Pro supplies lead-lined wood doors with custom lead thicknesses. Confirm fire rating requirements at the time of inquiry.
Does the frame need to match the door's fire rating?
Yes. An unrated or incompatible frame voids the fire rating of the entire door assembly at inspection.
Is a door closer required on a fire-rated lead-lined door?
Yes. Most code jurisdictions require a listed self-closing device rated for the actual assembled door weight.
What vision panel glass is required in a fire-rated lead-lined door?
The glass, frame, and fastening method must all be part of the listed fire-rated assembly to maintain compliance.
