Key Takeaways:
- Yes, X-Ray Glass Contains Lead: Traditional X-ray shielding glass used in most medical and industrial applications contains lead oxide, which provides the radiation shielding properties while allowing the glass to remain transparent.
- Compliance Standards Are Non-Negotiable: Every panel must meet Federal Specification DD-G-451, ASTM C1036, and applicable NCRP and ICRP criteria to be considered radiation-safe.
- Visibility Is Not Compromised: Leaded x-ray glass maintains approximately 88% spectral light transmission while delivering reliable radiation attenuation.
Yes, X-ray glass is leaded. The lead oxide distributed throughout its composition is precisely what makes it capable of absorbing ionizing radiation while remaining transparent to visible light.
At Lead Glass Pro, we supply leaded X-ray glass to medical facilities, dental offices, veterinary clinics, and industrial environments across the U.S. Every panel is fabricated to federal and NCRP compliance standards, with stock and custom sizes available in 3 business days starting at $697.
This article covers what makes x-ray glass leaded, how it performs, what standards confirm it is radiation-safe, and what to verify before ordering.
What X-Ray Glass Is Made Of
The composition of x-ray glass sets it apart from every other transparent building material. Two properties define how it performs in shielded environments.
Lead Oxide As The Active Ingredient
Leaded X-ray glass contains lead oxide and other heavy metals, uniformly distributed throughout the glass matrix. This is not a coating, film, or surface treatment applied after manufacturing. The lead oxide is part of the glass itself, which means the shielding performance is consistent across the entire panel surface rather than concentrated in a single layer.
Why Uniform Distribution Matters
A glass panel with unevenly distributed lead oxide creates areas of lower attenuation across its surface. Lead Glass Pro manufactures lead glass with a uniform glass composition that provides consistent shielding performance across the entire viewing area.
l. This ensures that shielding performance is consistent from edge to edge and that the panel performs as rated across its entire surface.
How It Differs From Standard Architectural Glass
Standard architectural glass contains no lead oxide and provides no meaningful radiation attenuation. X-ray room glass in an imaging facility must be specified, fabricated, and installed as a shielding material, not treated as a standard glazing substitution. The two materials are not interchangeable in any shielded application.
The Visible Difference
Leaded glass has a slight green or blue-green tint that distinguishes it visually from standard clear glass. This tint is a result of the lead oxide and heavy metal content in the composition. The tint does not affect clinical visibility in any meaningful way, as the glass maintains approximately 88% spectral light transmission.
How The Lead Content Makes The Glass Radiation-Safe
Understanding how lead oxide interacts with ionizing radiation clarifies why composition, uniformity, and thickness all matter equally in a shielded installation. Lead is extremely dense, making it highly effective at absorbing ionizing radiation while still allowing visible light to pass through the glass.
Absorption Rather Than Reflection
When ionizing radiation encounters X-ray protective glass, the dense lead oxide molecules absorb the photon energy progressively as the radiation passes through the glass. The radiation is not reflected or deflected. It is absorbed within the glass material itself, which is why the glass can be transparent to visible light while blocking ionizing radiation at the same time. As X-rays pass through the glass, their energy is progressively reduced until the remaining radiation is below the level established by the shielding design.
The Role Of Lead Equivalency In Safety
Lead equivalency, expressed in millimeters of lead, describes the amount of radiation attenuation the glass provides. A panel rated at 2mm Pb at 150 kVp attenuates radiation to the same degree as a 2mm sheet of solid lead at that energy level. This rating is the primary compliance measure for any radiation shielding viewing window and must match the specification provided by a qualified radiation physicist.
What The Glass Cannot Block
Leaded X-ray glass is designed to attenuate ionizing radiation such as X-rays and gamma radiation. It is not intended to shield against MRI magnetic fields, radio-frequency energy, ultrasound, lasers, or other forms of non-ionizing radiation. Specifying leaded glass in an environment where non-ionizing radiation is the primary concern will not deliver the expected protection.
Is Leaded Glass Safe To Touch?
Yes. The lead oxide is permanently incorporated into the glass during manufacturing and is not exposed on the surface. Under normal handling and installation, leaded X-ray glass is safe to use in healthcare, research, veterinary, and industrial environments.
What Standards Confirm A Glass Panel Is Compliant
A glass panel that looks correct is not the same as one that is certified compliant. These are the standards that confirm a panel performs as rated.
- Federal Specification DD-G-451: The primary federal standard for leaded glass used in radiation shielding applications.
- ASTM C1036: Covers the physical quality requirements for flat glass used in construction applications.
- NCRP Report No. 49 & No. 147: Establishes radiation protection criteria and shielding requirements for medical X-ray facilities.
- ICRP Lead Glass Standards: International Commission on Radiological Protection criteria covering physical quality descriptions and required densities for lead glass.
- ANSI Z97.1 & CPSC 16 CFR Part 1201 CAT II: Required for impact-resistant safety glass used in door applications and any opening within 24 inches of a door.
- ASTM C1172: Applies to laminated glass used in applications where laminated construction is specified or required by local code.
Where Leaded X-Ray Glass Gets Installed And Why
The installation location determines the glass format, frame requirements, and compliance specifications that apply. Each setting has its own demands.

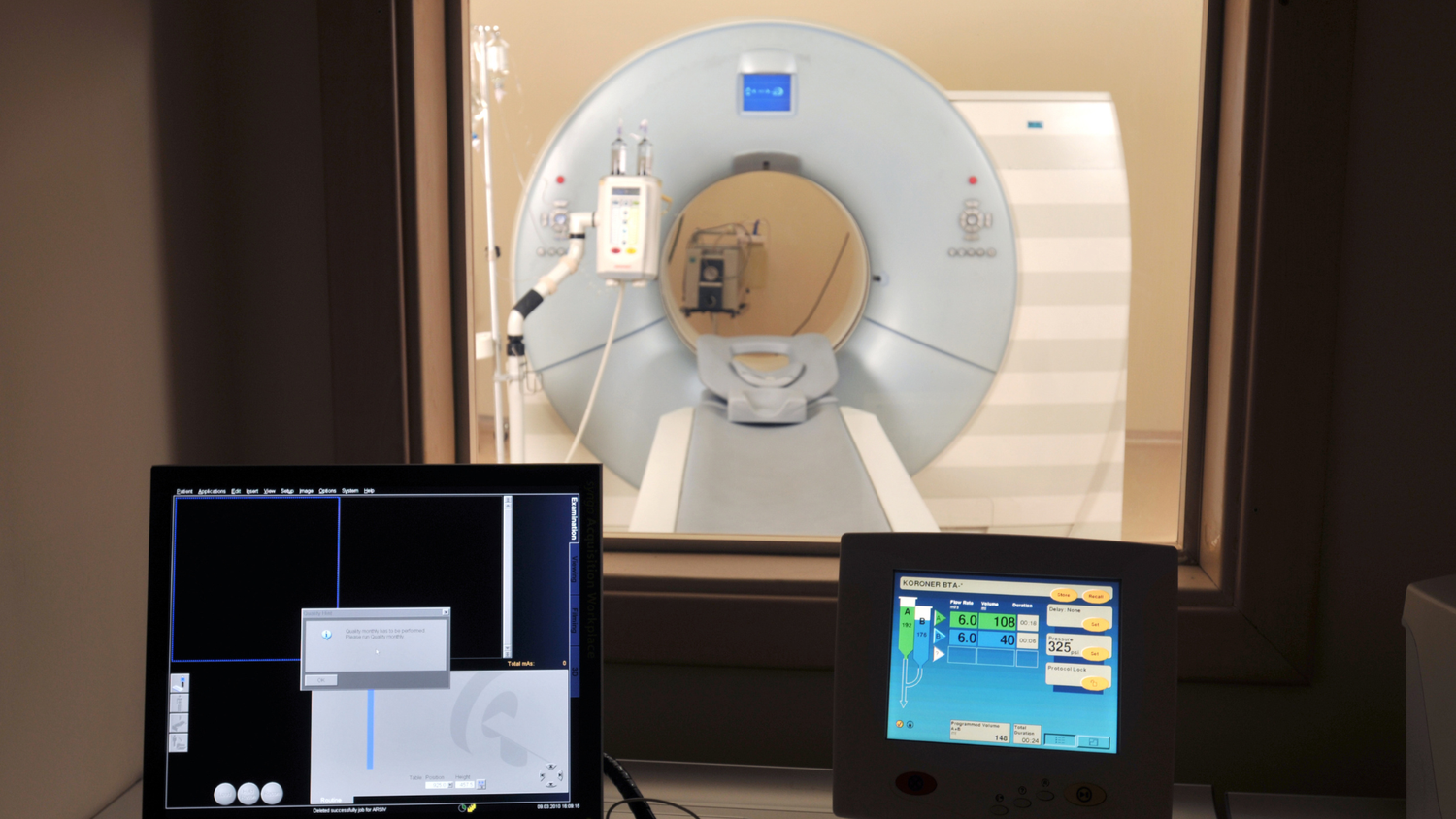

Observation Windows In Medical Imaging Rooms
The observation window between the operator's control area and the imaging room is the most critical application for X-ray protective glass in any diagnostic facility. It allows the technologist to monitor the patient during exposure while remaining protected from direct and scattered radiation. The glass must meet the physicist-specified lead equivalency for the specific room and equipment configuration.
Dental, Chiropractic, And Veterinary Offices
Smaller clinical environments operate the same compliance standards as hospital imaging rooms. Lead Glass Pro supplies leaded glass for compact operation and treatment room installations where the window opening is often the only glazed element in the shielded wall assembly.
Door Lite Kits And Vision Panels
When leaded glass is installed in a door or within 24 inches of a door, standard annealed glass is not permitted. Impact-resistant X-ray safety glass permanently labeled in compliance with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II is required in these locations. This format provides equivalent shielding performance with the additional structural integrity that door applications demand.
Does Leaded Glass Lose Its Shielding Over Time?
No. Because the lead oxide is incorporated throughout the glass during manufacturing, the radiation shielding performance does not wear off, fade, or diminish under normal service conditions.
What To Verify When Sourcing X-Ray Glass
Getting the right product to the site requires confirming several details before placing an order.
Compliance Documentation With Every Order
Every panel should ship with documentation confirming compliance with applicable federal specifications and NCRP and ICRP standards. A supplier who cannot provide this documentation creates a compliance gap that becomes visible at inspection. Lead Glass Pro's x-ray lead glass meets DD-G-451, ASTM C1036, and all applicable NCRP and ICRP criteria as a standard baseline for every order.
Confirmed Lead Equivalency Before Fabrication
The physicist's report must confirm the required lead equivalency before any glass is ordered. Lead Glass Pro cannot modify or cancel orders once fabrication begins. Submitting an order based on an assumed equivalency and correcting it afterward requires a full reorder, which restarts the fabrication timeline and incurs additional costs.
Final Thoughts
X-ray glass is leaded by design, and that lead oxide content is what makes it perform in shielded environments where standard glass cannot.
Lead Glass Pro supplies leaded x-ray glass starting at $697, fabricated to Federal Specification DD-G-451 and ASTM C1036 in 3 business days. Stock and custom sizes are available, with single panes up to 96" x 48" and complete lead-lined window systems with factory-installed glass.
Whether you're replacing an existing X-ray window or specifying glass for a new imaging suite, Lead Glass Pro can help you select the correct lead equivalency, fabricate custom sizes in as little as three business days, and provide complete lead-lined window systems ready for installation.
Frequently Asked Questions About Is X-Ray Glass Leaded
Is all the X-ray glass leaded?
Yes. Radiation-safe x-ray glass contains lead oxide distributed uniformly throughout its composition as the active shielding material.
Can leaded X-ray glass be used in a door?
Standard annealed leaded glass cannot. Impact-resistant safety glass compliant with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II is required in door applications.
Does leaded glass affect visibility in imaging rooms?
No. Lead Glass Pro's leaded glass maintains approximately 88% spectral light transmission, preserving clear visibility for clinical workflow.
What lead equivalency does Lead Glass Pro's glass meet?
The standard is 2mm lead equivalency at 150 kVp. Higher equivalencies are available to match any physicist-specified requirement.
How fast does Lead Glass Pro fabricate leaded X-ray glass?
Stock and custom-sized glass are both fabricated in 3 business days. Custom window frames require 3 to 4 weeks.
Who confirms the correct lead equivalency for a room?
A certified radiation physicist, medical health physicist, or qualified county health officer must determine the required equivalency before ordering.
Why does X-ray glass have a yellow hue?
Most leaded X-ray glass has a yellow hue because of its composition. This color is normal and does not significantly affect visibility or clinical observation.
Does leaded glass wear out?
No. Leaded X-ray glass maintains its radiation shielding performance for the life of the product under normal conditions. Unlike coatings or films, the shielding material is incorporated throughout the glass itself.
Can leaded X-ray glass be cut after it is manufactured?
Generally, no. Leaded X-ray glass should be ordered in its final dimensions because cutting or modifying the glass after fabrication is not recommended and can damage the product.
Is leaded glass heavier than regular glass?
Yes. Because of its dense composition, leaded X-ray glass weighs considerably more than standard architectural glass. This additional weight should be considered when selecting frames and planning installation.
