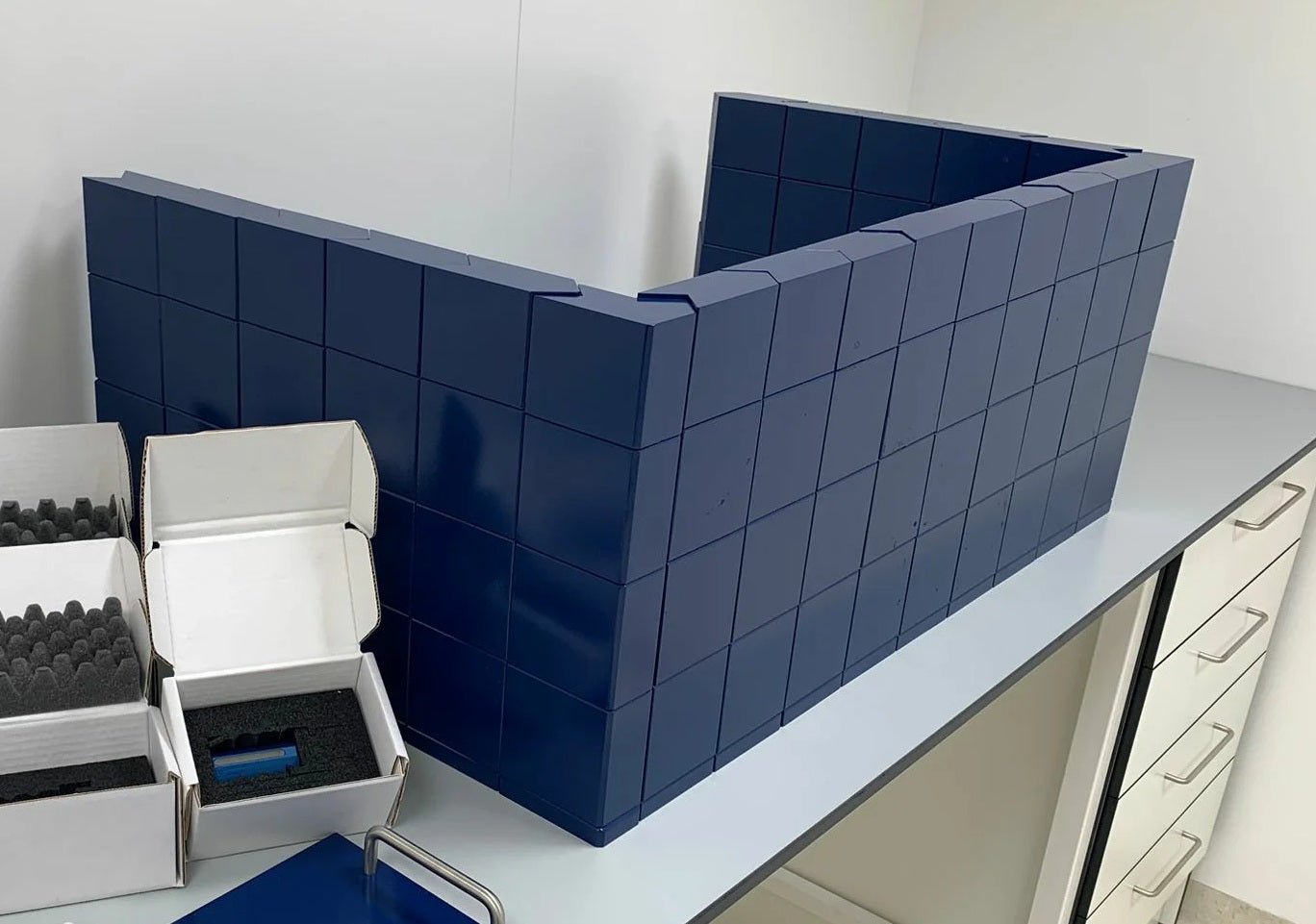

Lead Bricks — Radiation Shielding for Nuclear Medicine, PET, SPECT & Industrial Applications
Lead Glass Pro’s Radiation Shielding Lead Bricks provide high-density, fully customizable protection for environments where precise, modular shielding is required. Designed for medical imaging centers, nuclear medicine departments, radiopharmacies, research laboratories, hot labs, cyclotron facilities, and industrial radiography, these bricks deliver robust attenuation and flexible configuration options.
Their interlocking geometry ensures a tight, gap-free fit, preventing streaming and leakage — a critical requirement for both temporary setups and permanent shielding walls. Whether you’re constructing a full hot-lab barrier, reinforcing an existing vault, or creating a modular shield for radioactive sources, Lead Glass Pro lead bricks offer unmatched protection and reliability.
Key Benefits
-
High-density lead construction for maximum radiation attenuation
-
Interlocking profiles prevent gaps and leakage
-
Modular design — arrange, stack, and configure to any layout
-
Ideal for temporary or permanent shielding structures
-
Compatible with PET, SPECT, dose-prep hot labs, cyclotron rooms, and industrial NDT
-
Optional painted finish available upon request
Available Brick Types (Based on Diagram Positions)
Each brick is designed to integrate with adjacent pieces for a perfect fit. The bricks are 2" thick (50mm)
| Product Code | Description | Weight | Finish |
|---|---|---|---|
| LB-50-BS | Base Start | 1 kg (2.2 lbs) | Standard not painted (painting on request) |
| LB-50-MS | Middle Start | 3.5 kg (7.7 lbs) | |
| LB-50-TS | Top Start | 2.5 kg (5.5 lbs) | |
| LB-50-B | Base Standard | 1.6 kg (3.5 lbs) | |
| LB-50-M | Middle Standard | 5.7 kg (12.6 lbs) | |
| LB-50-T | Top Standard | 4.1 kg (9.0 lbs) | |
| LB-50-BC | Base Corner | 1.6 kg (3.5 lbs) | |
| LB-50-MC | Middle Corner | 5.7 kg (12.6 lbs) | |
| LB-50-TC | Top Corner | 4.1 kg (9.0 lbs) | |
| LB-50-BE | Base End | 1.3 kg (2.9 lbs) | |
| LB-50-ME | Middle End | 5 kg (11.0 lbs) | |
| LB-50-TE | Top End | 3.6 kg (7.9 lbs) |
Finishing: Standard raw lead; painted finishes available on request.
Common Uses
-
Hot lab shielding walls
-
PET & SPECT dose-calibrator alcoves
-
Cyclotron target handling barriers
-
Industrial radiography vault reinforcement
-
Temporary or emergency shielding setups
-
Research lab radioactive source shielding
Lead Chevrons — Interlocking Radiation Shielding Profiles
Lead Glass Pro’s Lead Chevron Shielding Profiles provide a precision-engineered, interlocking solution for constructing radiation-tight barriers around hot labs, imaging rooms, vault doors, gloveboxes, and custom shielding structures.
Their angled geometry ensures a gap-free seal, eliminating the risk of streaming while offering a cleaner and more stable installation compared to flat sheet lead. Available in multiple lead thicknesses and custom lengths, these profiles are the go-to solution for radiation-proof joints, seams, and structural interfaces.
Key Benefits
-
High-density lead for superior attenuation
-
Interlocking chevron design prevents gaps and radiation leakage
-
Ideal for door frames, joints, wall intersections, and custom shielding structures
-
Available in multiple shielding thicknesses
-
Custom lengths and cut angles available
-
Suitable for medical, industrial, and research applications
Specifications
-
Profile Height: 100mm (4")
-
Available Thicknesses:
-
8 mm (0.315" approx 5/16")
-
10mm (0.394" approx 3/8")
-
12mm (0.472" approx 1/2")
-
15mm (0.591" approx 9/16")
-
20mm (0.787" approx 3/4")
-
25mm (0.984" approx 1")
-
-
Cut Options:
-
45° angles
-
90° angles
-
-
Custom lengths available upon request
Common Uses
-
PET/SPECT room shielding construction
-
Hot lab wall intersections
-
Shielded door frames and seams
-
Architectural radiation enclosures
-
Custom R&D shielding fabrication
-
Industrial NDT and isotope-handling facilities
