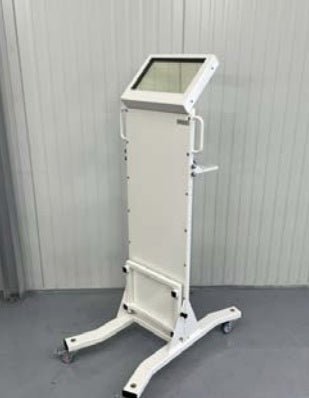

Mobile PET Barriers (MB111, MB112 & MB113)
High-Performance Radiation Protection for PET Imaging Environments
Our Mobile PET Barriers are engineered to deliver reliable, high-level radiation shielding for PET departments, hot labs, radiopharmacies, and nuclear medicine facilities. Designed for environments where exposure to high-energy PET isotopes such as FDG (F-18) is routine, these barriers provide the flexibility, maneuverability, and safety required for modern imaging workflows.
With three shielding options—10 mm, 20 mm, and 30 mm lead—the MB111, MB112, and MB113 models allow facilities to choose the exact level of protection needed while maintaining smooth mobility and excellent visibility through a large integrated lead-glass window.
Engineered for PET Imaging Safety
PET radiopharmaceuticals emit significantly higher-energy radiation than standard SPECT isotopes. These mobile barriers are built specifically for that challenge, offering:
-
High-density lead shielding (10–30 mm depending on the model)
-
Large, clear lead-glass viewing window for maximum visibility
-
Stable, ergonomic design with smooth-rolling casters
-
Hands-free mobility ideal for dynamic environments
-
Comfortable height & working distance to shield technologists during dose administration, patient positioning, and imaging preparation
Model Overview
MB111 – 10 mm Lead Shielding
Ideal for standard PET imaging rooms and general technologist protection. Lightweight compared to higher-shielded models, making it easy to maneuver in tight clinical spaces.
MB112 – 20 mm Lead Shielding
A strong mid-tier barrier offering enhanced protection for facilities handling higher-activity doses or increased patient volume.
MB113 – 30 mm Lead Shielding
Maximum-level radiation protection for PET/CT, cyclotron-adjacent environments, or high-activity FDG operations. Provides the highest attenuation while still maintaining excellent mobility.
Key Benefits
✔ Superior PET Radiation Attenuation
Designed specifically for high-energy PET isotopes where standard X-ray barriers are not sufficient.
✔ Large Lead-Glass Window
Crystal-clear visibility through a thick lead-glass viewing panel allows safe observation without compromising protection.
✔ Smooth Mobility & Compact Footprint
Navigate easily between rooms, scanners, and hot lab areas even in tight clinical spaces.
✔ Durable, Medical-Grade Construction
Built from high-strength materials for long-term use in hospitals, imaging centers, PET clinics, and radiopharmacies.
✔ Protects Staff During:
-
Dose administration
-
FDG injections
-
Patient positioning
-
Hot lab transport
-
Radiopharmaceutical preparation
Technical Specifications
| Model | Lead Thickness | Lead Glass Thickness | Lead Glass Size | Lead Glass Density | Outside Dimensions | Shielding Area | Weight |
|---|---|---|---|---|---|---|---|
| MB111 | 3/8" (10mm) | 1.08" (27.5mm) | 11-1/2"x8-5/8" (294×220mm) | 4.77 g/cm³ | 23-3/4"x38-3/4"x65-1/4" (603×984×1658mm) | 16-1/2"x57-1/4" (418×1454mm) | 322# (146kg) |
| MB112 | 3/4" (20mm) | 2.16" (55mm) | 11-1/2"x8-5/8" (294×220mm) | 4.77 g/cm³ | 23-3/4"x38-3/4"x66" (603×984×1677mm) | 16-1/2"x58" (418×1474mm) | 485# (220kg) |
| MB113 | 1-1/8" (30mm) | 3.24" (82.5mm) | 11-1/2"x8-5/8" (294×220mm) | 4.77 g/cm³ | 23-3/4"x38-3/4"x67" (623×984×170 mm) | 16-1/2"x59" (418×1500mm) | 657# (298kg) |
Ideal For
-
PET/CT Imaging Centers
-
Radiopharmacies
-
Nuclear Medicine Departments
-
Shielded Injection Rooms
-
Mobile PET Units
-
High-activity FDG operations
Why Choose Lead Glass Pro Mobile PET Barriers?
As a leading provider of radiation shielding products, Lead Glass Pro provides premium PET shielding solutions trusted worldwide. From fast lead times to unmatched build quality, our PET barriers deliver top-tier radiation protection, superior visibility, and long-term reliability.
