Fire Rated Insulated Glass Units (IGUs)

Advanced Glazing Solutions for Life Safety, Security & Thermal Efficiency

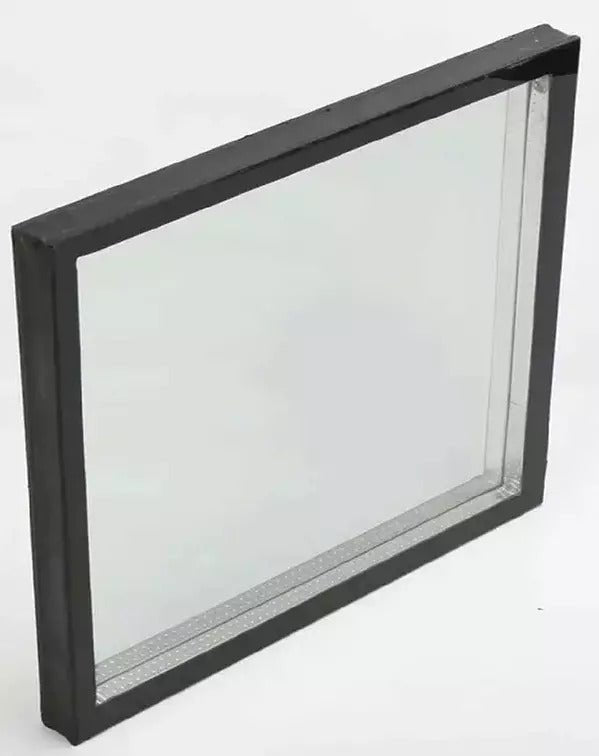

What Are Fire Rated Insulated Glass Units?

Fire Rated Insulated Glass Units (IGUs) combine the energy efficiency of insulated glazing with the critical life-safety protection of fire-rated glass. These units are designed to withstand extreme heat, contain flames and smoke, and meet stringent building code requirements — all while offering thermal insulation, optional privacy, radiation shielding, and even bullet resistance.

At Lead Glass Pro, we specialize in custom FireLite® IGUs, using fire-rated, wire-free ceramic glass combined with a secondary pane tailored to your project needs. Our units are tested, certified, and built for performance in fire-rated walls, doors, and partitions.

• 1" Thick Overall
• X-Ray Lead Glass + Spacer + Fire-Rated Glass
• Optional Window Frames for Walls or Doors

Key Benefits

• 1/16" (4#) Lead Equivalency - Radiation Shielding for X-Ray Rooms
• Fire Ratings Up to 180 Minutes
  Tested to withstand up to 3 hours of fire exposure in temperature-rise doors and up to 90 minutes in rated walls. All units pass Hose Stream and Positive Pressure tests.
• Thermal Insulation
  Multi-pane construction reduces heat transfer, contributing to energy savings and improved building performance.
• Impact & Safety Rated
  Available with ANSI Z97.1 and CPSC 16 CFR 1201 Category I & II safety ratings.
• Multi-Functional Glass Options
  Integrate privacy, bullet resistance, radiation protection, and more — all in a single unit.

FireLite IGU Specifications

• Standard Thickness: 1" overall (varies by configuration)

• Available Fire Ratings: 20, 45, 60, 90, 120, 180 minutes

• Maximum Sizes:

  • 90-minute walls: Up to 2,627 in² (max height/width: 56.5")

  • 45/60-minute walls: Up to 3,325 in²

  • 180-minute doors: 100 in² max exposed glass area

• Labeling: Permanently marked with fire rating and safety compliance

• Meets or Exceeds: UL 10C, UL 9, UBC 7-2/7-4, NFPA 80/252/257, CAN4, CSFM, and more

• Approved In: NYC (MEA 290-90-M-6) and Los Angeles (LARR 25798)

Optional Secondary Pane Configurations

Enhance your Fire Rated IGU with functional glass types, including:

• X-Ray Leaded Glass (Up to 1/16" lead equivalency or higher)

• Bullet Resistant Glass (Up to UL 752 Level 3 with 2-hour fire rating)

• One-Way Mirror (Visual privacy from one side only)

• Frosted or Acid-Etched Glass (Two-way privacy)

• Clear Tempered Safety Glass

• Laminated or Safety Filmed Glass (FireLite Plus / FireLite NT)

• More options available upon request

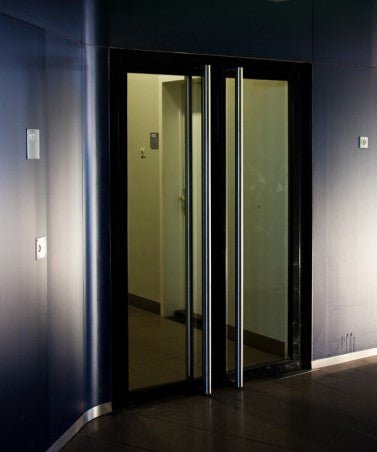

Fire Rated IGUs for Doors

• Non-Temperature Rise Doors:

  • FireLite NT or FireLite Plus

  • Ratings: 20, 45, 60, 90 minutes

  • Max exposed glass:

    • 20–60 min: 36" x 89"

    • 90 min: 36" x 56.5"

• Temperature Rise Doors:

  • Up to 180-minute fire rating

  • Max exposed glass area: 100 in²

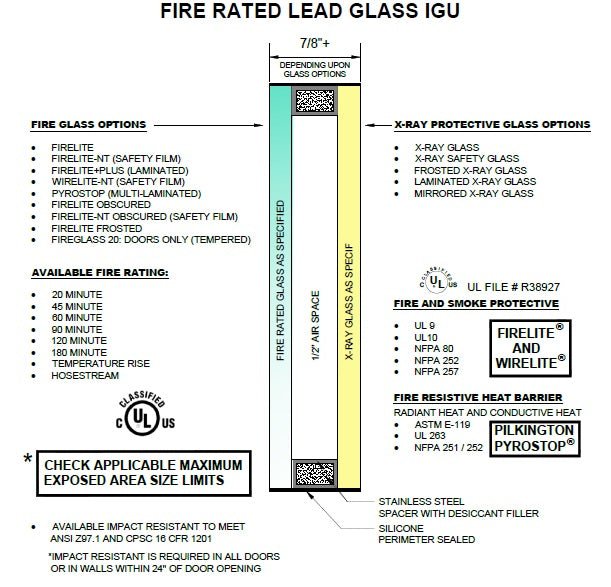

Fire Rated Lead X-Ray Glass IGUs

Combine radiation shielding and fire protection in one certified glass unit. Our lead-lined fire rated IGUs are available with:

• Lead Equivalency: 1/16" standard (custom levels available)

• Overall Thickness: 1"+ depending on configuration

• Weight: Approx. 12+ lbs/sq.ft.

• Maximum Size: 96" x 48" (subject to rating and code limits)

• Matching Fire Rated Frames Available

Certifications & Approvals

All Fire Rated IGUs are tested and certified to meet or exceed:

• UL 9, UL 10B, UL 10C

• NFPA 80, NFPA 252, NFPA 257

• UBC 43.4, UBC 7-2, UBC 7-4

• CAN/ULC S-104, S-106

• CSFM 43.7

• NYC MEA 290-90-M-6, LARR 25798

Applications

• Hospitals & Imaging Suites

• Laboratories & Cleanrooms

• Fire-Rated Doors & Partitions

• Secure Facilities (Bullet & Blast Resistance)

• Schools, Government & Commercial Buildings

• Privacy Applications (One-way or frosted glass)

Request a Quote or Contact Us

Looking for certified fire rated insulated glass units that meet complex performance standards? We’ll help you design the ideal IGU for your application — including lead shielding, bullet resistance, privacy, and more.

📧 Email: sales@leadglasspro.com
📞 Call Us: 800-506-9972
🔗 Request a Quote Online

Protect People. Meet Code. Simplify Installation.
Choose Lead Glass Pro for Custom Fire Rated Insulated Glass Units.
