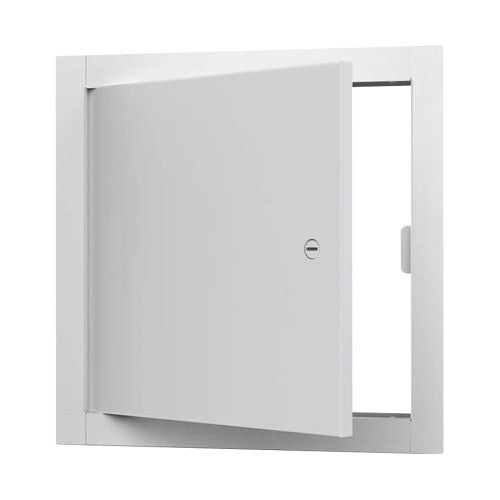

Lead-Lined Access Panel Door
Shielded Access Panels for Walls & Ceilings in Imaging Rooms
Built for Safety. Designed for Access.
Our lead-lined access panel doors are engineered to maintain continuous radiation shielding while providing easy access to interstitial spaces in medical imaging rooms, x-ray facilities, or any environment requiring radiation protection. Whether installed in walls or ceilings, these panels deliver strong, long-lasting protection with seamless integration into your shielding design.
In Stock & Ships Fast
-
⚡ Standard Sizes Ship in 3 Days
-
📏 30+ Additional Sizes Available – Ship within 7 days
-
🚚 Free Shipping on All Orders
-
📦 Custom sizes and fire-rated options available on request
Product Specifications
| Feature | Description |
|---|---|
| Material | 16-gauge galvannealed steel – rust-resistant and durable |
| Lead Shielding | Internally lined with 1/16" (4# / 1.6mm) thick lead |
| Finish | White, rust-inhibitive prime coat |
| Latch | Screwdriver-operated for secure closure |
| Hinge | Concealed continuous hinge for clean design and smooth function |
| Frame | One-piece, 1" wide – conceals rough opening, with 1/4" pre-drilled holes |
| Installation | Fits rough openings ½" larger than listed size (e.g., 24" x 24" panel fits 24 ½" x 24 ½" opening) |
| Fire-Rated Option | Available upon request |
| Custom Lead Thicknesses | Available by request (Call or email for quote) |
Available Sizes
| Nominal Door Size (W x H) | Latches | Weight |
|---|---|---|
| 6" x 6" | 1 | 3 LBS. |
| 8" x 8" | 1 | 3 LBS. |
| 8" x 12" | 1 | 4 LBS. |
| 10" x 10" | 1 | 4 LBS. |
| 12" x 12" | 1 | 5.5 LBS. |
| 12" x 16" | 1 | 6 LBS. |
| 12" x 18" | 2 | 6.5 LBS |
| 12" x 24" | 2 | 9.5 LBS. |
| 14" x 14" | 1 | 6 LBS. |
| 14" x 24" | 2 | 15 LBS. |
| 15" x 15" | 1 | 6.5 LBS. |
| 16" x 16" | 1 | 7.5 LBS. |
| 16" x 20" | 2 | 8.5 LBS |
| 16" x 24" | 2 | 10 LBS. |
| 18" x 18" | 3 | 9 LBS. |
| 18" x 24" | 5 | 12 LBS. |
| 18" x 36" | 3 | 16 LBS. |
| 20" x 20" | 3 | 11 LBS. |
| 20" x 24" | 3 | 13 LBS. |
| 20" x 30" | 5 | 15 LBS. |
| 22" x 22" | 3 | 12 LBS. |
| 22" x 30" | 3 | 16 LBS. |
| 22" x 36" | 6 | 22 LBS. |
| 24" x 24" | 3 | 15 LBS. |
| 24" x 30" | 6 | 17 LBS. |
| 24" x 36" | 5 | 20.5 LBS. |
| 24" x 48" | 7 | 28 LBS. |
| 30" x 30" | 7 | 21.5 LBS. |
| 30" x 36" | 7 | 29 LBS. |
| 32" x 32" | 7 | 23 LBS. |
| 36" x 36" | 8 | 31.5 LBS. |
| 36" x 48" | 9 | 42 LBS. |
| 48" x 48" | 11 | 58 LBS. |
Why Choose Our Lead-Lined Access Panels?
Continuous Radiation Protection
Each panel is internally shielded with 1/16” thick lead, providing protection from harmful radiation in compliance with healthcare and imaging room standards. Ideal for x-ray rooms, cath labs, CT scan suites, and nuclear medicine environments.
🔧 Easy Installation
With a one-piece frame, pre-drilled holes, and clearly defined rough opening specs, these panels install quickly and securely—saving your team time and reducing construction delays.
🧼 Durable & Clean
Made from galvannealed steel, each panel resists rust and wear. The white rust-inhibitive coating makes the surface easy to clean and maintain in sterile or high-traffic environments.
🔐 Discreet & Secure
The concealed hinge keeps the door flush and professional-looking, while the screwdriver latch ensures access is restricted to authorized personnel only.
Versatile Applications
Our lead-lined access panels are trusted by:
-
Hospitals & Imaging Centers
-
Dental and Orthopedic Clinics
-
Radiation Therapy Suites
-
Veterinary X-Ray Rooms
-
Industrial NDT (Non-Destructive Testing) Facilities
-
Government, Military, and Secure Labs
Custom Options Available
Need a different lead thickness or a fire-rated version? We can build to your specifications. Just give us a call at (800) 506-9972 or email sales@leadglasspro.com for a fast, personalized quote.
📞 Have Questions or Need Help Ordering?
Our shielding experts are ready to assist. Contact us for custom sizes, volume pricing, or technical guidance.
