Lead Lined Frame with X-Ray Glass Windows
We can provide lead frames with x-ray glass for your project-specific requirements. Select from over 40 different standard sizes or request a quote for custom sizes or lead thicknesses.
Our 2-piece window frame is internally lead lined to prevent exposed lead. The telescopic window frame can adjust to fit 4-1/4" to 8" thick walls.
All the x-ray lead glass and window frames listed here meet 2mm lead equivalency based @ 150kvp. The glass is factory set into our radiation shielded window frames. While this is the most common lead equivalency for general X-Ray rooms used by doctors, dentists, chiropractors, and medical centers; you will still need to check with your local health official or radiation physicist to determine the required lead shielding for your room.
- Ships in 4 business days.
- Lead Glass and Lead Lined Window Frame purchases include free shipping
- Standard size window frames comes with a primer finish, ready to paint.
- Our window frames adjust to fit any wall thickness between 4.25" to 8"
- Your rough opening size will be 1" over the order size (ex: 24" x 24" will have a 25" x 25" rough opening)
- The visible glass size is approx. 1-1/4" under order size (ex: 24" x 24" will have a 22-3/4" x 22-3/4" visible glass size)
- The outside dimensions of the frame is 4-1/2" larger than the order size (ex: 24" x 24" will have a 28-1/2" x 28-1/2" O.D.)
Our lead glass meets Federal Specification DD-G-451, ASTM C1036, NCRP Report #49, NCRP Report #147, and ICRP lead glass criteria and standards
Impact resistant X-Ray safety glass is available upon request and is permanently labeled as safety glass in compliance with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT I for impact resistance.
Laminated Lead glass is available upon request and meets ANSI Z97.1, CPSC 16 CFR 1201, and ASTM C1172
If your project requires more than one window, a custom size, or a different lead equivalency, please email us at email@example.com for a formal quote with a shipping rate to your delivery address.
Lead Windows and Lead Lined Frames
Protecting You Against Radiation

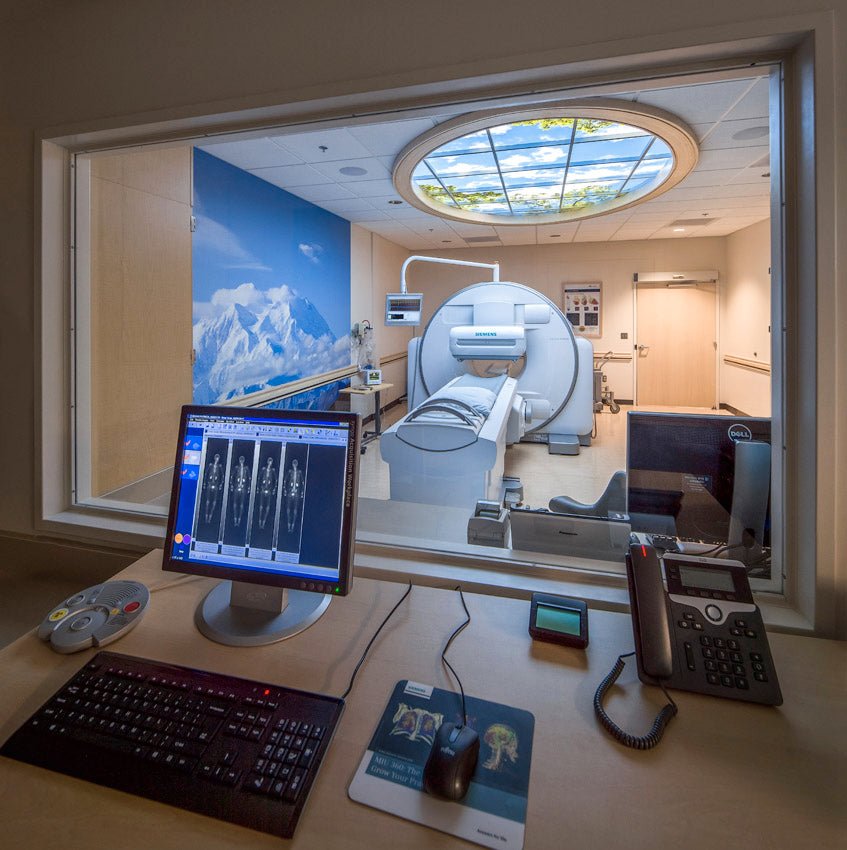

Radiation shielding lead glass is installed in x-ray room windows to help protect against radiation exposure while allowing optimal visibility into the room while procedures are being performed. This is vital to ensure that medical personnel are kept safe from harmful radiation. Lead glass is also used in other applications where radiation is present, such as in nuclear medicine. In these cases, lead glass is used to shield against gamma rays, which are even more penetrating than x-rays. Lead lined frames are also an essential component of radiation shielding, as they help to ensure that the lead glass is firmly mounted in place and that no radiation is passing through the frame.
Why Protection from Radiation is Important
Of course, we all know that too much exposure to radiation can be dangerous. But what many people don’t realize is that even small amounts of radiation exposure can add up over time and lead to health problems. That’s why it’s so important to make sure that you are protected from radiation with lead glass and lead lined frames whenever you are in a situation where there is a potential for exposure. X-rays produce ionizing radiation, which can damage cells in your body and lead to a wide range of serious health problems.
How Do Lead Windows Protect Against Radiation?
Lead glass is an excellent material for radiation shielding because it is dense and absorbs a high percentage of radiation that passes through it. The lead in the glass helps to block x-rays and other types of ionizing radiation. The electrons in lead atoms are very tightly bound, which makes it difficult for x-rays to penetrate the material. When x-rays do pass through lead glass, they are scattered and absorbed, which reduces the amount of radiation that is able to reach you.
Our frames are a two-piece telescoping frame, made from 16 gauge galvanealled steel and come with a primer finish, ready to paint. Extruded aluminum frames cannot be properly lead lined
How is Lead Glass for an X-Ray Window Made?
Leaded glass is made by adding lead oxide to molten glass, which gives it its characteristic heavy weight and high density. This makes it an ideal material for radiation shielding, as it is able to block a large amount of radiation. Lead glass x-ray windows are typically much thicker than regular glass windows, as they need to be able to block a higher level of radiation.
How Much Protection Does Lead Glass Provide?
The amount of protection provided by lead glass varies depending on the type of glass and the thickness of the material. At the correct lead equivalency for your projects requirements, lead glass is able to block all the radiation, based on the thickness and density of the glass. The lead works to attenuate, or reduce, the amount of radiation that is able to pass through the x-ray window. Lead is a dense metal that absorbs X-rays and other forms of radiation, so lead lined frames can help to block the radiation that would easily pass through a regular window.
How to Choose Lead Windows and Lead Lined Frames
There are a few things to consider when choosing radiation shielding lead lined window frames for an x-ray room. The type of radiation exposure, the frequency of exposure, and the distance from the source of radiation are all important factors to consider.
Lead equivalency is a measure of how effective a material is at attenuating, or reducing, x-rays. The higher the lead equivalency, the more protective the material is. You will need to check with your local health official or radiation physicist to determine the required lead shielding for your room. Glass layering can increase lead equivalency, and the provider you choose should be able to offer a range of lead equivalencies for your lead window.
Size of Your Lead Window
The next thing to consider is the size of the lead glass window. Lead windows come in a variety of sizes, so you will need to make sure that you choose a size that is appropriate for your needs. The last thing you want is to have a window that is too large, doesn’t provide adequate protection, or one that is too small and obstructs your view.
Different Lead Lined Frames
There are a number of different custom frame options that you might consider. For example, 45-degree splayed lead lined frames allow for a wider field of view, which can be important in specific medical procedures. Telescopic view lead lined frames can be helpful if you need a quick installation in a finished wall. Vertical center mullions are suitable for extremely wide windows and vertical lead shielded T-joints can be used to reduced any obstructions.
Other Custom Considerations for Your Lead Windows
You might also need to consider other custom options for your lead glass windows. We also offer impact-resistant x-ray safety glass windows to help protect them from damage. Slated lead glass can also be an option for rooms that have high surface reflection. Bottom voice passage baffle will allow for enhanced communication between medical personnel and the individual in the x-ray room.
Lead Glass Pro windows can be installed in 10 minutes!
Unlike other lead glass providers, our lead windows are fitted after the drywall is hung. This allows precise measurements and ensure that your leaded window will fit perfectly into your space. We provide detailed instructions on the installation of your lead window and lead lined frames according to industry best practices. Our expertise and years of hands-on experience has allowed us the to design a lead window that can be installed by anyone in just 10 minutes, avoiding unnecessary disruption to your business.
Maintaining Your Lead Glass Windows
It is important to maintain your lead glass windows to ensure that they continue to provide adequate protection against radiation. You should have your lead windows checked regularly by a qualified professional to make sure that they are in good condition. You should also take care to avoid damage to the lead glass, as this can reduce its effectiveness. Adding an impact resistant film to your x-ray window, as well as regular cleaning and maintenance, can help to extend the life of your window and keep it looking good for years to come.
Lead Glass Pro's Lead Windows and Lead Lined Frames
Lead Glass Pro is a leading specialist in lead glass for lead windows and lead lined frames. We offer a wide range of lead equivalencies and sizes to meet your needs, as well as a variety of custom frame options. Our team can help you choose the right lead glass window for your needs and provide instructions to install it correctly to ensure optimal protection against radiation.
All manufacturing is quality controlled to meet today’s demanding legislation and NCRP guidelines, giving you total confidence and peace of mind while delivering outstanding performance. We are continuously developing our product range to meet the needs of our clients.
Lead Glass Pro's Lead Window Sizes and Lead Equivalency
We have over 40 different standard lead window sizes for you to choose from, allowing you to find the perfect window for your needs. Our lead windows are internally lead lines so there will be no lead exposed. Our standard lead equivalencies for lead windows and lead lines frames meet 2mm lead equivalency based @ 150kvp. This means that our lead windows will protect you from up to 150 kvp x-rays. While 2mm lead equivalency based @ 150kvp is the most common lead equivalency for general x-ray windows that are used by chiropractors, dentists, doctors, medical centers, and veterinarians, you are encouraged to check with your local health official or radiation physicist to ensure that this lead equivalency will meet your needs. If you require a higher lead equivalency, you are always welcome to contact us to request a custom quote.
Lead Glass Pro's Lead Windows Advanced Privacy and Safety Features
Impact resistant X-Ray safety glass is available upon request and is permanently labeled as safety glass in compliance with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT I for impact resistance. We are also able to supply lead glass with internal mini blinds to ensure that you remain compliant with federal HIPAA privacy requirements, if necessary. For high-risk applications such as jail or prison x-ray windows, we also provide heavier gauge steel construction with abuse and impact-resistant glass set in place with tamper-resistant fasteners.
Lead Glass Pro's Lead Lined Frames
Our standard size lead lines frames come with a primer finish and they are ready to be painted. We offer a wide variety of custom lead lined frame options including telescopic view lead lined frames, vertical center mullions, vertical T-joints, bottom voice passage baffle, and a range of other customizations and features to meet your specific needs.
Lead Glass Pro's Lead Window Measurements
Our lead windows are adjustable for walls from 4.25'' up to 8'' thick. Your rough opening size will be 1'' over the order size. For example, a 24'' x 24'' lead window will have a rough opening of 25'' x 25''. The visible lead glass will be about 1-1/4" under your lead window order size. For example, a 24'' x 24'' lead window will have a 22-3/4" x 22-3/4" visible lead glass size. It is important to note that a forklift is required for offloading sizes larger than 24" x 24".
Obtain a custom quote with the click of a button!
Lead Glass Pro's Lead Windows and Lead Lined Frames Shipping
While some lead window providers take up to 6 weeks to ship your lead windows, Lead Glass Pro ships most stock size lead windows and lead lined frames in just 4 days. This is exponentially faster than the industry average, allowing you to get your lead windows installed and start protecting yourself from radiation as soon as possible. We understand the importance of lead windows in medical settings, which is why we offer such quick turnaround times. Our installation process still remains meticulously precise and our lead windows promise superior quality. The prices of our lead windows and lead lines frames all include shipping so there are no hidden costs involved in the process.
Lead Glass Pro's Quality and Safety
At Lead Glass Pro, we understand the importance of safety in x-ray rooms. This is why we only use the highest quality materials and our team is expertly trained to ensure the best possible results. This also means that we will expect some basic protocols to be in place so that your lead window order and installation is executed seamlessly.
Customer must verify lead equivalency meets the shielding requirements of the room
All radiation shielding calculations must be determined by a radiation physicist.
Payment will be required to begin fabrication.
Once fabrication begins, no cancellations or changes may take place
By placing this order and paying you accept and have verified sizes, quantities, lead equivalency, and accept the terms for shipping / receiving and returns / replacement.
All products must be inspected upon delivery in the presence of the delivery driver. Once the product is received and the delivery receipt is signed, no claims for damage will be entertained. If there is damage, note it on the delivery receipt and contact us immediately.
- Our products can only ship to a commercial address. We cannot ship to residential addresses.
- A forklift is required for offloading
Lead Glass Pro's Custom Quotes
We understand that every project is different, which is why we offer custom quotes. This allows you to get the perfect lead window for your needs without overspending. If your project requires more than one window, a custom size, or a different lead equivalency, please contact our team for a formal quote with a shipping rate to your delivery address.
Contact Us Today!
For more information about our lead windows and how we can help you create a safe x-ray room, contact us today. Our team of specialists would be happy to answer any questions you may have and provide a custom quote for your lead windows and lead lined frames.
