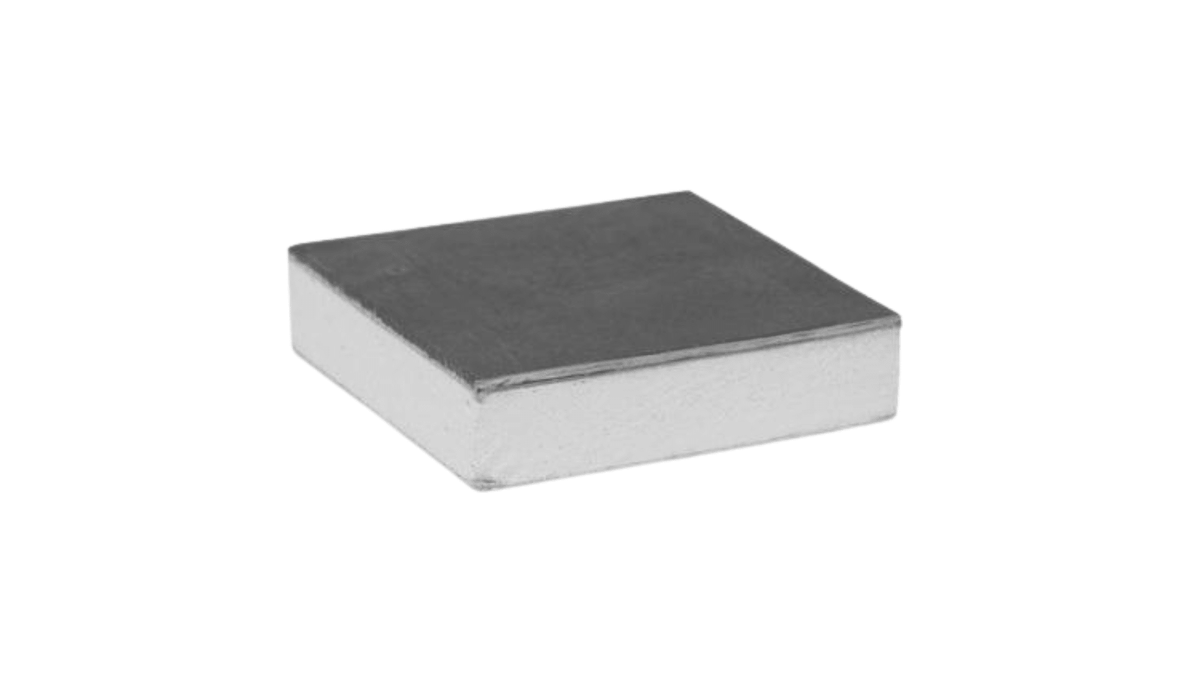

Lead-Lined Drywall Thickness Guide: 1/32", 1/16", 1/8" — Which Do You Need?

Key Takeaways:

• Thickness Is A Physicist's Call: No drywall thickness should be selected without a confirmed lead equivalency calculation from a certified radiation physicist.
• 1/16" Is A Common Middle-Ground Thickness: It sits between the lightest and heaviest standard options and covers many general diagnostic imaging room requirements.
• Screw Head Coverage Changes At 1/16": Panels thicker than 1/16" require lead disc coverage over every screw head; panels at 1/16" and thinner do not.

Picking a lead-lined drywall thickness without a physicist's report is the fastest way to fail an inspection and restart the material order from scratch.

At Lead Glass Pro, we supply 1/16 lead-lined drywall and 10 other standard thickness options, all fabricated in 3 days and starting at $266. Every panel ships with batten strips and lead discs included. We manufacture directly, which means no middlemen between the specification and the delivered product.

This article explains what each thickness designation means, how the physicist's calculation points to the correct one, and the changes in installation requirements as thickness increases.

What The Thickness Designations Actually Represent

Lead-lined drywall thickness refers to the thickness of the lead sheet bonded to the back of the panel, not the overall panel thickness. Understanding this distinction prevents ordering errors that require full reorders to correct.

Inch Measurement vs. Pound Designation

Lead sheet thickness is expressed in two ways: as a fractional inch measurement and as a pound-per-square-foot weight designation. A 1/16" lead sheet weighs approximately 4 pounds per square foot. A 1/32" sheet weighs approximately 2 pounds per square foot. Both expressions describe the same physical lead sheet; the pound designation reflects how much a one-square-foot section of that thickness weighs.

The Full-Thickness Range Available

Lead Glass Pro's 1/16 lead-backed drywall sits near the middle of the available range. The full range spans 11 standard thicknesses from 1/64" up to 1/4". Each step in the range represents a measurable increase in lead mass, panel weight, and radiation attenuation. The physicist's report identifies the specific thickness required for each room and opening based on the equipment and occupancy involved.

The Standard Gypsum Board Behind The Lead

Every lead thickness option is bonded to a standard 4ft x 8ft gypsum board. The default substrate is 5/8" fire-rated sheetrock. Half-inch non-rated board is available on request. The gypsum board dimension is 4ft x 8ft, and the bonded lead sheet measures 4ft x 7ft to account for installation clearances at the floor. The lead sheet dimension is consistent across all thickness options. We also supply option board and lead heights up to 12’ high.

Standard panels are manufactured using 5/8-inch Type X gypsum board. Half-inch non-rated gypsum, mold-resistant board, and abuse-resistant panels are also available to meet specific project requirements.

Why Thickness Cannot Be Assumed

The required lead thickness depends on equipment type, kilovoltage, workload, use factor, occupancy of adjacent spaces, and distance from the radiation source. Changing any one of these variables changes the required equivalency. Defaulting to a common thickness based on facility type or a previous project, without recalculating for the current room, creates compliance risk that becomes apparent at inspection.

How The Physicist's Calculation Points To The Right Thickness

Every thickness decision traces back to one source. No product specification, supplier recommendation, or general standard replaces this step.

Who Performs The Calculation

A radiation physicist, medical health physicist, or county health officer certified by the American Board of Radiology, American Board of Health Physics, or the Canadian College of Physicists in Medicine must determine the required lead equivalency. This determination must be complete before any drywall is specified or ordered. Lead Glass Pro cannot modify or cancel orders once fabrication begins, which is why the physicist's confirmed report must precede the order.

What The Report Specifies

The physicist's report identifies the required lead equivalency in millimeters of lead for each shielded surface in the room. That millimeter figure corresponds directly to a specific lead sheet thickness. For example, 1.6mm lead equivalency corresponds to approximately 1/16" lead sheet thickness. The report is the binding document that governs the order.

Confirming The Thickness Before Ordering

All lead equivalency calculations must be verified by the customer before placing an order. Once fabrication begins, changes cannot be accommodated. Submitting the physicist's confirmed thickness alongside accurate field dimensions at the time of order is the most direct path to a compliant installation without rework. For additional context on this process, How Lead Equivalency Works in Radiation Shielding provides a detailed overview of the underlying calculation framework.

Always verify with the project radiation physicist.

Where Each Thickness Level Commonly Gets Specified

While the physicist's report always determines the final specification, certain thicknesses are more commonly used in specific types of facilities. These patterns reflect common specification outcomes, not fixed rules.

• 1/32" (2#): Typically specified in lower-exposure environments with minimal workload and favorable room geometry conditions
• 1/16" (4#): A common specification for general medical x-ray rooms, dental operatories, and chiropractic offices with standard diagnostic equipment; 1/16 lead drywall covers a wide range of outpatient clinical settings
• 1/8" (8#): More commonly required in higher-workload imaging environments or rooms with less favorable occupancy conditions adjacent to the shielded wall
• 3/16" And Above: Generally associated with CT suites, fluoroscopy rooms, and other environments where equipment energy levels and workload push the required equivalency beyond standard diagnostic ranges
• 1/4" (16#): The upper end of the lead-backed drywall range, reserved for the highest equivalency requirements within the product's available thickness options

The consequences of getting this wrong are covered in practical terms in What Happens if Radiation Shielding Has Gaps, which is worth reviewing before the specification is finalized.

Ordering The Right Thickness Without Second-Guessing The Spec

Once the physicist's report is confirmed, the ordering process is straightforward. These are the details that determine whether the order arrives ready to install.

Screw Head Coverage Requirements By Thickness

For 1/16 lead-lined sheetrock and thinner panels, the NCRP allows no additional shielding over screw heads because the screw itself provides sufficient attenuation. For panels thicker than 1/16", each screw head must be covered with a lead disc after fastening. Lead Glass Pro includes 50 lead discs with every panel to cover this requirement. The purpose of the lead disc is to restore shielding continuity over the fastener location. Without the disc, the screw penetration could create a localized reduction in shielding where thicker lead is required.  This distinction affects how installation is sequenced and should be understood before panels go up.

Batten Strip Requirements Across All Thicknesses

Every vertical joint between adjacent panels must be covered with a lead batten strip, regardless of the specified lead thickness. This requirement applies to 1/16 lead wallboard and every other thickness in the range. Each Lead Glass Pro panel includes one 2" wide vertical batten strip for this purpose. Missing or misplaced batten strips are a direct inspection failure at any thickness level.

Why Joint Treatment Matters

Radiation shielding is only as effective as its weakest point. Every joint, fastener, penetration, and transition must maintain continuous lead protection.

Lead Glass Pro includes matching lead batten strips with every panel to maintain shielding continuity at vertical joints. For higher shielding requirements, our overlapping panel systems are designed to simplify installation while helping maintain continuous protection throughout the wall assembly.

Vertical Installation Across All Thicknesses

1/16 lead-backed drywall and every other thickness option must be installed vertically. Horizontal installation is not compliant with NCRP standards and will result in an inspection failure. Vertical orientation aligns the panel with the required shielding height of 7 feet above the finished floor and ensures the lead sheet covers the correct portion of the wall assembly. The full installation sequence for compliant wall assembly is covered in Lead-Lined Sheetrock Installation.

Final Thoughts

Lead-lined drywall thickness is not a judgment call made at the point of order. It is a confirmed figure that comes from a qualified physicist and governs every material decision that follows.

Lead Glass Pro supplies 11 standard lead thicknesses from 1/64" up to 1/4", all fabricated in 3 days and starting at $266 per panel. Every order ships with batten strips and lead discs included for compliant installation, delivered to the job site within a week.

If your project has a confirmed physicist's specification and is ready for materials, reach out to the Lead Glass Pro team.

Frequently Asked Questions About Lead-Lined Drywall

Does panel thickness affect the gypsum board behind the lead?

Yes, any lead thickness over ⅛” (8#) will require lead backed plywood instead of lead backed drywall due to the weight.

What happens if the wrong lead thickness is ordered?

A full reorder is required. Lead Glass Pro cannot modify orders once fabrication begins, making pre-order confirmation essential.

Is 1/16" the most commonly specified drywall thickness?

It covers a wide range of general diagnostic imaging rooms, but the physicist's shielding report determines the correct thickness for each project.

Do thinner panels still require batten strips at vertical joints?

Yes. Batten strips are required at every vertical joint regardless of lead thickness. This applies across all lead thickness options.

Can a half-inch gypsum board be substituted for the standard 5/8" board?

Yes. Half-inch non-rated board is available on request for projects where the standard fire-rated substrate is not required.

What is the maximum lead thickness available on lead-backed drywall?

Lead Glass Pro's lead-backed drywall is available up to 1/4" lead thickness across its 11 standard options.

Does Lead Glass Pro fabricate custom lead thicknesses for drywall?

Yes, the standard product range covers 11 standard thicknesses, but we can produce lead up to 2” thick. Contact Lead Glass Pro directly to confirm availability for any thickness outside this range.

What does 4-pound lead drywall mean?

A 4-pound lead-lined drywall panel contains approximately 1/16-inch thick lead sheet bonded to the back of the gypsum board. The "4-pound" designation refers to the weight of the lead per square foot.

Is 1/16-inch lead drywall the same as 1.6mm lead?

Approximately. A 1/16-inch lead sheet converts to about 1.6mm lead equivalency.

Can lead-lined drywall be cut on site?

Yes. Panels can be cut using standard drywall tools, but installers must maintain shielding continuity at joints, penetrations, and fasteners according to the project specifications and applicable radiation shielding standards.

Why is the lead sheet only 7 feet tall?

Most diagnostic imaging rooms require radiation shielding to a height of 7 feet above the finished floor. This standard allows the lead sheet to terminate below the ceiling while reducing unnecessary material. Always follow the project shielding report if different heights are specified.
