How Lead Equivalency Works in Radiation Shielding
Lead equivalency is one of the most important concepts in radiation shielding—but also one of the most misunderstood. It determines how effectively a material, such as lead glass or lead-lined drywall, can block or attenuate X-ray radiation.
Whether you're an architect, contractor, or Radiation Safety Officer (RSO), understanding how lead equivalency works is essential for proper shielding design and compliance with standards like NCRP Report No. 147.
For installation examples and system walkthroughs, you can also view our video resources here:
👉 https://leadglasspro.com/pages/videos
What Is Lead Equivalency (mm Pb)?
Lead equivalency is a measurement that describes how much radiation shielding a material provides compared to pure lead.
It is expressed in millimeters of lead (mm Pb).
For example:
- 1.0 mm Pb = shielding equivalent to 1 mm of solid lead
- 2.0 mm Pb = twice the shielding capability of 1.0 mm Pb
This rating allows different materials (like lead glass, gypsum board, or composite panels) to be compared using a common standard.
How Lead Equivalency Actually Works
X-ray radiation is reduced as it passes through material through a process called attenuation.
The higher the density and atomic number of the material, the more radiation it absorbs or blocks.
Key principle:
- More dense material = more attenuation
- Thicker material = more shielding
- Higher lead equivalency = greater protection
Energy Levels and Why They Matter
Not all X-rays are the same. Radiation energy is typically measured in kilovolts peak (kVp), and higher energy beams require more shielding.
Low Energy (Dental / Mammography)
- Lower kVp levels
- Less penetrating radiation
- Lower lead equivalency requirements
Medium Energy (General Radiography)
- Standard hospital X-ray systems
- Moderate penetration
- Typical shielding: 1.5 – 2.0 mm Pb
High Energy (CT / Fluoroscopy)
- High kVp outputs
- Greater penetration power
- Higher shielding: 2.0 – 3.0 mm Pb or more
As energy increases, required shielding increases significantly.
Attenuation Basics (Simple Explanation)
Attenuation is the reduction of radiation intensity as it passes through a material.
Three things happen when X-rays hit shielding material:
- Some radiation is absorbed
- Some is scattered
- Some is transmitted (what gets through)
The goal of shielding design is to reduce transmitted radiation to safe, regulated levels.

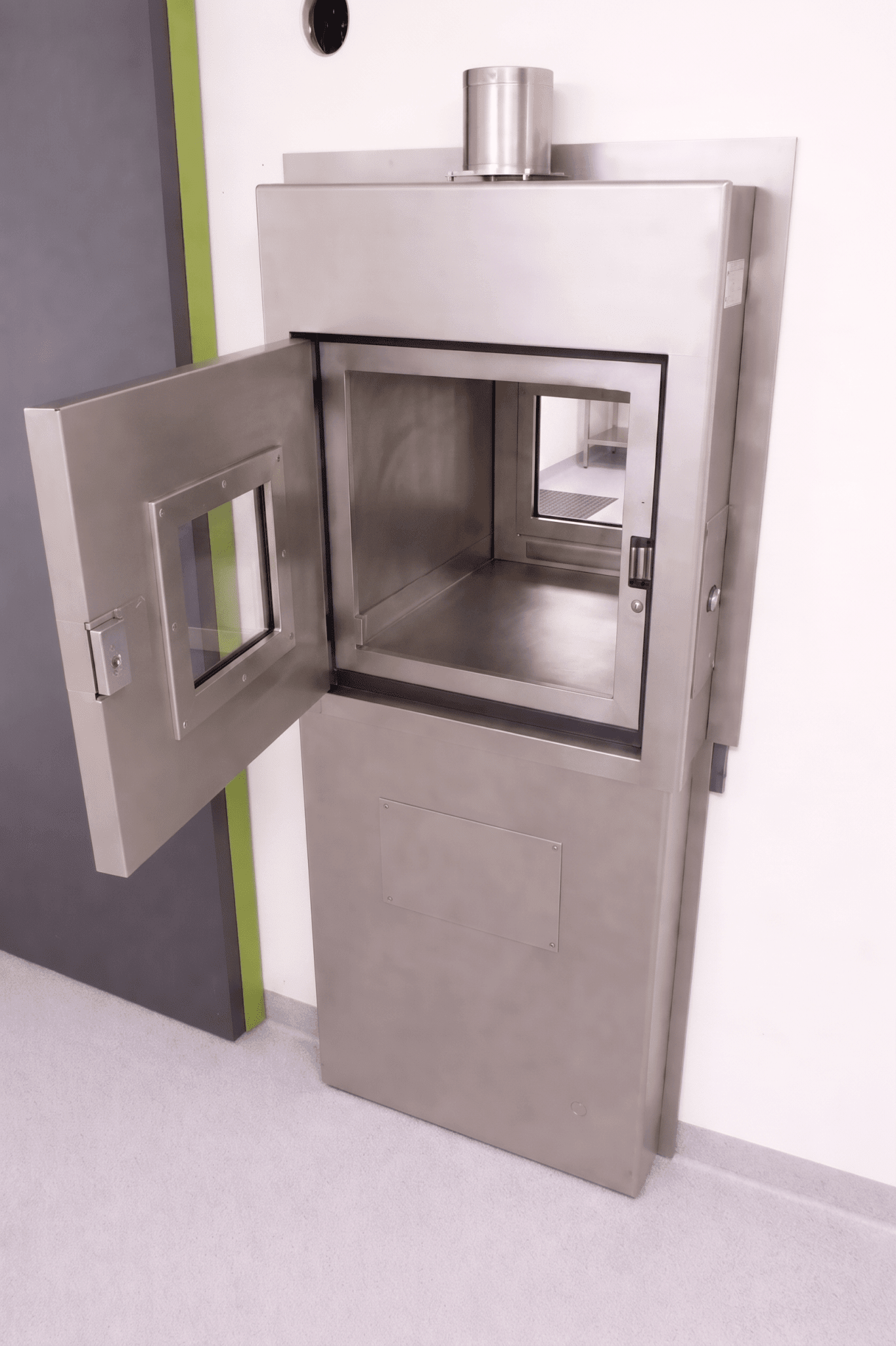

How Lead Glass Uses Lead Equivalency
Lead glass is engineered with lead oxide and other heavy metals to achieve a specific mm Pb rating.
This allows it to match surrounding wall shielding in X-ray rooms while still providing visibility.
Example:
- Wall requires 2.0 mm Pb
- Lead glass must also be rated at 2.0 mm Pb
If the glass is under-rated, it becomes a weak point in the shielding barrier.
Relevant Standards and Guidelines
- NCRP Report No. 147 – Structural shielding design for medical X-ray facilities
- NCRP Report No. 151 – Dental radiation protection guidelines
- IEC 61331 – Protective devices against diagnostic X-radiation
- ASTM C1036 – Flat glass quality requirements
- ASTM C1172 – Laminated safety glass standards
Common Misunderstandings About Lead Equivalency
- Thinking thicker glass always means better protection
- Confusing physical thickness with shielding performance
- Assuming all materials block radiation equally
- Using incorrect mm Pb ratings without a shielding report
These mistakes can lead to inspection failures or unsafe installations.
Why Lead Equivalency Must Match the Shielding Report
Every radiation room design is based on a shielding report prepared by a qualified medical physicist.
This report determines:
- Required lead equivalency for walls and barriers
- Required lead glass rating for viewing windows
- Energy levels and workload assumptions
Using materials that do not match this report is one of the most common causes of inspection failure.
Final Thoughts
Lead equivalency is the foundation of radiation shielding design. It allows engineers, physicists, and builders to translate complex radiation physics into practical construction specifications.
Understanding mm Pb ratings, energy levels, and attenuation helps ensure that every component—from walls to lead glass—is properly specified and compliant with NCRP-based design standards.
When correctly applied, lead equivalency ensures both safety and regulatory approval in medical imaging environments. Selecting the right Lead Lined Drywall starts with understanding the lead equivalency rating your physicist has prescribed for the project.
Frequently Asked Questions (FAQs)
What does mm Pb mean?
It stands for millimeters of lead equivalency, a measurement of how much radiation shielding a material provides compared to solid lead.
Is higher mm Pb always better?
Not necessarily. It must match the shielding report requirements—over-shielding increases cost unnecessarily.
Does physical thickness equal lead equivalency?
No. Different materials can have the same mm Pb rating but different physical thickness.
Why do higher energy X-rays need more shielding?
Higher energy radiation penetrates materials more easily, requiring greater attenuation.
What standards define lead equivalency?
NCRP 147, IEC 61331, ASTM C1036, and ASTM C1172 are commonly referenced standards.
How is lead glass rated?
It is tested and certified to provide a specific mm Pb equivalent at defined energy levels.
