Key Takeaways:
- Different Materials, Different Applications: Lead glass and leaded acrylic each serve specific installation contexts; using the wrong one creates compliance and performance problems.
- Glass Outperforms Acrylic On Durability: Leaded acrylic scratches more easily and yellows over time, affecting long-term optical clarity in clinical environments.
- Compliance Standards Differ By Material: Lead glass meets DD-G-451 and ASTM C1036; leaded acrylic follows different standards and is not a direct substitute in all applications.
Lead glass and leaded acrylic both contain lead and both attenuate ionizing radiation. Beyond that, they are different materials with distinct performance profiles, installation requirements, and long-term maintenance demands.
At Lead Glass Pro, we supply x-ray lead glass to medical, dental, industrial, and research facilities across the U.S., fabricated to confirmed lead equivalency in 3 business days. Our team supports specification decisions that affect material selection, compliance, visibility, and long-term performance.
This article covers how lead glass and leaded acrylic compare across shielding, clarity, durability, and application fit, so the right material gets specified for the right location.
How Each Material Provides Radiation Shielding
Both materials attenuate ionizing radiation, but the mechanisms, consistency, and performance ceiling differ between them. These differences matter most at higher lead equivalencies and in permanent installations. Lead glass is intended to last the life of the room.
Lead Oxide In Glass vs. Lead In Acrylic
X-ray lead glass contains uniformly distributed lead oxide throughout its glass matrix, incorporated during manufacturing. Leaded acrylic incorporates a lead compound into a polymer base, which degrades over time from UV exposure, heat, and chemical contact.
Shielding Consistency Over The Panel Surface
Lead glass shielding performance is consistent across the entire panel surface due to uniform lead oxide distribution. The consistency of leaded acrylic shielding depends on the uniformity of lead dispersion within the polymer, which can vary by manufacturer and production process.
Performance At Higher Lead Equivalencies
Lead glass maintains structural integrity and optical clarity as equivalency increases. Leaded acrylic at higher equivalencies becomes heavier and more prone to distortion. Lead-acrylic vs. lead glass comparisons at higher equivalency levels consistently favor glass for permanent room installations.
Radiation Types Both Materials Address
Both materials are designed for X-ray, gamma, alpha, and beta photon radiation. Neither shields against MRI, radio-frequency energy, ultrasound, laser, nor non-ionizing radiation types. Application context and performance requirements drive the material decision, not radiation type alone.
Optical Clarity And Visibility Compared
In imaging environments where the technologist's line of sight to the patient is a clinical requirement, optical performance is not a secondary consideration. Acrylic has a higher coefficient of thermal expansion than glass and is more susceptible to optical distortion over larger viewing areas, particularly in warmer environments or thicker panels.
Light Transmission In Lead Glass
Lead Glass Pro's x-ray lead glass maintains approximately 88% spectral light transmission consistently across equivalency ratings. The slight green or blue-green tint does not materially affect clinical visibility under standard imaging room lighting conditions.
How Acrylic Clarity Changes Over Time
Radiation shielding acrylic panels are optically clear at installation but susceptible to yellowing from UV exposure and surface hazing from scratching over time. In high-use clinical environments, acrylic surfaces accumulate damage faster than glass under equivalent conditions.
Scratch Resistance In High-Use Environments
Glass is significantly harder than acrylic and more resistant to surface scratching under normal clinical use. In environments with frequent cleaning or equipment moving near windows, the difference in scratch resistance directly impacts long-term visibility performance.
Durability, Compliance, And Long-Term Performance
Material performance over the operational life of the room affects maintenance costs, replacement frequency, and the continuity of shielding across the installation.
Compliance Standards For Each Material
Lead glass must meet Federal Specification DD-G-451 and ASTM C1036, as well as NCRP Reports No. 49 and No. 147, and ICRP criteria. From a compliance standpoint, lead glass vs. acrylic shows that these standards apply specifically to glass. Leaded acrylic is not a direct substitute where DD-G-451 and ASTM C1036 compliance is required.
Long-Term Maintenance Demands
Lead glass does not degrade from UV exposure, does not yellow, and maintains structural integrity under normal conditions. Leaded acrylic requires more careful handling, is sensitive to certain cleaning chemicals, and has a shorter service life under regular UV exposure or temperature variations.
Where Acrylic Has A Practical Advantage
The primary advantage of leaded acrylic is reduced weight, making it useful in certain portable shielding products. For fixed observation windows, lead glass generally provides better long-term durability, clarity, and code compliance. Lead Glass Pro's mobile x-ray barriers use 2mm lead shielding and start at $3,990 for environments where a fixed wall installation is not the right fit.
Where Each Material Is Appropriate And Where It Is Not
Application context is the deciding factor. The material for a permanent observation window is not necessarily the same as that for a portable barrier.
Permanent Fixed Installations

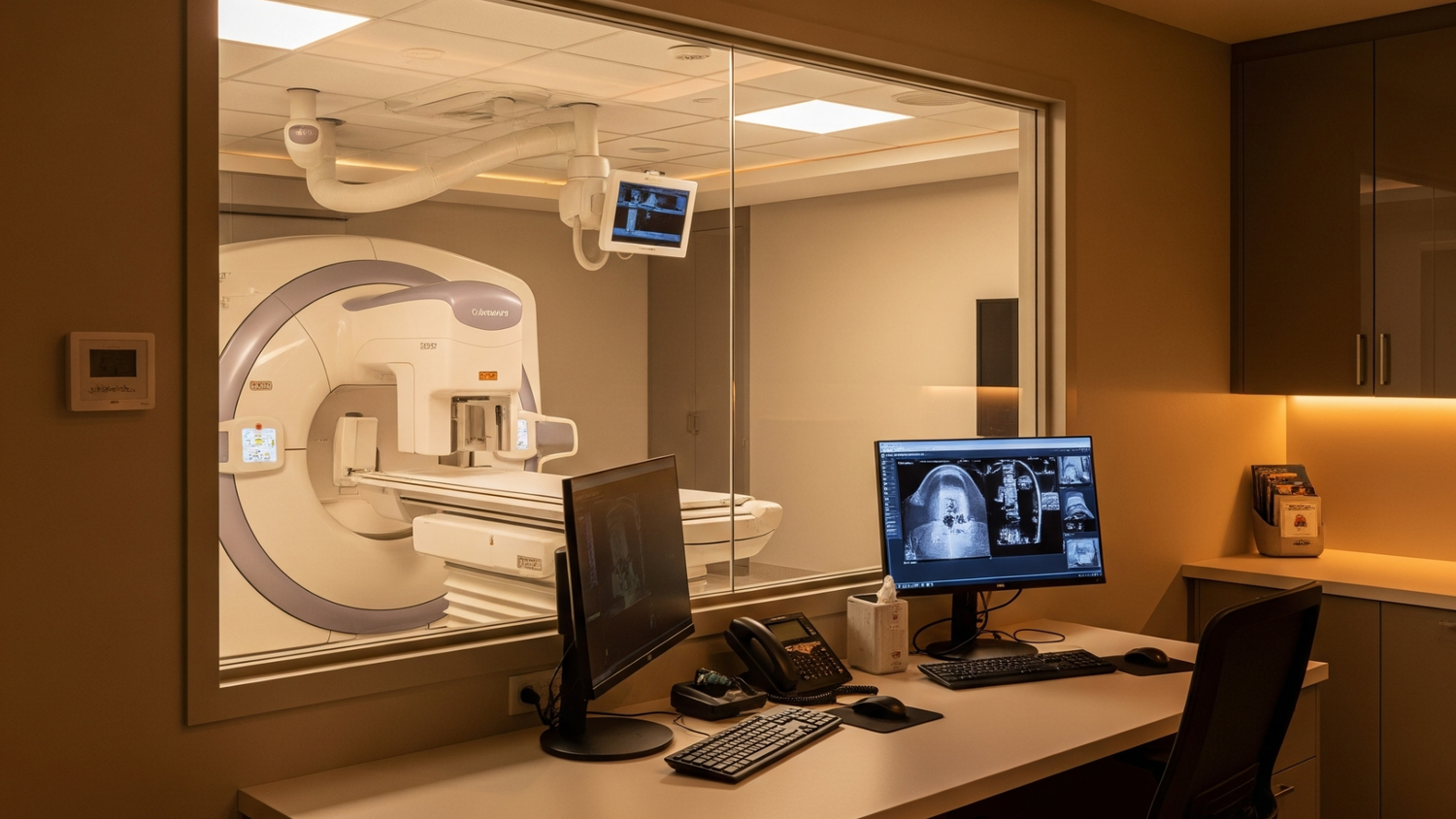

For permanent observation windows in X-ray rooms, CT suites, dental operatories, and industrial facilities, lead glass is the appropriate material. It meets applicable compliance standards and maintains clarity and shielding performance over the installation's full service life.
Mobile And Portable Shielding Applications
Leaded acrylic is sometimes selected for portable shielding because of its lower weight. However, many healthcare facilities prefer lead glass in mobile barriers because it provides superior scratch resistance, long-term clarity, and a more durable viewing surface despite the additional weight.
Door And Impact-Resistance Requirements
Door applications and openings within 24 inches of a door require impact-resistant X-ray safety glass compliant with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II. Leaded acrylic generally is not an acceptable substitute for these locations, regardless of its lead equivalency.
Fire Resistance And Building Code Considerations
In many healthcare facilities, radiation shielding must work alongside fire protection requirements. While radiation shielding and fire ratings are separate performance criteria, some openings must satisfy both.
Lead glass is available in fire-rated assemblies that have been tested and listed for use in fire-rated doors, sidelites, and wall systems when installed as part of an approved fire-rated glazing system. This allows designers to maintain visibility while meeting both radiation shielding and applicable fire code requirements.
Leaded acrylic is a combustible plastic material and is generally not used where a fire-rated glazing assembly is required. If your project includes fire-rated walls or doors, verify both the required lead equivalency and fire rating before selecting a glazing material.
At Lead Glass Pro, we can help determine whether your project requires standard X-ray lead glass, impact-resistant safety glass, or a fire-rated lead glass assembly based on your project specifications.
|
Feature |
Lead Glass |
Leaded Acrylic |
|
Optical clarity |
Excellent |
Good initially |
|
Long-term clarity |
Excellent |
May yellow/haze |
|
Scratch resistance |
Excellent |
Poor |
|
Chemical resistance |
Excellent |
Moderate |
|
Cleaning durability |
Excellent |
Fair |
|
Safety glazing available |
Yes |
Limited |
|
Fire rating |
Available |
Combustible |
|
Permanent installations |
Excellent |
Not preferred |
|
Portable barriers |
Excellent (heavier) |
Good (lighter) |
|
Typical service life |
Decades |
Shorter |
Why Most Facilities Choose Lead Glass
When selecting an observation window, healthcare facilities typically prioritize:
- Long-term optical clarity
- Resistance to scratching and daily cleaning
- Compliance with applicable building and healthcare standards
- Accurate lead equivalency
- Custom sizing
- Fast fabrication
Lead Glass Pro manufactures lead glass to Federal Specification DD-G-451 and ASTM C1036 with stock and custom sizes available, fast fabrication, and expert technical support to help ensure the correct shielding is specified.
Final Thoughts
Lead glass and leaded acrylic are not interchangeable. Each material has a defined performance profile and a set of applications where it is the appropriate choice.
Lead Glass Pro supplies x-ray lead glass meeting Federal Specification DD-G-451 and ASTM C1036, fabricated in 3 business days with stock and custom sizes available up to 96" x 48". For mobile shielding needs, our mobile x-ray barriers start at $3,990 with 2mm lead shielding.
If your project requires a permanent observation window or a mobile shielding solution, reach out to the Lead Glass Pro team with your confirmed specification.
Frequently Asked Questions About Lead Glass vs Leaded Acrylic
What is the main difference between lead glass and leaded acrylic?
Lead glass has a glass matrix with uniform lead oxide; Leaded acrylic is a polymer-based material that is more susceptible to scratching, surface hazing, chemical damage, and UV-related yellowing over time than lead glass.
Can leaded acrylic replace lead glass in an X-ray room observation window?
No. Permanent fixed installations require lead glass meeting DD-G-451 and ASTM C1036, which leaded acrylic does not satisfy.
Which material scratches more easily?
Leaded acrylic scratches significantly more easily than lead glass under equivalent cleaning and clinical use conditions.
Does leaded acrylic meet the same compliance standards as lead glass?
No. Lead glass and leaded acrylic follow different material standards and are not direct substitutes in compliance-governed applications.
Where is leaded acrylic the appropriate shielding material?
Leaded acrylic is practical for mobile and portable shielding applications where weight reduction is a primary requirement.
Can leaded acrylic be used in door applications?
No. Door applications require impact-resistant safety glass compliant with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II.
How does Lead Glass Pro's mobile X-ray barrier compare to acrylic panels?
Lead Glass Pro's mobile x-ray barriers provide 2mm lead shielding starting at $3,990 and are designed for portable shielding use.
Does leaded acrylic yellow over time?
Yes. Leaded acrylic can gradually yellow or become hazy after prolonged exposure to ultraviolet (UV) light and normal aging. It is also more susceptible to surface scratching, which can reduce visibility over time. Lead glass maintains its optical clarity for decades under normal indoor conditions.
Which material lasts longer?
Lead glass generally has a much longer service life than leaded acrylic. It resists scratching, chemical cleaners, and UV exposure, making it well suited for permanent healthcare installations where long-term clarity and durability are important.
Is leaded acrylic less expensive than lead glass?
Leaded acrylic may have a lower initial material cost in some applications, particularly for portable shielding products. However, permanent observation windows often benefit from lead glass because of its superior durability, resistance to scratching, longer service life, and lower maintenance requirements.
Which material do hospitals typically use?
Most hospitals, imaging centers, and healthcare facilities use lead glass for permanent observation windows in X-ray rooms, CT suites, cath labs, and other diagnostic imaging environments. Leaded acrylic is more commonly found in certain portable shielding products where reducing weight is a priority.
Can leaded acrylic be used in CT rooms?
While leaded acrylic can provide radiation shielding, permanent CT observation windows are typically constructed with lead glass because it offers superior optical clarity, long-term durability, and compliance with common glazing specifications used in healthcare construction.
Does lead glass require special cleaning?
No. Lead glass can generally be cleaned using standard non-abrasive glass cleaners and hospital-approved cleaning products. Avoid abrasive pads or harsh cleaners not recommended by the manufacturer. Compared to acrylic, lead glass is much more resistant to scratching during routine cleaning.
Does lead glass block visible light?
No. X-ray lead glass is designed to transmit visible light while attenuating ionizing radiation. Lead Glass Pro's lead glass provides approximately 88% visible light transmission, allowing healthcare professionals to clearly observe patients during imaging procedures.
Can lead glass be tempered?
Standard X-ray lead glass cannot typically be tempered because of its composition. However, impact-resistant safety lead glass is available through lamination and other manufacturing methods to meet ANSI Z97.1 and CPSC 16 CFR Part 1201 requirements for hazardous locations such as doors and sidelites.
Is laminated lead safety glass available?
Yes. Laminated lead safety glass is available for applications requiring both radiation shielding and impact resistance. These products are commonly specified for door vision panels, sidelites, and other locations where safety glazing is required by building codes.
Is lead glass stronger than leaded acrylic?
Lead glass is significantly more resistant to scratching, chemical exposure, and long-term wear than leaded acrylic. While acrylic is more impact resistant and lighter in weight, lead glass offers better optical clarity, greater resistance to daily cleaning, and a longer service life, making it the preferred choice for most permanent X-ray observation windows.
