<h1>What Happens if Radiation Shielding Has Gaps?</h1>

<p>Radiation shielding systems are designed to create a continuous protective barrier that limits radiation exposure outside of an X-ray or imaging room. Even small gaps in that barrier can compromise the effectiveness of the entire shielding system.</p>

<p>In many cases, shielding failures are not caused by the shielding material itself, but by installation mistakes, poor coordination, or incomplete shielding continuity around openings, penetrations, and transitions.</p>

<p>Understanding how shielding gaps occur—and why they matter—is critical for anyone involved in medical imaging construction, including contractors, architects, facility managers, and installers.</p>

<h2>Why Shielding Continuity Matters</h2>

<p>Radiation does not only travel directly through walls. It can also pass through weak points, seams, penetrations, and improperly shielded openings.</p>

<p>Radiation shielding systems are intended to work as one continuous protective envelope. This includes:</p>

<ul>
  <li>Lead-lined walls</li>
  <li>Lead-lined doors</li>
  <li>Lead glass windows</li>
  <li>Frames and glazing systems</li>
  <li>Electrical penetrations</li>
  <li>Joints and transitions</li>
</ul>

<p>If any part of the shielding system is incomplete, radiation can potentially leak through that area.</p>

<h2>Common Places Where Shielding Gaps Occur</h2>

<p>Shielding gaps are most commonly found at transitions between materials or around openings in the wall.</p>

<p>Some of the most common problem areas include:</p>

<ul>
  <li>Window frames</li>
  <li>Door frames</li>
  <li>Electrical boxes and conduit penetrations</li>
  <li>HVAC penetrations</li>
  <li>Improper overlap between lead sheets</li>
  <li>Unshielded fasteners</li>
  <li>Gaps behind trim or casing</li>
  <li>Improperly installed glazing systems</li>
</ul>

<p>Even very small openings can become leakage points under certain conditions.</p>

<h2>What Can Happen if Shielding Has Gaps?</h2>

<h3>1. Radiation Leakage</h3>

<p>The most obvious risk is radiation escaping through the unprotected area.</p>

<p>Depending on the location and radiation levels involved, this can expose:</p>

<ul>
  <li>Medical staff</li>
  <li>Patients</li>
  <li>Visitors</li>
  <li>Adjacent room occupants</li>
</ul>

<p>Shielding requirements exist specifically to keep exposure levels within acceptable regulatory limits.</p>

<h3>2. Failed Radiation Testing</h3>

<p>Most medical imaging rooms undergo radiation surveys or shielding inspections before they can be approved for use.</p>

<p>If shielding gaps are discovered during testing, the room may fail inspection.</p>

<p>This can lead to:</p>

<ul>
  <li>Project delays</li>
  <li>Additional testing costs</li>
  <li>Construction rework</li>
  <li>Delayed occupancy</li>
</ul>

<p>In some cases, walls, frames, or windows may need to be partially demolished to correct the issue.</p>

<h3>3. Expensive Rework</h3>

<p>Fixing shielding problems after construction is completed is often significantly more expensive than installing the shielding correctly the first time.</p>

<p>Corrective work may involve:</p>

<ul>
  <li>Removing drywall or finished surfaces</li>
  <li>Replacing frames or glazing systems</li>
  <li>Adding supplemental shielding</li>
  <li>Re-inspection and additional physicist review</li>
</ul>

<p>These costs can escalate quickly, especially in completed healthcare facilities.</p>

<h3>4. Compliance and Liability Issues</h3>

<p>Improper radiation shielding can create serious compliance concerns for healthcare facilities and contractors.</p>

<p>Failed shielding systems may violate:</p>

<ul>
  <li>Building code requirements</li>
  <li>State radiation regulations</li>
  <li>Project specifications</li>
  <li>Health and safety standards</li>
</ul>

<p>In some situations, inadequate shielding could create legal or liability exposure if excessive radiation leakage occurs.</p>

<h2>How Shielding Gaps Commonly Happen</h2>

<h3>Improper Lead Overlap</h3>

<p>Lead-lined drywall and sheet lead typically require proper overlap at seams and transitions.</p>

<p>If materials are butted together incorrectly without overlap, small gaps can remain in the shielding envelope.</p>

<h3>Using Standard Frames Instead of Lead-Lined Frames</h3>

<p>One of the most common mistakes is installing radiation shielding glass into a standard commercial frame.</p>

<p>Even if the glass itself provides adequate shielding, the unshielded frame can allow radiation leakage around the perimeter.</p>

<p>Proper <a href="https://leadglasspro.com/products/lead-x-ray-windows">Lead-Lined X-Ray Windows</a> are designed to maintain shielding continuity around the entire opening.</p>

<h3>Incorrect Penetration Detailing</h3>

<p>Electrical boxes, conduit, plumbing, and HVAC penetrations are common weak points if they are not properly shielded.</p>

<p>Coordination between trades is critical to ensure penetrations do not compromise the shielding system.</p>

<h3>Poor Installation Coordination</h3>

<p>Radiation shielding systems often involve multiple trades, including:</p>

<ul>
  <li>Lead installers</li>
  <li>Drywall contractors</li>
  <li>Glaziers</li>
  <li>Door and frame installers</li>
  <li>Electrical contractors</li>
</ul>

<p>If shielding requirements are not coordinated properly, gaps and inconsistencies can easily occur during construction.</p>

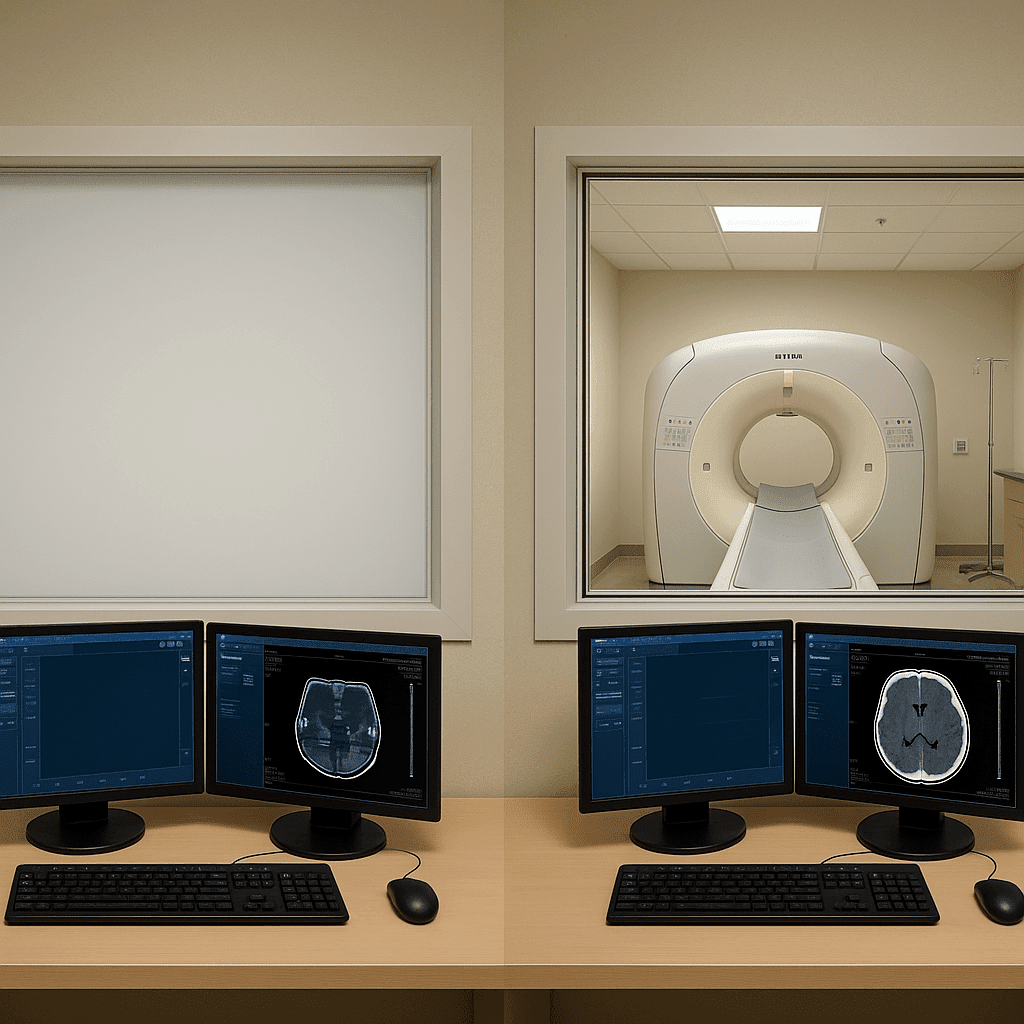

<h2>Lead Glass Openings Are Common Weak Points</h2>

<p>Window openings require especially careful detailing because they interrupt the wall shielding system.</p>

<p>Proper installation typically requires:</p>

<ul>
  <li>Lead-lined framing</li>
  <li>Matching lead equivalency</li>
  <li>Proper overlap with wall shielding</li>
  <li>Correct glazing installation</li>
</ul>

<p>For radiation shielding applications, complete window systems are often preferred because they help ensure compatibility between the glass and frame assembly.</p>

<p>Our <a href="https://leadglasspro.com/products/lead-x-ray-windows">Lead-Lined X-Ray Windows</a> are designed specifically for shielding continuity and medical imaging environments.</p>

<p>For standalone shielding glass products, view our <a href="https://leadglasspro.com/products/x-ray-lead-glass">X-Ray Lead Glass</a>.</p>

<h2>Can Small Gaps Really Matter?</h2>

<p>Yes. Radiation shielding systems are highly sensitive to discontinuities.</p>

<p>Even small openings can become measurable leakage points during a radiation survey, especially in higher-energy applications such as:</p>

<ul>
  <li>CT rooms</li>
  <li>Fluoroscopy suites</li>
  <li>Nuclear medicine rooms</li>
  <li>Industrial radiography areas</li>
</ul>

<p>This is why careful detailing and installation are so important.</p>

<h2>How to Prevent Shielding Gaps</h2>

<p>Some of the best ways to avoid shielding problems include:</p>

<ul>
  <li>Using experienced radiation shielding contractors</li>
  <li>Following the shielding report carefully</li>
  <li>Using lead-lined frames and compatible components</li>
  <li>Maintaining proper overlap at seams and transitions</li>
  <li>Coordinating all penetrations before construction</li>
  <li>Verifying dimensions before fabrication</li>
  <li>Performing inspections during installation—not just after completion</li>
</ul>

<p>Attention to detail during construction is critical to a successful shielding installation.</p>

<h2>Why Complete Shielding Systems Help</h2>

<p>Using engineered shielding systems rather than piecing together unrelated components can help reduce the risk of installation errors.</p>

<p>Complete systems help ensure:</p>

<ul>
  <li>Compatible shielding levels</li>
  <li>Proper frame and glass integration</li>
  <li>Improved shielding continuity</li>
  <li>Simplified installation coordination</li>
</ul>

<p>This is especially important for window and door openings, which are among the most common sources of shielding issues.</p>

<h2>Final Thoughts</h2>

<p>Radiation shielding gaps can create serious problems ranging from failed inspections to expensive rework and potential radiation leakage. One of the most overlooked shielding gaps occurs at electrical penetrations — Lead Boxes seal these weak points in the x-ray room barrier.</p>

<p>Most shielding failures occur at transitions, openings, and improperly coordinated installations—not through the shielding material itself.</p>

<p>By maintaining proper shielding continuity, using compatible lead-lined components, and coordinating installation carefully, contractors and facility owners can avoid costly mistakes and ensure long-term compliance. A properly constructed Lead Wall eliminates the gaps that cause inspection failures and patient safety concerns.</p>
