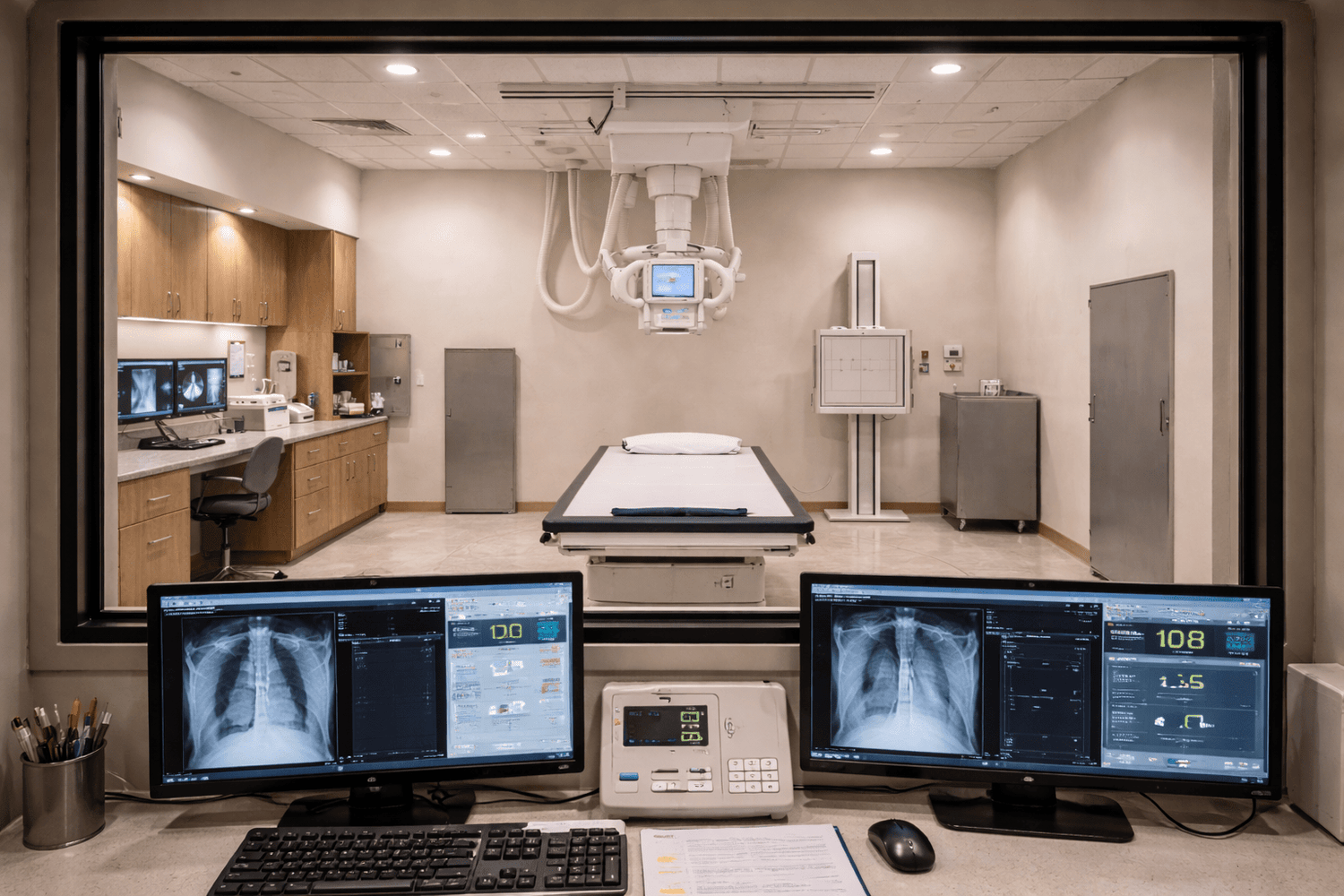

How Thick Is 2.0mm Lead Glass?

One of the most common questions buyers ask when specifying radiation shielding glass is: “How thick is 2.0mm lead glass?”

The answer is important because many customers assume the “2.0mm” specification refers to the physical thickness of the glass itself.

In reality, the “2.0mm” rating refers to the lead equivalency of the glass — not the actual overall thickness.

This guide explains what 2.0mm lead glass means, how thick the glass typically is, and why physical thickness and shielding performance are not the same thing.

What Does “2.0mm Lead Glass” Actually Mean?

When lead glass is labeled as “2.0mm Pb,” the “Pb” stands for lead equivalency.

This means the glass provides radiation attenuation equivalent to approximately 2.0mm of solid lead under specified testing conditions.

The rating refers to shielding performance — not the physical thickness of the panel.

So How Thick Is 2.0mm Lead Glass Physically?

Although dimensions vary slightly by manufacturer and glazing configuration, 2.0mm lead equivalent shielding glass is commonly around:

• Approximately 8mm to 11mm thick (about 5/16" to 7/16")

However, the total thickness can vary depending on:

• The manufacturer
• The glass composition
• Safety backing requirements
• Laminated configurations
• Insulated glass unit (IGU) construction

Some assemblies may be substantially thicker if additional safety or fire-rated glazing components are included.

Why Isn’t 2.0mm Lead Glass Actually 2.0mm Thick?

Because the “2.0mm” refers to shielding equivalency rather than physical size.

Lead glass uses heavy metal oxides within the glass composition to absorb radiation.

The shielding effectiveness depends on factors such as:

• Glass density
• Lead content
• Material composition
• Glass thickness

Manufacturers engineer the glass so the finished product provides radiation attenuation equivalent to 2.0mm of lead sheet.

Higher Lead Equivalency Usually Means Thicker Glass

As shielding requirements increase, the glass generally becomes thicker and heavier.

Common lead equivalencies include:

• 1.0mm Pb
• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

Higher shielding ratings typically require:

• More dense glass composition
• Additional material thickness
• Heavier overall panel weight

2.0mm Lead Glass Is Much Heavier Than Standard Glass

Because of the dense lead oxide content, 2.0mm lead glass is significantly heavier than ordinary commercial glazing.

This additional weight affects:

• Frame requirements
• Shipping methods
• Installation procedures
• Structural support conditions

Larger panels may require multiple installers or lifting equipment for safe handling.

What Applications Use 2.0mm Lead Glass?

2.0mm lead equivalent glass is commonly used in:

• Hospital imaging rooms
• CT suites
• Fluoroscopy rooms
• Certain industrial radiography applications
• Higher workload imaging environments

The required shielding level depends on the shielding report and radiation calculations prepared for the project.

Not All 2.0mm Lead Glass Products Are Identical

Different manufacturers may produce 2.0mm lead glass using slightly different:

• Glass compositions
• Physical thicknesses
• Laminated constructions
• Safety glazing configurations

This is why exact product specifications should always be reviewed during the quoting and approval process.

Safety Backing Can Increase Total Thickness

Some projects require safety glazing configurations.

Because lead glass cannot typically be thermally tempered like standard safety glass, projects often use:

• Laminated safety backing
• Protective interlayers
• Insulated glass unit (IGU) assemblies

These additional layers increase the total thickness beyond the shielding glass alone.

Fire-Rated Assemblies Are Usually Even Thicker

Fire-rated radiation shielding systems commonly combine:

• Lead shielding glass
• Fire-rated glazing materials
• IGU construction

These assemblies are often substantially thicker than standard non-rated lead glass configurations.

Frame Compatibility Is Extremely Important

Because 2.0mm lead glass is relatively thick and heavy, frame systems must be designed to accommodate:

• The glass thickness
• The panel weight
• Proper glazing clearances
• Shielding continuity

Improper framing can create stress on the glass and increase the risk of breakage.

Complete Lead-Lined Window Systems Are Often Preferred

Complete Lead-Lined X-Ray Windows are engineered specifically for radiation shielding applications.

These systems coordinate:

• Lead glass thickness
• Shielding performance
• Frame compatibility
• Installation conditions

This helps reduce installation issues and maintain shielding continuity around the opening.

Why Shielding Reports Matter

The required lead equivalency should always be determined by a qualified shielding report or radiation physicist.

The report evaluates:

• Radiation energy levels
• Equipment type
• Room workload
• Occupancy conditions
• Distance to surrounding spaces

Choosing the wrong shielding level can create compliance and safety issues.

Can 2.0mm Lead Glass Be Cut in the Field?

Generally, no.

Lead glass is typically custom fabricated and is not intended for field cutting or resizing after manufacturing.

This is why accurate measurements and careful approval review are extremely important before production begins.

How Thick Are Other Common Lead Glass Types?

Although exact dimensions vary by manufacturer, lower lead equivalencies are usually thinner than higher-rated products.

For example:

• 1.0mm Pb glass is generally thinner than 2.0mm Pb glass
• 2.5mm Pb glass is generally thicker and heavier than 2.0mm Pb glass

The exact physical thickness depends on the specific product configuration.

Review Product Specifications Carefully

When ordering lead glass, buyers should verify:

• Lead equivalency
• Actual glass thickness
• Safety glazing requirements
• Frame compatibility
• Overall assembly thickness

This helps ensure the glazing system matches the project requirements.

Learn More About Lead Glass Specifications

For additional product information and specifications, visit:

X-Ray Lead Glass

Final Thoughts

2.0mm lead glass refers to the radiation shielding equivalency of the glass — not the physical thickness of the panel itself.

Most 2.0mm lead equivalent glass products are substantially thicker than 2.0mm because they are engineered to provide shielding performance equivalent to 2.0mm of solid lead.

The exact thickness depends on the manufacturer, safety glazing requirements, and overall assembly design.

Because shielding glass is heavy and highly specialized, proper coordination between the glass, framing system, and project requirements is essential for successful installation and long-term performance.
