Key Takeaways:
- Sequence Determines Compliance: Shielding details, including batten strips, lead discs, and penetration coverage, must be completed before any wall finishing begins. Closing walls before these steps are verified leads to failed inspections and costly rework.
- Vertical Installation Is Non-Negotiable: Lead-lined sheetrock is installed vertically to align with shielding height requirements and simplify joint coverage . Horizontal installation is likely to result in an inspection failure that requires corrective work.
- Preparation Prevents Delays: A forklift must be on site at delivery, lead equivalency must be confirmed by a radiation physicist before ordering, and all rough-in penetrations must be identified before panels go up.
Get lead-lined sheetrock installation wrong once, and the schedule pays for it twice.
Lead-lined sheetrock installation is one of those scopes where the details are not optional. Panels must go up vertically, joints need batten strips, screw heads need lead discs, and the physicist's specification has to be confirmed before a single panel is ordered. Miss any one of these steps and the wall comes back open.
At Lead Glass Pro, we supply lead-lined sheetrock that is manufactured to align with project shielding requirements and recognized guidance such as NCRP recommendations , ships within a week, and comes with the accessories your crew needs to install it correctly the first time. This article covers everything from pre-installation preparation to final shielding checks.
Why Lead Sheetrock Installations Fail (And How to Avoid It)
Most installation issues don’t come from the material itself — they come from gaps in coordination, missing components, or unclear specifications.
Common causes of failure include:
- Missing joint coverage materials
- Incorrect panel layout or sizing
- Unplanned penetrations
- Delayed delivery that disrupts installation sequencing
Lead Glass Pro addresses these issues by supplying complete, specification-aligned systems with included accessories and predictable delivery timelines.
This helps crews install efficiently and reduces the risk of rework during inspection.
What is Lead-Lined Sheetrock?

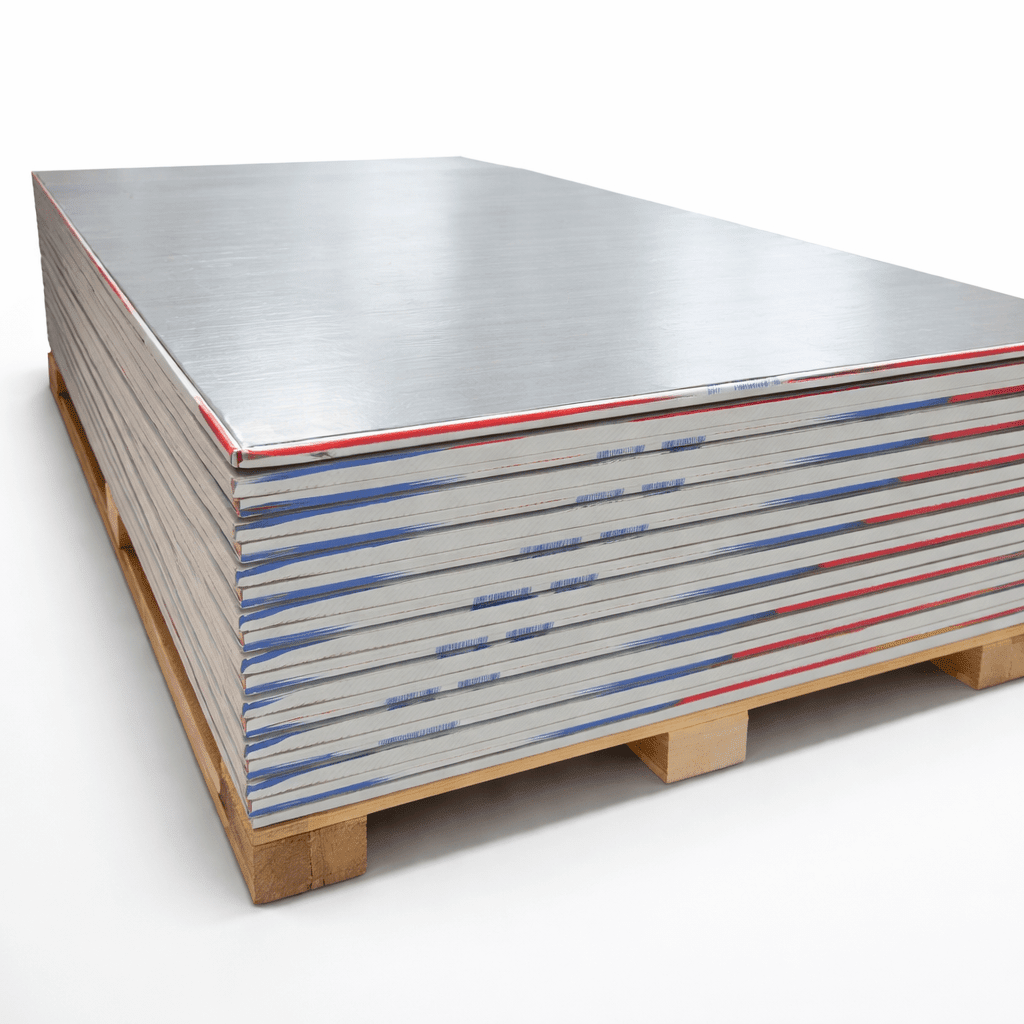

Our lead-lined drywall is a composite wall panel made by bonding a sheet of lead directly to the back of a standard gypsum drywall board. The lead sheet is the active shielding component, absorbing X-ray, gamma, alpha, and beta photon radiation. It is not intended for thermal or fast neutron shielding, and lead does not shield against MRI, radio-frequency energy, ultrasound, or non-ionizing radiation. Lead Glass Pro's lead-lined sheetrock uses 99.9% purity lead with uniform density throughout each sheet, ensuring consistent protection across the entire panel surface.
The standard panel comes as a 4ft x 8ft gypsum board with a 4ft x 7ft lead sheet bonded to it. Standard drywall thickness is 5/8" fire-rated sheetrock, with half-inch non-rated board available on request. Lead thicknesses range from 1/64" (1#) up to 1/4" (16#). The correct lead thickness for any project must be determined by a qualified radiation physicist or certified health official before materials are ordered.
Why Installation Sequence Changes Everything
Lead-lined wall assembly installation follows a specific order that directly determines whether the finished wall passes inspection. Skipping steps, reordering tasks, or finishing walls before shielding details are verified creates problems that are expensive and time-consuming to correct.
Shielding Comes Before Finishing
The lead lining must be fully installed, including all batten strips and lead disc coverage, before any taping, mudding, or painting begins. Finishing the wall surface before shielding details are confirmed means reopening finished walls if an inspection finds gaps or omissions.
Framing Decisions Affect Panel Fit
Wall framing must accommodate the panel dimensions before installation begins. Standard panels are 4ft x 8ft, and framing layouts that do not align with these dimensions result in awkward cuts and potential shielding gaps at the edges. Framing should be planned around the panel layout, not adjusted after materials arrive.
Lead Thickness Must Be Confirmed Before Ordering
All lead equivalency calculations must be determined by a radiation physicist before any order is placed. Once fabrication begins, changes cannot be made. Ordering before the specification is confirmed can result in installed panels not meeting the required shielding level, leading to a failed inspection and a full reorder.
Adjacent Trades Must Be Coordinated Around Shielding
Electrical, plumbing, and mechanical rough-in work that penetrates shielded walls requires lead coverage at every penetration point. These penetrations need to be identified and accounted for in the shielding plan before panels go up. Coordinating with adjacent trades in advance prevents unshielded gaps that are difficult to address after walls are closed.
Documentation Must Be Current At Every Stage
Inspection-ready documentation requires that the installed lead equivalency matches the specification provided by the radiation physicist. OSHA's ionizing radiation shielding resources include references to NCRP Report 147 and other standards that inspectors and physicists use to evaluate facility compliance. Order records, material specifications, and installation notes should be maintained throughout the process.
The Tools And Materials Your Crew Will Need
Standard construction tools handle most of the installation. A few additional items specific to lead-lined sheetrock are required to complete a compliant assembly.
Having everything on site before work begins prevents delays mid-installation.
Tools
The tools required for lead-lined sheetrock installation are largely standard to drywall work. A cordless screwgun with appropriate drywall bits handles fastening, while a standard drywall lift or panel carriers make moving heavy panels manageable. A tape measure and pencil are needed for layout and marking, and a scoring knife or circular saw is used for panel cuts when needed. A forklift is required on site at the time of delivery for offloading. Safety gear, including gloves, a respirator, and safety goggles, must be available to every crew member before work begins.
Materials
Lead-lined sheetrock panels should be on site, with the specified lead thickness and quantity, before installation begins. Each panel ships with one 2" wide lead batten strip for vertical joint coverage and 50 lead discs for covering screw heads on thicknesses over 1/16". Standard drywall screws appropriate for the wall framing material are used for fastening. Joint compound, tape, and finishing materials are needed for surface work after all shielding has been installed and verified.
Preparing The Space Before Panels Go Up
Preparation determines how smoothly the installation runs. Walls that are not ready for lead drywall installation will slow the crew down and increase the risk of shielding errors.
Framing And Layout
- Confirm wall framing is complete and laid out to align with 4ft panel widths. Our guide to frame lead lining kits covers additional framing considerations for shielded wall assemblies
- Verify that stud spacing accommodates the panel weight without additional blocking requirements
- Mark the shielding height on the framing before the panels are moved into position
Rough-In Coordination
- Confirm all electrical boxes, conduit, and mechanical penetrations through shielded walls are in place before panels go up
- Each penetration point requires lead coverage; identify these locations on the wall layout in advance
- Don’t close shielded walls until penetration coverage has been verified
Delivery And Staging
- A forklift must be on site at the time of delivery; lead-lined sheetrock cannot be offloaded by hand
- Inspect all panels in the presence of the delivery driver before signing the receipt; damage claims cannot be made after signing
- Stage panels as close to the installation area as possible to minimize handling distance
Safety Setup
- Ensure all crew members handling panels have gloves, respirators, and safety goggles before work begins. OSHA's lead construction standard outlines required PPE and hygiene practices for workers handling lead materials on construction sites
- Proper PPE should be used when handling lead-containing materials in accordance with standard safety practices
How Each Panel Gets Placed And Secured
Panel placement and fastening are where shielding integrity is either established or compromised. Every decision at this stage affects whether the finished wall meets the required protection level across its entire surface.
Vertical Orientation Is Required
Lead-backed drywall must be installed vertically. Horizontal installation is not compliant and will result in an inspection failure. Vertical orientation aligns the panel with the required shielding height of 7 feet above the finished floor and ensures the lead sheet covers the correct portion of the wall assembly.
Starting Point And Panel Layout
Begin installation at a corner and work across the wall, maintaining consistent panel alignment. Each panel should be positioned so the lead sheet faces the wall cavity, with the gypsum face presented outward for finishing. Confirm alignment before fastening, as repositioning after screws are driven is difficult without risk of damage to the lead sheet.
Fastening Method And Screw Placement
Panels are fastened using standard drywall screws driven through the gypsum board into the wall framing. For lead thicknesses over 1/16", each screw head must be covered with a lead disc after fastening is complete. For lead at 1/16" and thinner, the NCRP allows no additional coverage because the screw itself provides sufficient attenuation.
Cutting Panels For Openings And Edges
When panels need to be cut to fit around openings or at wall edges, make clean cuts to maintain tight joints. Crews should follow EPA's lead-safe work practices when cutting or trimming lead-containing panels to minimize dust and debris. Any cut edge that creates a gap in lead coverage must be addressed with lead batten strips or lead accessories to maintain shielding continuity.
Covering Joints, Screws, And Gaps The Right Way
The shielding in a lead-lined wall is only as strong as its weakest point. Joints, screw heads, and any gap in the lead coverage are potential paths for radiation to pass through the wall assembly. Each one must be addressed before the wall is considered complete.
The Purpose Of Lead Batten Strips At Vertical Joints
Every vertical joint between adjacent panels must be covered with a lead batten strip. The NCRP requires this overlap to maintain shielding continuity across the joint. Our lead corners batten strips are included with every panel, one 2" wide vertical batten strip, specifically for this purpose. Missing or misplaced batten strips are a direct inspection failure.
How Lead Discs Cover Screw Heads
For radiation shielding installation involving lead thicknesses over 1/16", screw heads must be covered with lead discs after all panels are fastened. Each Lead Glass Pro sheet includes 50 lead discs for this purpose. This step is required before finishing and must not be skipped or deferred.
Penetrations Through Shielded Walls
Electrical boxes, conduit, and other penetrations through shielded walls disrupt the lead layer, creating unshielded openings. For detailed guidance, see our resource on lead backing for electrical boxes to review the best way to shield radiation during construction. Each penetration requires lead coverage using appropriate accessories. Penetrations that are not addressed before walls are closed will require reopening to correct, adding significant time and cost to the project.
Final Check Before Finishing
Before any taping, mudding, or surface finishing begins, the entire wall assembly should be reviewed for complete lead coverage. Every joint must have a batten strip, every qualifying screw head must have a disc, and every penetration must be addressed. This is the last opportunity to identify and correct shielding gaps before the wall surface is closed.
Heights, Floors, And Ceilings: What Gets Shielded And What Does Not
X-ray room construction does not require lead coverage on every surface. Understanding which surfaces require shielding and which do not is essential for accurate material take-offs, compliant installations, and avoiding unnecessary cost.
The 7-Foot Rule For Wall Shielding
In the U.S., lead shielding on walls must extend to 7 feet above the finished floor. This is the federal minimum height requirement for a single-story building. The standard panel configuration, with a 4ft x 7ft lead sheet on a 4ft x 8ft gypsum board, is designed around this requirement.
Why Ceilings Are Often Excluded
Radiation shielding requirements depend on beam direction, scatter conditions, and adjacent occupancy. When there is no occupied space above the shielded room, lead shielding is not required on the ceiling. If there is occupancy above the room, the radiation physicist must evaluate the ceiling shielding requirement as part of the overall shielding design.
Why Floors Are Often Excluded
The same linear travel principle applies to floors. If there is no occupancy below the shielded room, lead shielding is not required on the floor. If the room is located above an occupied space, the floor shielding requirement must be included in the physicist's calculations.
Custom Lead Heights For Non-Standard Conditions
When project conditions require shielding above the standard 7-foot height, custom lead heights are available. Lead Glass Pro offers custom lead heights up to 12 feet on board heights up to 12 feet, accommodating multi-story conditions, high-ceiling environments, or project-specific requirements identified by the radiation physicist.
Final Thoughts
Lead-lined sheetrock installation is not complicated, but it is unforgiving. The panels go up vertically, the joints are covered, the screw heads are capped, and the physicist's specification is followed from the start. Every step in that sequence exists for a reason, and skipping any one of them creates a problem that will surface at inspection. Install Lead Boxes at every electrical box location before hanging the lead-lined panels to maintain a continuous radiation barrier.
Lead Glass Pro supplies lead-lined sheetrock fabricated to Federal Specification QQ-L-201F, ASTM B749, and ASTM C1396 standards. Each sheet ships with the batten strips and lead discs your crew needs for a compliant install. We fabricate in approximately 2 days, deliver within a week, and have a team available to support specification and installation questions throughout the project.
If your next imaging suite build or medical office upgrade needs shielding materials that arrive on time and install without confusion, reach out to the Lead Glass Pro team. We are ready to help you move forward. Shop our Lead Lined Drywall collection for the panel sizes and lead thicknesses discussed throughout this installation guide.
