Key Takeaways:
- Proper Planning Prevents Inspection Failures: Accurate measurements, structural assessment, and permit review eliminate costly rework and timeline delays.
- Installation Quality Depends On Precision: Frame alignment, perimeter sealing, and threshold integration determine whether your door meets radiation safety standards.
- Documentation Ensures Compliance: Complete installation records, testing verification, and maintenance logs satisfy regulatory requirements and future inspections.

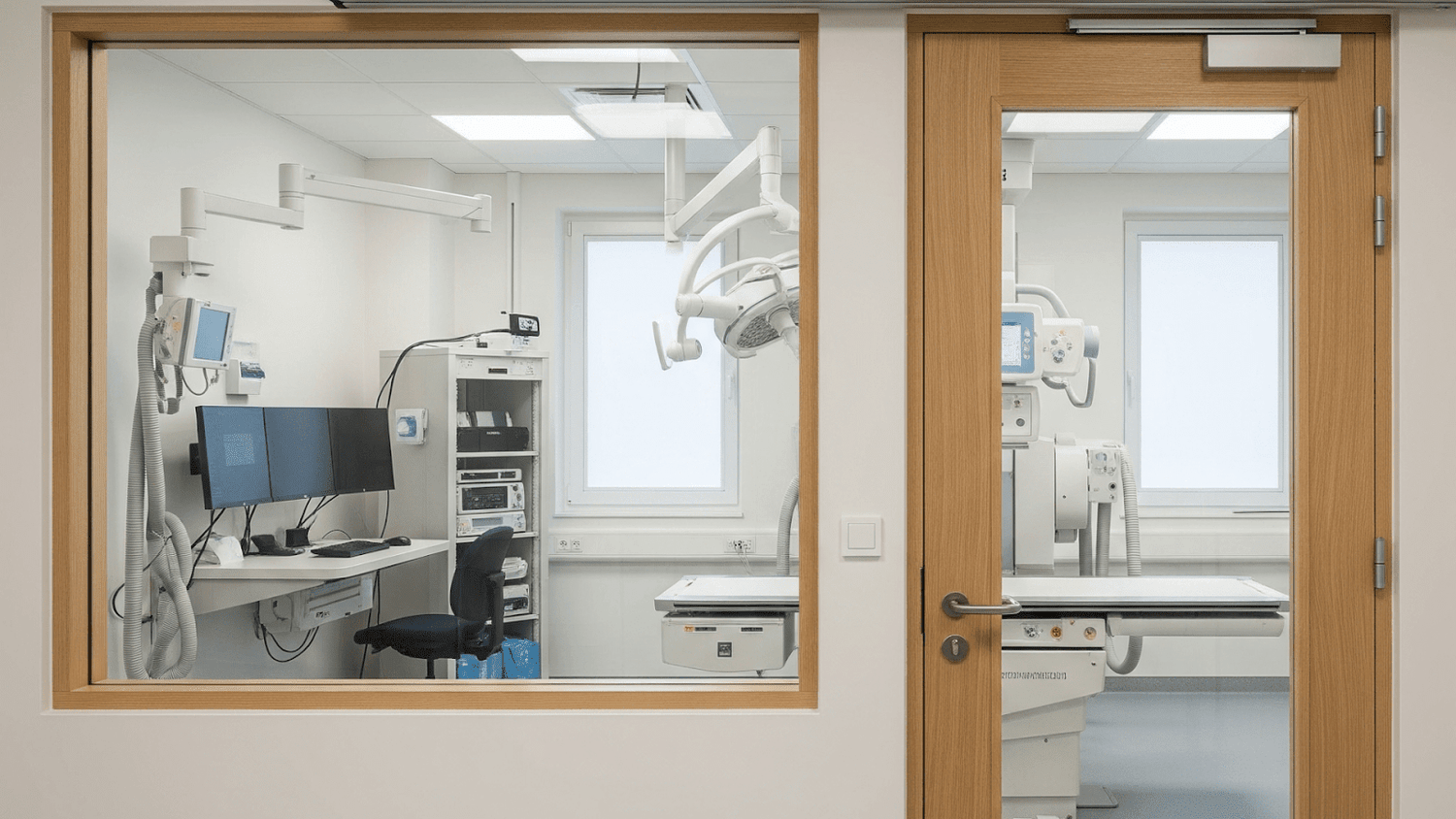

A poorly installed X-ray door can slow inspections, delay openings, and create uncertainty across an entire imaging build. When shielding, framing, and door alignment do not match the approved specifications, even a small mistake can ripple through the project timeline.
At Lead Glass Pro, we work with construction teams and medical facilities that need dependable shielding systems built for predictable installation. Our lead-lined doors and shielding components are fabricated with clear specifications and designed to integrate with standard construction practices, helping crews install confidently and keep projects moving.
In this guide, we explain X-ray door installation, including preparation steps, required tools, safety considerations, and practical tips to help teams complete the job efficiently and maintain compliance.
Why X-Ray Door Installation Matters For Compliance And Safety
X-ray door installation directly impacts your ability to pass radiation safety inspections and operate legally. Shielding requirements for imaging rooms are determined through project-specific calculations, typically prepared by a qualified medical physicist, and are enforced through state radiation control programs and local building authorities rather than a single national construction standard. Your door must contain radiation within the imaging suite while maintaining structural integrity and accessibility standards — and proper installation ensures the shielding design performs as intended, supporting successful inspection approval.
Preventing Radiation Leakage And Inspection Failures
Improper installation creates gaps or discontinuities in the shielding system that can open radiation leakage pathways — detectable by inspection equipment and flagged during post-installation radiation surveys. Even small errors around frames, wall interfaces, or threshold sealing can require remediation, delaying occupancy and increasing project costs. Inspectors and project physicists evaluate both shielding continuity and installation quality, examining perimeter seals, hardware integration, and documentation completeness.
Protecting Staff And Adjacent Areas From Exposure
Beyond regulatory compliance, proper installation protects staff and visitors from unnecessary radiation exposure. Adjacent spaces like waiting rooms, offices, and corridors must maintain safe radiation levels. Your door serves as the primary barrier preventing exposure in these areas.
Long-Term Performance And Maintenance Reliability
Installation quality affects long-term performance and maintenance requirements. Properly aligned doors with complete sealing systems resist wear and maintain shielding effectiveness for decades. Poor installation accelerates component degradation, requiring frequent adjustments and eventual replacement.
Selecting The Right X-Ray Door For Your Space
Choosing the correct X-ray door is an important step in building a compliant imaging environment. The right door must match shielding requirements, fit the structural opening, and support daily clinical operations without creating installation complications or inspection risks. Planning early also helps teams better estimate X ray door installation costs and avoid unexpected project delays.
Lead-Lined Door Options
Lead-lined doors are available in various configurations to meet your facility requirements and architectural specifications. Standard options include hollow-metal doors with internal lead sheets, solid-core wood doors with lead lining, and specialty doors for high-traffic or specific aesthetic needs.
Metal doors provide durability for high-use medical facilities. Lead sheets are sandwiched between steel faces, creating a rigid construction that resists warping and damage. These doors handle frequent opening cycles and maintain alignment over extended periods, making them well-suited for busy imaging suites with high daily throughput.
Lead lined wood doors suit environments where appearance matters. These doors accept standard finishes and hardware while providing required shielding. Wood doors require more careful handling during installation due to their weight and potential for damage if dropped or mishandled, so planning your lifting setup in advance is important.
Custom vs. Standard Doors
Standard doors fit common opening sizes and lead equivalency requirements. These doors ship quickly because they follow established manufacturing specifications. Pre-engineered standard doors work for most diagnostic X-ray rooms and dental imaging suites.
Custom doors accommodate unique architectural requirements, non-standard openings, or special shielding needs. Custom configurations include oversized dimensions, specific lead thicknesses, integrated vision panels, or specialized hardware mounting. Custom doors require additional fabrication time but ensure proper fit for unusual situations.
Measuring And Sizing Considerations
Accurate measurements prevent fit issues and installation delays. Measure the rough opening width and height at multiple points, noting any variations. Check for plumb and level conditions, as out-of-square openings require frame adjustments or shimming during installation.
Account for frame thickness when specifying door size. The door frame adds material around the rough opening, reducing the clear opening width and height. Standard frames add approximately 2 inches to each dimension, though specifications vary by manufacturer and frame type.
Consider door swing direction and clearance requirements. Doors must swing in the direction of egress per fire codes while providing adequate clearance for equipment, stretchers, or wheelchairs. Verify that door swing paths don't interfere with adjacent walls, equipment, or other doors.
Pre-Installation Planning And Site Assessment
Careful planning before installation helps prevent alignment issues, structural problems, and inspection delays. Evaluating the opening, structural support, and regulatory requirements ensures the X-ray door system fits correctly and performs as designed once installed.
Assessing Doorway Dimensions
- Verify Rough Opening Dimensions: Confirm that the rough opening dimensions match your door specifications. Measure the width, height, and depth at multiple points to identify irregularities, and record any discrepancies exceeding 1/4 inch. For lead-lined doors, even minor variations can affect frame seating.
- Wall Thickness And Frame Depth: Evaluate wall thickness to confirm the door and frame assembly have sufficient depth. Lead-lined walls are thicker due to shielding layers, so the frame must accommodate this added depth. A frame that fits standard walls may need adjustment when shielding materials increase the wall thickness.
- Inspect Opening Edges Examine the opening edges for damage, uneven surfaces, or protruding materials that could interfere with frame installation. Remove debris, loose materials, or obstructions to allow proper frame seating and alignment. At this stage, unaddressed surface irregularities often lead to shimming complications and gaps in the finished installation.
Evaluating Structural Support
- Understand Door Weight Requirements: Lead-lined doors weigh significantly more than standard doors due to internal lead content. A typical 3' x 7' door with 1/16" lead weighs 200+ pounds, while 1/8" lead doors can exceed 400 pounds.
- Inspect Wall Framing Strength: Check wall framing for adequate blocking and strong mounting surfaces. Header framing should include doubled or tripled studs capable of supporting door weight and operational stresses from repeated opening and closing.
- Reinforce Inadequate Framing: If existing framing appears insufficient, reinforce it with additional blocking or structural support before installing the door frame to prevent sagging or fastener failure. In some cases, frame lead lining kits can address shielding depth gaps without requiring full structural replacement.
- Verify Floor Stability & Clearance: Ensure the floor can support the door’s weight and repeated swinging motion. Uneven floors may require threshold adjustments to maintain proper door clearance and achieve full perimeter sealing.
Reviewing Building Codes And Permits
Permit requirements for imaging suite construction vary by jurisdiction and project scope, so confirm what's needed with your local building department before beginning work. Shielding installations are typically reviewed as part of the overall building or renovation permit process, but project teams should verify local requirements early to ensure that shielding calculations, door specifications, and installation plans are submitted appropriately.
Review all applicable building codes, including the International Building Code, state health department regulations, and local amendments, which address fire ratings, accessibility, egress, and radiation safety. Your installation must satisfy all applicable standards to pass inspection.
Identify required inspections and schedule them in advance. Radiation safety inspections often occur separately from standard building inspections and may involve different agencies, so coordinating inspection timing early helps avoid delays in project completion and occupancy.
Tools And Materials Needed For Installation
Having the right tools and materials prepared before installation begins helps keep the process efficient and safe. Proper equipment ensures accurate alignment, secure fastening, and complete sealing, all of which are critical for radiation shielding performance and long-term door reliability.
Essential Hand Tools
- Level & Measuring Tools: A 4-foot level is used to check plumb and level conditions during installation. Measuring tapes, chalk lines, and marking tools help with layout accuracy. A speed square is also useful for verifying frame corners and alignment.
- Drills & Fastening Equipment: Power drills with multiple bit sizes are required to drive fasteners and create mounting holes. Both corded and cordless drills should be available, along with impact drivers capable of securing heavy-duty fasteners into structural framing.
- Cutting And Finishing Tools: Hacksaws or reciprocating saws are used for frame adjustments or minor modifications. Files smooth cut edges, and grinders may be necessary when working with metal components during installation.
- Sealant & Edge Finishing Tools: Caulk guns are used to apply sealant at frame joints and other critical sealing points. Utility knives help trim excess materials and clean edges during the finishing stage of installation.
Safety Equipment
Lead-lined door weight requires lifting equipment or additional personnel. Door dollies or carts designed for heavy doors make positioning easier and safer. Use proper lifting techniques and ensure adequate personnel for each lift to prevent injuries.
Personal protective equipment includes work gloves, safety glasses, steel-toed boots, and back support belts when lifting heavy components. Respiratory protection may be necessary if cutting or grinding materials creates dust. Keep fire extinguishers accessible, particularly when using power tools or performing work that could generate sparks.
Hardware And Fastening Components
Your door package should include hinges rated for the door's weight, typically heavy-duty continuous hinges or multiple butt hinges. Standard hinges fail under the weight of lead-lined doors, causing sagging and operational problems.
Frame fasteners must provide secure attachment to structural framing. Use appropriate screws or anchors based on your wall construction type. Concrete or masonry walls require masonry anchors, while wood framing uses heavy-duty wood screws.
Sealing materials include lead-backed weatherstripping for the perimeter, threshold seals, and acoustic sealant for gap filling. These components complete the radiation barrier by eliminating pathways around the closed door.
A Step-by-Step Installation Process for X-Ray Doors
A structured installation process ensures the X-ray door performs as intended and passes inspection without delays. Careful alignment, secure fastening, and complete sealing are essential for maintaining radiation shielding integrity and long-term operational reliability.
Frame Preparation And Alignment
- Position The Frame In The Rough Opening: Place the frame into the rough opening and confirm clearances on all sides. Standard installations require 1/4" to 1/2" gaps between the frame and opening to allow proper shimming and adjustment. Proper lead lined door frame installation starts with accurate spacing to support alignment, sealing, and long-term door performance.
- Check The Frame For Plumb: Use a 4-foot level on both vertical legs to verify the frame is plumb. Adjust shims behind the frame as needed, checking measurements at the top, middle, and bottom of the opening.
- Level The Frame Head: Check the top of the frame with a level to ensure the head is perfectly horizontal. Adjust supporting shims until the frame head is level and stable within the opening.
- Recheck Vertical Alignment After Adjustments: After leveling the head, verify the vertical plumb again. Frame adjustments often affect both horizontal and vertical alignment, so confirming both ensures proper door operation.
- Square The Frame Using Diagonal Measurements: Measure diagonally from corner to corner across the frame. Equal diagonal measurements indicate the frame is square. Adjust shims until both diagonal measurements match within 1/8 inch.
Hanging The Door
- Install Hinges On The Door Panel: Attach hinges to the door panel according to the manufacturer's specifications. Place hinges at the correct locations, typically about 7 inches from the top and bottom, and add additional hinges evenly spaced for heavier lead-lined doors.
- Attach Hinge Components To The Frame: Mount the matching hinge components on the door frame before lifting the door into place. Confirm proper hinge alignment so the door will hang evenly once installed.
- Support The Door During Initial Positioning: Use shims or temporary supports to hold the door at the correct height while preparing to mount it. Proper support prevents strain on hinges and ensures accurate positioning when you install lead lined door assemblies.
- Lift & Align The Door With The Frame Hinges: Carefully lift the door into position and align the door-mounted hinges with the frame-mounted components. Because of the door’s weight, multiple installers should assist during this step.
- Secure Hinges & Check Door Movement: Begin fastening hinges with one screw in each hinge. Test the door swing and alignment before installing the remaining screws, then complete hinge fastening once proper operation is confirmed.
Sealing And Finishing
- Install Perimeter Sealing Components: Install sealing materials along all door edges in accordance with manufacturer guidance. Lead-backed weatherstripping compresses when the door closes to support proper door movement, air control, and acoustic performance. Shielding continuity is primarily maintained through the overlap and alignment of lead-lined door and frame components, so sealing materials should be installed carefully to avoid altering the shielding design.
- Apply Threshold Seals At The Door Bottom: Install threshold components and door sweeps in accordance with the manufacturer's specifications and applicable accessibility requirements, accounting for floor clearance and sweep coverage to ensure proper door movement and consistent closure. While these components support environmental sealing and smooth operation, overall radiation shielding continuity is achieved through the door's internal lead lining, frame design, and integration with adjacent wall shielding systems.
- Seal Frame-To-Wall Gaps: Fill gaps between the frame and the rough opening with appropriate construction sealants to support air control and finishing requirements, applying continuously to prevent voids. Shielding continuity at this interface is maintained through proper installation of lead-lined frames and integration with adjacent shielded wall assemblies — sealant materials support the overall installation but should not be relied upon as the primary means of radiation protection.
- Install & Adjust Door Hardware: Install door hardware, including handles, closers, and a lead lined cylindrical lockset rated for the door's weight. Heavy doors require closers with adequate capacity to control door speed and maintain consistent closing.
Testing For Gaps And Leaks
Inspect the closed door perimeter for visible gaps or light leakage, which may indicate radiation escape points. Confirm that sealing materials compress evenly along all edges. Operate the door through several open and closed cycles to ensure smooth movement, proper alignment, and complete closure before final inspection.
Final Thoughts
Successful X-ray door installation depends on careful planning, precise measurements, proper alignment, and complete sealing. When installation is executed correctly, imaging rooms remain compliant, inspections move smoothly, and long-term performance is maintained. Door lite openings in x-ray room doors must be glazed with X Ray Lead Glass to maintain the same attenuation rating as the door panel itself.
At Lead Glass Pro, we manufacture lead-lined doors engineered for predictable installation and reliable radiation protection, with fabrication and documentation designed to integrate smoothly into imaging suite construction workflows. Over 98% of standard orders ship within three business days, helping contractors coordinate installation without subcontractor delays or unnecessary schedule disruption. Clear product specifications and responsive production timelines keep your project moving from permit approval through inspection.
When crews use properly designed shielding systems and follow proven installation practices, projects reach completion with confidence. Take a look at our lead door installation resources for detailed documentation, product specifications, and expert guidance to support your crew.
Frequently Asked Questions About X-Ray Door Installation
What is an X-ray door, and why do I need radiation shielding in my imaging suite?
An X-ray door contains lead or dense shielding materials that prevent radiation from escaping imaging rooms. Regulations require shielding to protect staff and visitors in nearby spaces and to ensure imaging facilities operate safely and legally.
How much radiation shielding do I need in my X-ray room door?
Shielding requirements depend on equipment output, usage, and nearby occupancy. Medical physicists calculate lead equivalency based on radiation levels and room design. Many diagnostic rooms require about 1/16" lead, while higher workloads may require thicker protection.
What's the difference between a standard door and a lead-lined X-ray door?
Standard doors provide no radiation protection and are much lighter. Lead-lined X-ray doors contain internal lead sheets and require reinforced frames, heavy-duty hinges, and specialized sealing systems to maintain proper shielding performance.
Can I install an X-ray door myself, or do I need a professional contractor?
Experienced construction crews can install X-ray doors using proper techniques and in accordance with manufacturer specifications. Installation requires careful alignment, sealing, and safe handling of heavy components to ensure shielding performance and building code compliance.
What tools and materials do I need to install an X-ray door?
Typical installation uses carpentry tools such as levels, drills, measuring tools, and drivers. Teams also need lifting assistance, safety gear, radiation-rated sealing materials, along with hinges, frames, and hardware designed for the weight of lead-lined doors.
How long does it take to install a lead-lined X-ray door?
Most experienced crews complete X-ray door installation in four to eight hours. Frame alignment, door hanging, and sealing steps require careful execution, while complex conditions or integrated systems may slightly extend installation time.
