Key Takeaways:
- Physicist Specs Come First: Lead equivalency for every door opening must be calculated by a certified radiation physicist before ordering. No standard specification or prior project experience substitutes for a project-specific determination.
- Coordinate the Full Assembly: The frame, glass, hardware, and threshold all affect shielding continuity. Specifying the door panel alone without coordinating every component creates compliance gaps that surface at inspection.
- Documentation Closes the Project: Lead equivalency records, labeled glass, and hardware verification must all be confirmed and retained before the room is signed off. Missing paperwork can reopen the inspection process.
A lead-lined door specified without a physicist's input, a frame ordered without matching lead equivalency, and a vision panel installed with the wrong glass type. Any one of these gaps is enough to fail x-ray room door compliance and reopen a wall that was supposed to be finished.
At Lead Glass Pro, we supply lead-lined wood doors, metal doors, door lite kits, frame lining kits, and compatible hardware to construction teams and design professionals across the U.S. Our products are fabricated to compliance standards, and our team supports specification decisions from the first inquiry through delivery.
The following checklist covers everything architects and facility managers need to verify, from drawings to final acceptance.

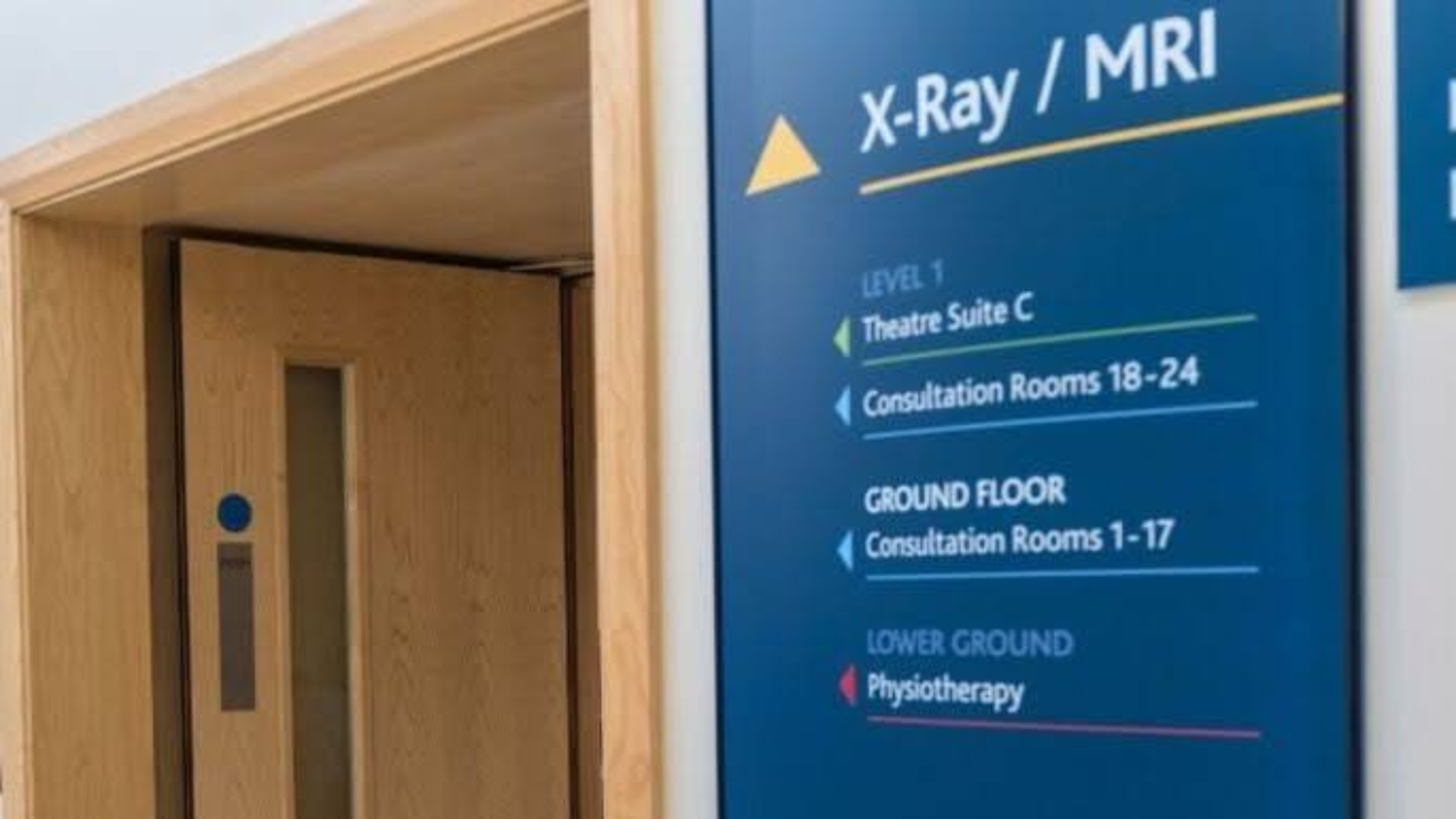

What Makes An X-Ray Room Door Different From A Standard Door
An X-ray room door carries shielding responsibilities that a standard door was never designed to meet. Knowing what separates the two prevents specification gaps that create compliance problems later.
A standard door controls access and provides acoustic separation. An x-ray room lead door does all of that while also containing ionizing radiation within the room. The lead lining inside the door assembly absorbs X-ray, gamma, alpha, and beta photon radiation, ensuring the opening in a shielded wall does not become an unshielded gap when the door is closed.
Every component of the assembly carries shielding responsibility. The frame, hardware, vision panel, and threshold all contribute to or detract from shielding continuity at the opening. Meeting x-ray room door requirements means every component is specified, fabricated, and installed as a coordinated shielding system.
Who Determines The Shielding Requirement For The Door
The lead equivalency required at the door opening is a calculation, and it must come from the right person. A qualified radiation physicist, medical health physicist, or certified county health officer must determine the X-ray room shielding requirements for every opening in the shielded room, including the door. The calculation accounts for equipment type, energy level, workload, and the occupancy of adjacent spaces.
The Compliance Checklist: From Specification To Final Inspection
X-ray room compliance standards require that every element of the door assembly be verified at each stage of the project. Use this checklist to track compliance from start to finish.
Specification Stage
- Physicist's lead equivalency calculation confirmed and documented for the door opening.
- Fire rating requirement confirmed by the fire and life safety consultant or authority having jurisdiction.
- Door construction type selected, wood or metal, based on facility requirements and lead equivalency.
- Frame lead lining specified to match the door's lead equivalency
- Vision panel format confirmed, with impact-resistant X-ray safety glass specified for all door applications.
- Hardware specified as compatible with lead-lined assemblies, including lead-lined locksets and rated hinges.
Fabrication And Delivery Stage
- Order placed with confirmed lead equivalency, dimensions, fire rating if applicable, and hardware requirements.
- Rough opening dimensions verified against frame assembly dimensions before delivery.
- Forklift or appropriate equipment staged on site for delivery of heavy door assemblies.
- All components are inspected upon delivery in the presence of the driver before signing the receipt.
Installation Stage
- Frame installed plumb, level, and square before door is hung. Teams preparing for this stage can reference our X Ray Door Installation guide for crew-ready details.
- Door hung with correct clearances at head, jamb, and threshold.
- Threshold continuity verified to maintain shielding at the floor line.
- Vision panel installed with correct glass format and lead-lined vision frame.
- All hardware is installed and confirmed compatible with the lead-lined assembly.
Pre-Acceptance Stage
- Full assembly reviewed against the physicist's specification.
- Documentation confirming the lead equivalency of the door and frame retained for inspection records.
- Door operation tested for smooth function, positive latching, and correct closer operation if required.
What Architects And Facility Managers Must Confirm Before And After Fabrication
From drawings to delivery, both architects and facility managers carry specific responsibilities that determine whether a lead-lined door assembly passes inspection without corrections.
Lead Equivalency And Door Schedule Documentation
The door schedule must list the required lead equivalency for the radiation shielding door requirements opening. This figure comes from the radiation physicist's report. Facility managers must also request and retain documentation confirming the installed lead equivalency of both the door and frame before accepting the assembly.
Frame, Rough Opening, And Perimeter Seal
The frame must be specified as lead-lined to match the door's equivalency. Rough opening dimensions must account for the full frame thickness. At acceptance, the perimeter seal between the frame and wall assembly must be intact. Gaps at the frame perimeter create unshielded paths that affect overall room shielding performance.
Vision Panel Specification And Label Verification
X-ray room compliance standards require impact-resistant X-ray safety glass in all door applications. Architects must specify this on the drawings with panel dimensions and placement shown. Facility managers must confirm the ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II label is visible and intact on the installed glass before sign-off.
Hardware Schedule And Function Testing
Lead-lined locksets, compatible hinges, and closers where required must appear on the hardware schedule. Upon acceptance, all hardware must be tested for correct function. Locksets must engage cleanly, hinges must support the door without sagging, and closers must return the door to a fully latched position consistently.
Sourcing A Door Assembly That Keeps The Project On Track
Fabrication timelines, documentation quality, and product coordination all determine whether the door assembly arrives ready to install and ready to inspect.
Wood And Metal Options From A Single Source
We supply both lead-lined wood and metal doors for x-ray room door requirements across medical, dental, and industrial facilities. Having both options available from a single supplier simplifies procurement and ensures the door, frame, and accessories are fabricated as a coordinated assembly. Teams that want a broader look at product selection can review our X Ray Shielding resources before placing an order.
Accessories Supplied Together With The Door
A compliant lead-lined door assembly includes more than the door panel. Lead Glass Pro supplies frame lead lining kits, lead-lined cylindrical locksets, door lite kits with impact-resistant X-ray safety glass, and compatible door accessories alongside the door itself. Sourcing the full assembly from one supplier eliminates compatibility gaps between components.
Custom Lead Thickness To Match The Specification
Every project has a physicist-specified lead equivalency that the door must meet exactly. We fabricate lead-lined doors with custom lead thicknesses to match whatever the specification requires. Relying on standard lead thickness assumptions creates compliance risk. For teams coordinating full-room shielding scopes, our Lead Shielding for Radiation Imaging resource covers how door assemblies fit into broader shielding systems.
Delivery Timeline That Supports The Construction Schedule
A door assembly that arrives late holds up frame installation, hardware rough-in, and downstream trades. We fabricate and ships lead-lined door assemblies with turnaround times designed to support active construction schedules. Confirming the specification and placing the order early in the project timeline is the most reliable way to keep the installation window intact.
Final Thoughts
X-ray room door compliance runs from the physicist's specification through drawing documentation, fabrication, installation, and final acceptance. We supply lead-lined wood doors, metal doors, frame lead lining kits, door lite kits with impact-resistant X-ray safety glass, lead-lined locksets, and compatible accessories, all fabricated to meet radiation shielding compliance requirements within a week.
When your project requires a door assembly that arrives complete, documented, and ready for inspection, reach out to the Lead Glass Pro team.
Frequently Asked Questions About X-Ray Room Door Compliance
What is X-ray room door compliance?
It means the door assembly meets all radiation shielding, fire rating, and building code requirements for the opening.
Who determines the lead equivalency for an X-ray room door?
A certified radiation physicist or medical health physicist determines the required lead equivalency for every door opening.
Does the door frame need to be lead-lined?
Yes. The frame must match the door's lead equivalency to maintain shielding continuity across the full opening.
Does Lead Glass Pro supply complete door assemblies?
Yes. Lead Glass Pro supplies wood doors, metal doors, frame lining kits, door lite kits, locksets, and compatible door accessories.
What should facility managers verify before accepting a lead-lined door?
Verify lead equivalency documentation, labeled vision panel glass, perimeter seal condition, and correct hardware function before sign-off.
Can standard hardware be used on a lead-lined X-ray room door?
No. Hardware must be compatible with the lead-lined assembly weight and construction. Lead Glass Pro supplies lead-lined locksets and rated accessories.
