Why Lead Content Alone Does Not Determine Shielding Performance

One of the most common misconceptions in radiation shielding is the idea that higher lead content automatically means better shielding performance.

While lead content is certainly important, it is only one part of a much larger equation. Effective radiation shielding depends on several interacting factors, including:

• Material density
• Material thickness
• Radiation energy levels
• Shielding continuity
• Installation quality
• Overall assembly design

Focusing only on lead content without considering these other variables can lead to incorrect assumptions, improper product selection, and even failed inspections.

This guide explains why shielding performance is more complex than simply “more lead equals better protection.”

What Does Lead Content Actually Mean?

In radiation shielding materials, lead is used because of its high density and excellent radiation attenuation properties.

Lead content generally refers to the amount of lead or lead oxide incorporated into a material.

Examples include:

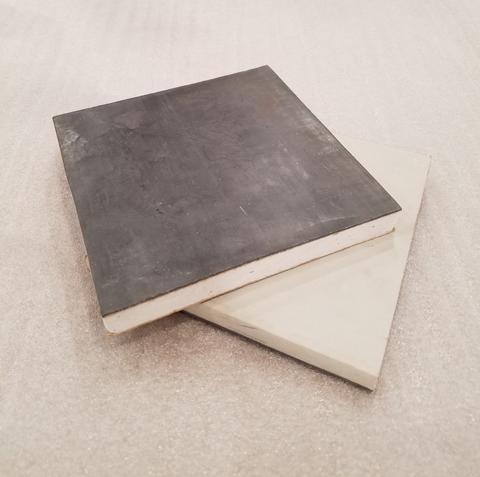

• Lead-lined drywall
• Sheet lead
• Lead glass
• Lead acrylic

In products such as X-Ray Lead Glass, lead oxide is added to the glass composition to allow the material to absorb radiation while remaining transparent.

However, lead content by itself does not fully describe how the material will perform in a real-world shielding application.

Shielding Performance Depends on Radiation Attenuation

The true measure of shielding effectiveness is radiation attenuation—not simply raw lead content.

Attenuation refers to how effectively a material reduces the intensity of radiation passing through it.

Attenuation depends on several factors working together, including:

• Density of the material
• Total thickness
• Atomic composition
• Radiation energy levels

Two materials with different lead content may perform similarly if their overall attenuation characteristics are comparable.

Thickness Matters Too

One of the biggest misconceptions is assuming that lead concentration alone determines shielding effectiveness.

In reality, shielding performance depends heavily on the total thickness of the material as well.

For example:

• A thinner material with higher lead concentration may perform similarly to a thicker material with lower concentration
• Different products are engineered to achieve the same lead equivalency through different material compositions

This is why shielding products are usually specified by lead equivalency rather than by lead percentage alone.

What Is Lead Equivalency?

Lead equivalency is the standard way shielding performance is measured in radiation protection applications.

Instead of describing only lead content, lead equivalency describes how the material performs compared to solid sheet lead.

Common ratings include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

A material rated at 2.0mm Pb provides radiation attenuation equivalent to 2.0mm of solid lead under specified testing conditions.

This provides a far more meaningful performance measurement than lead concentration alone.

Radiation Energy Levels Change Everything

Shielding performance is highly dependent on the energy level of the radiation source.

Higher-energy imaging systems require greater attenuation than lower-energy systems.

For example:

• A dental X-ray room may require less shielding
• A CT room often requires substantially higher shielding levels

A material that performs well at one energy level may not provide sufficient protection at another.

This is why shielding calculations are based on:

• Equipment type
• Beam energy
• Room layout
• Occupancy conditions

Not simply on lead content.

Density Is Extremely Important

Density plays a major role in shielding performance.

Denser materials generally attenuate radiation more effectively because there is more mass available to absorb radiation energy.

This is one reason lead glass is so effective for shielding applications.

The dense lead oxide composition allows the glass to provide strong attenuation while maintaining visibility through the panel.

Because of this density, X-Ray Lead Glass is significantly heavier than ordinary commercial glazing.

Shielding Continuity Is Often More Important Than Lead Content

Even highly effective shielding materials can fail if the shielding system contains gaps or weak points.

Radiation shielding systems must function as one continuous protective barrier.

This includes:

• Walls
• Frames
• Doors
• Windows
• Penetrations
• Transitions

A perfectly shielded wall can still fail inspection if:

• The frame is unshielded
• Lead overlaps are missing
• Window systems are installed incorrectly
• Penetrations are not protected

This is why complete shielding assemblies are so important.

Complete Lead-Lined X-Ray Windows help maintain shielding continuity around the entire opening.

Testing Conditions Matter

Shielding materials are tested under specific conditions using controlled radiation energy ranges.

The same material may perform differently depending on:

• X-ray energy levels
• Beam angles
• Material thickness
• Testing methods

This is another reason why simple lead percentage comparisons can be misleading.

Why “More Lead” Is Not Always Better

Using excessive shielding may:

• Add unnecessary cost
• Increase structural weight
• Create installation challenges
• Complicate framing requirements

The correct goal is not maximum lead content—it is the correct shielding performance for the specific application.

This is why shielding reports prepared by medical physicists are so important.

Shielding Reports Determine the Real Requirements

The proper shielding level for a room is determined through a radiation shielding report.

The report evaluates:

• Imaging equipment type
• Radiation energy output
• Beam direction
• Room occupancy conditions
• Distance to adjacent spaces

The shielding report then specifies the required lead equivalency for walls, windows, and doors.

Choosing materials based solely on lead content without reviewing the shielding report can create serious compliance issues.

Common Misconceptions About Lead Content

Some of the most common myths include:

• “Higher lead percentage always means better shielding”
• “Thickness does not matter”
• “All lead glass performs the same”
• “The frame does not need shielding if the glass is shielded”
• “More shielding is always better”

In reality, proper radiation protection depends on the complete shielding system—not a single material property.

Choosing the Right Shielding Products

When selecting radiation shielding materials, important considerations include:

• Required lead equivalency
• Equipment energy levels
• Material density
• Glass thickness
• Frame compatibility
• Shielding continuity

For complete shielding assemblies, explore our Lead-Lined X-Ray Windows.

For standalone shielding glazing products, view our X-Ray Lead Glass.

Final Thoughts

Lead content is only one part of radiation shielding performance. Effective attenuation depends on multiple factors working together, including density, thickness, energy levels, shielding continuity, and installation quality.

This is why radiation shielding products are specified by lead equivalency and overall system performance—not simply by lead percentage alone.

Understanding these differences helps architects, contractors, and facility owners make better decisions and avoid costly shielding mistakes.
