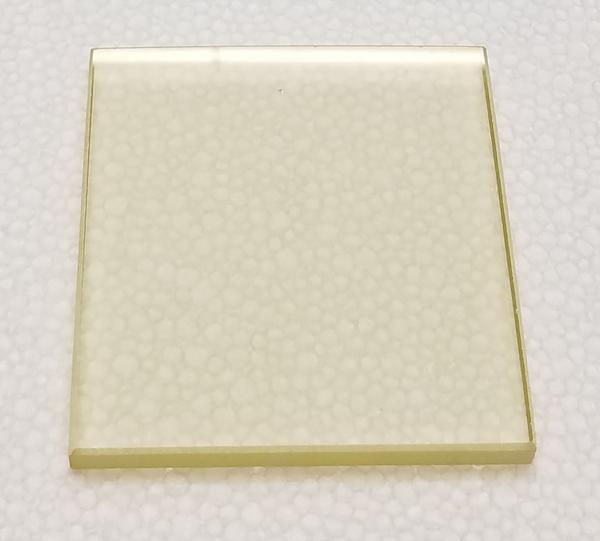

What Makes Medical Lead Glass Different From Standard Glass?

At first glance, medical lead glass may look similar to ordinary commercial glass. Both are transparent, both are used in windows and viewing areas, and both can be installed in framed openings.

However, medical lead glass is fundamentally different from standard glass in both composition and performance.

Medical lead glass is specifically engineered to provide radiation shielding while maintaining visibility into imaging and treatment rooms. Standard commercial glass provides little to no meaningful radiation protection.

Understanding these differences is important for architects, contractors, healthcare facilities, and anyone involved in radiation shielding projects.

This guide explains what makes medical lead glass unique and why it is required in X-ray, CT, fluoroscopy, and other imaging environments.

The Primary Difference: Radiation Shielding

The biggest difference between medical lead glass and standard glass is radiation attenuation.

Medical lead glass is designed to reduce the intensity of radiation passing through it. Standard glass is not.

This shielding ability allows technicians, doctors, and operators to safely observe patients and imaging equipment from protected control areas.

Without shielding glass, radiation could pass through the viewing window and expose people outside the room.

Medical Lead Glass Contains Lead Oxide

Medical lead glass contains lead oxide within the glass composition itself.

The lead oxide increases the density of the glass and allows it to absorb radiation energy effectively.

Standard commercial glass does not contain this specialized shielding composition.

Because of the added density, X-Ray Lead Glass is significantly heavier than ordinary glass of the same size.

Lead Glass Is Much Denser Than Standard Glass

Density is one of the key factors that affects radiation attenuation.

Medical lead glass is engineered with a much higher density than standard float glass, allowing it to provide effective shielding while remaining transparent.

This added density is why lead glass:

• Weighs more
• Requires specialized handling
• Needs proper structural support
• Requires compatible framing systems

Standard commercial glazing systems are often not designed to support the weight of shielding glass without modification.

Medical Lead Glass Is Rated by Lead Equivalency

Medical lead glass is typically specified by lead equivalency, which describes the shielding performance of the glass compared to solid sheet lead.

Common lead equivalencies include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The required shielding level depends on:

• Type of imaging equipment
• Radiation energy levels
• Room layout
• Occupancy conditions

Standard glass does not have a lead equivalency rating because it is not intended for radiation protection.

Medical Lead Glass Is Used in Specialized Environments

Lead glass is commonly used in:

• X-ray rooms
• CT suites
• Fluoroscopy rooms
• Dental imaging rooms
• Veterinary imaging facilities
• Nuclear medicine areas
• Industrial radiography rooms

These environments require controlled radiation protection that ordinary glazing materials cannot provide.

Lead Glass Requires Shielded Framing Systems

Another major difference is that lead glass typically requires specialized lead-lined frames.

In radiation shielding applications, the frame surrounding the glass must maintain shielding continuity around the perimeter of the opening.

Using standard commercial frames with lead glass can create radiation leakage points around the edges.

This is why complete Lead-Lined X-Ray Windows are commonly used in medical shielding applications.

Medical Lead Glass Is Not the Same as Tempered Safety Glass

Standard commercial glazing is often tempered to improve impact resistance and meet safety glazing requirements.

Medical lead glass cannot be thermally tempered because of its specialized composition.

However, safety-rated lead glass assemblies can still be achieved through:

• Laminated safety backing
• Specialized glazing systems
• Safety-rated assemblies where required

Building code requirements may still apply depending on the installation location.

Lead Glass Is Softer Than Standard Glass

Because of its lead oxide composition, lead glass is generally softer than standard commercial float glass.

This means it can be more susceptible to:

• Scratching
• Edge damage
• Stress cracking

Lead glass requires careful handling during:

• Transportation
• Storage
• Installation

Improper handling is one of the most common causes of damage before installation.

Medical Lead Glass Is Typically Custom Manufactured

Unlike standard stock glazing products, medical lead glass is often manufactured specifically for each project.

Custom fabrication may include:

• Specific lead equivalencies
• Custom dimensions
• Safety glazing configurations
• Compatibility with lead-lined frames

Because of this, accurate measurements and coordination are extremely important before fabrication begins.

Medical Lead Glass Must Meet Shielding Requirements

The required shielding performance is usually determined by a radiation shielding report prepared by a medical physicist.

The report evaluates:

• Equipment type
• Radiation energy output
• Room layout
• Beam direction
• Occupancy of surrounding areas

The report then specifies the required lead equivalency for walls, windows, and doors.

Choosing lead glass without reviewing the shielding report can create serious compliance issues.

Lead Glass Is Part of a Complete Shielding System

Medical lead glass does not function independently.

The complete shielding system usually includes:

• Lead-lined walls
• Lead-lined frames
• Shielded doors
• Proper overlap between shielding materials
• Continuous shielding around penetrations and transitions

Even properly rated lead glass can fail to provide adequate protection if the surrounding system is not installed correctly.

Common Misconceptions About Lead Glass

Some of the most common misunderstandings include:

• Assuming standard glass blocks radiation effectively
• Believing all lead glass has the same shielding performance
• Thinking the frame does not need shielding
• Assuming lead glass can be tempered like ordinary safety glass

Medical lead glass is a highly specialized shielding product—not simply “thicker glass.”

Choosing the Right Medical Lead Glass

When selecting lead glass for a project, important considerations include:

• Required lead equivalency
• Frame compatibility
• Glass size
• Safety glazing requirements
• Wall thickness coordination
• Shielding continuity

For complete shielding assemblies, see our Lead-Lined X-Ray Windows.

For standalone shielding glazing products, explore our X-Ray Lead Glass.

Final Thoughts

Medical lead glass is fundamentally different from standard commercial glass because it is engineered specifically for radiation shielding applications.

Its dense lead oxide composition allows it to attenuate radiation while maintaining visibility into imaging rooms and controlled areas.

Because lead glass is part of a complete shielding system, proper specification, framing, and installation are critical for both safety and compliance.
