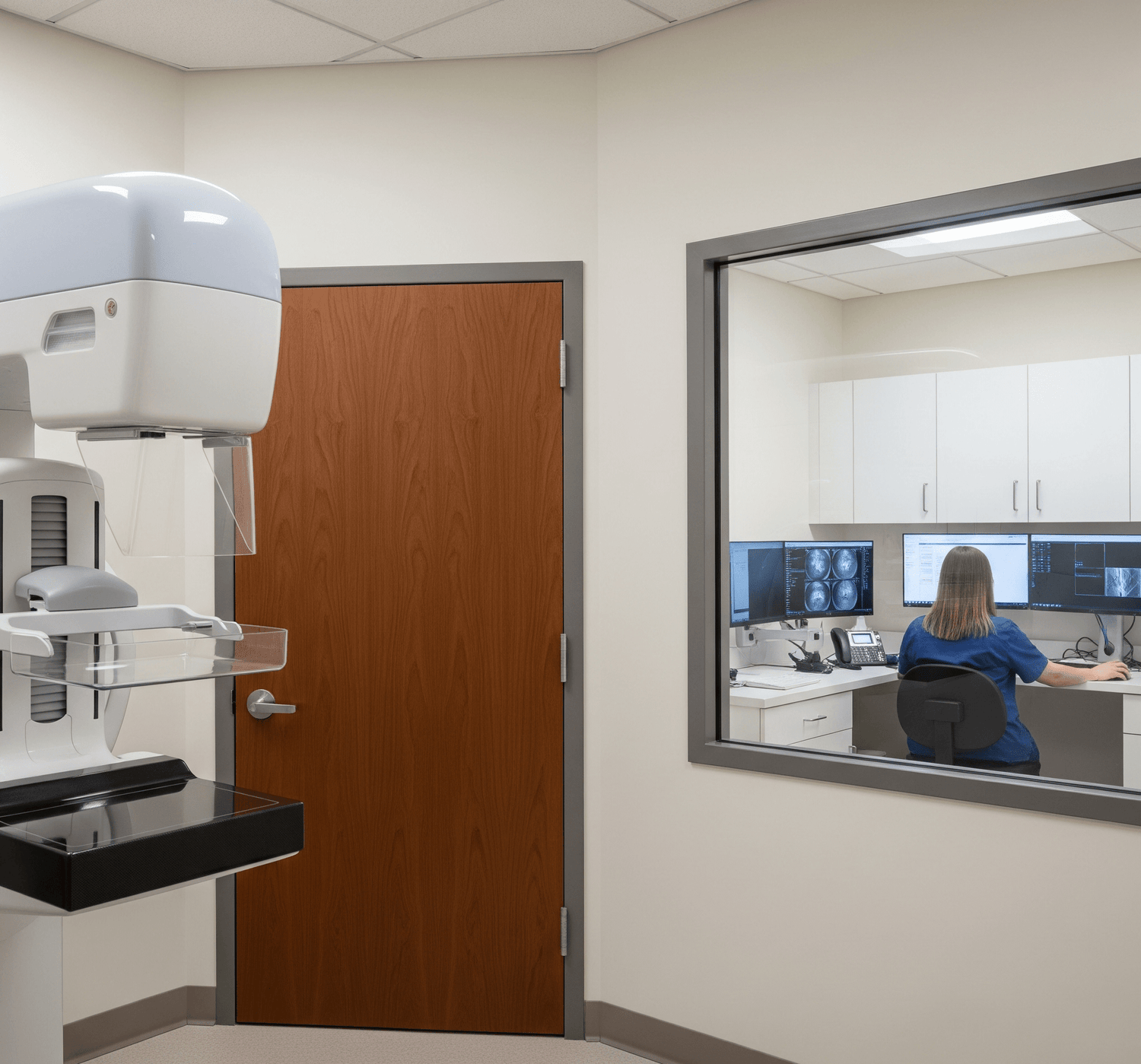

What Happens If Your X-Ray Room Fails Inspection?
Failing a radiation shielding inspection is more than just a delay—it can shut down an entire imaging room until the issue is corrected. That means lost revenue, project setbacks, and expensive rework that could have been avoided with proper planning.
For contractors, architects, and facility owners, understanding what causes inspection failures is critical to avoiding costly surprises at the end of a project.
If you want to see how proper shielding systems are installed correctly the first time, you can review our video resources here:
👉 https://leadglasspro.com/pages/videos
What Does “Failing Inspection” Actually Mean?
In radiation shielding projects, inspection failure occurs when a facility does not meet the required safety standards outlined in its shielding design report and applicable regulations.
This typically happens during final approval by a state radiation control agency or health inspector.
Common consequences include:
- Delays in opening the imaging room
- Mandatory corrective construction work
- Repeat inspections and additional fees
- Equipment downtime or installation delays
Most Common Reasons X-Ray Rooms Fail Inspection
1. Incorrect Lead Equivalency
One of the most common failures is using materials that do not match the required shielding levels specified in the physicist’s report.
For example:
- Installing 1.5 mm Pb glass when 2.0 mm Pb is required
- Using standard drywall instead of lead-lined drywall
This directly violates shielding requirements based on NCRP Report No. 147.
2. Gaps in Shielding Systems
Radiation does not respect seams or shortcuts.
Common issues include:
- Unsealed joints between drywall sheets
- Improperly installed lead glass frames
- Penetrations (electrical, HVAC) without shielding protection
Even small gaps can result in measurable radiation leakage.
3. Frame Incompatibility with Lead Glass
Lead glass must be installed in a properly rated framing system.
Failures often occur when:
- Non-rated frames are used
- Glass is not properly seated or supported
- Lead continuity is broken at the frame interface
4. Missing or Incorrect Shielding Documentation
Inspectors rely heavily on documentation, including:
- Shielding design reports
- Material specifications
- Installation verification records
If documentation does not match installed materials, the project can fail immediately.
5. Changes Made During Construction Without Review
One of the most dangerous mistakes is deviating from the shielding plan without physicist approval.
Even small changes—like relocating a window—can alter radiation exposure calculations.
Relevant Standards and Compliance Requirements
- NCRP Report No. 147 – Structural shielding design for medical X-ray facilities
- NCRP Report No. 151 – Dental radiation protection guidance
- ASTM C1036 – Standard specification for flat glass
- ASTM C1172 – Laminated architectural safety glass
- IEC 61331 – Protective devices against diagnostic X-radiation
What Happens After a Failed Inspection?
If your X-ray room fails inspection, the process typically follows these steps:
- Official inspection report is issued
- Deficiencies are documented (often with required corrections)
- Radiation use may be restricted or prohibited
- Corrective work must be completed
- Re-inspection is scheduled
This process can take days to months depending on severity.
How to Avoid Inspection Failure
The key is simple: build exactly to the shielding plan.
- Use materials that match required lead equivalency
- Install lead glass with compatible shielding frames
- Seal all joints and penetrations properly
- Follow NCRP-based shielding design exactly
- Have a physicist review any field changes
Rooms that fail inspection often have gaps at the threshold — properly installed Lead Lined Doors resolve most door-related failures.
Where Lead Glass Often Becomes the Failure Point
Lead glass systems are one of the most common inspection failure points because:
- Incorrect lead rating is ordered
- Frame systems are not properly specified
- Installation does not maintain shielding continuity
This is why matching glass, frame, and wall shielding is critical.
Final Thoughts
Failing a radiation shielding inspection is expensive, disruptive, and entirely preventable. Unshielded electrical penetrations are a common inspection failure point — fitting Lead Boxes before the inspection avoids costly rework.
Most failures come down to three issues: incorrect materials, poor installation practices, or deviations from the shielding report. Window assemblies without proper lead equivalency are a frequent inspection failure point — replacing them with compliant Lead Lined Windows solves the issue.
By following NCRP-based design requirements and using properly specified shielding products—including correctly rated lead glass—you can avoid rework and keep your project on schedule.
Frequently Asked Questions (FAQs)
What happens if my X-ray room fails inspection?
You may be required to halt operations, fix deficiencies, and undergo a re-inspection before use is approved.
What is the most common reason for failure?
Incorrect shielding materials, especially wrong lead equivalency in walls or lead glass.
Can I still operate a room that failed inspection?
In most cases, no. Radiation use is restricted until compliance is achieved.
Who determines if a room passes inspection?
State radiation control agencies or authorized inspectors, based on NCRP 147 shielding requirements.
Does lead glass cause inspection failures?
Yes, if it is incorrectly rated, improperly installed, or not matched to the shielding design.
What standards apply to inspection compliance?
NCRP 147, ASTM C1036, ASTM C1172, and IEC 61331 are commonly referenced standards.
How can I avoid failing inspection?
Follow the shielding report exactly, use correct materials, and ensure proper installation of all shielding components.
