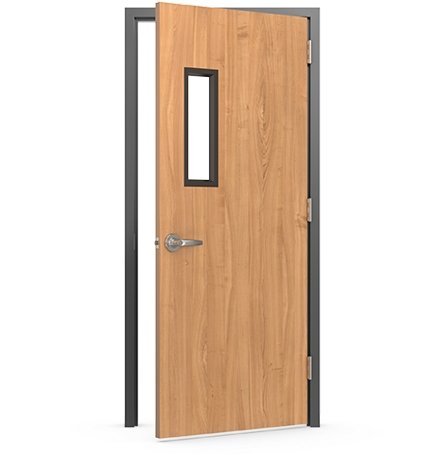

Understanding Glass Requirements in X-Ray Doors

X-ray doors are one of the most specialized components in a radiation shielding project. In addition to functioning like a standard commercial door assembly, they must also maintain continuous radiation protection while meeting building code, hardware, and safety glazing requirements.

One of the most important—and often misunderstood—parts of an X-ray door assembly is the lead glass vision panel.

Incorrect glass selection, improper framing, or poor shielding coordination can lead to:

• Radiation leakage
• Failed inspections
• Code compliance issues
• Costly rework
• Project delays

This guide explains the key glass requirements commonly associated with X-ray doors and what architects, contractors, and specifiers should understand before ordering.

Why X-Ray Door Glass Is Different

Unlike standard commercial door lites, the glass used in X-ray doors must provide radiation shielding in addition to visibility.

This shielding is achieved using specialized X-Ray Lead Glass, which contains lead oxide to absorb radiation while remaining transparent.

The glass must work together with:

• The lead-lined door core
• The frame shielding
• The surrounding wall shielding
• The glazing system

The goal is to maintain continuous radiation protection throughout the entire opening.

Lead Equivalency Is the Most Important Requirement

The primary specification for X-ray door glass is the required lead equivalency.

Lead equivalency describes how much radiation shielding the glass provides compared to a specific thickness of solid lead.

Common specifications include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The required shielding level is usually determined by:

• The shielding report
• The medical physicist
• Project specifications

In most cases, the glass shielding level should match the shielding requirements of the door and surrounding wall.

Vision Lite Size Must Be Coordinated Carefully

The size and location of the glass vision panel are important for both functionality and code compliance.

Common considerations include:

• Required viewing area
• Door hardware locations
• Fire rating limitations
• Structural integrity of the door
• Shielding continuity

Larger vision lites may require additional reinforcement or specialized glazing systems depending on the application.

Lead Glass Cannot Be Tempered

One common misconception is that lead glass can be tempered like standard safety glass.

In reality, lead glass cannot be thermally tempered because of its composition.

However, safety-rated assemblies can still be achieved through:

• Laminated safety backing
• Specialized safety glazing systems
• Fire-rated glazing assemblies where applicable

Building code requirements may still require safety glazing depending on the door location and application.

Safety Glazing Requirements

Glass installed in doors is commonly subject to safety glazing requirements under building codes.

This means the X-ray door vision panel may require:

• Laminated safety glass backing
• Impact-rated glazing assemblies
• Safety glazing certification

These requirements are separate from the radiation shielding requirements and must both be addressed in the final assembly.

Failing to coordinate safety glazing early is one of the most common specification mistakes.

Fire-Rated Door Requirements

Many healthcare facilities require fire-rated door assemblies in addition to radiation shielding.

If the X-ray door is fire rated, the glazing system must also comply with the fire rating requirements.

Common considerations include:

• Maximum allowable vision lite size
• Approved fire-rated glazing systems
• Compatible fire-rated glazing beads
• Fire-rated frame requirements

Not all lead glass assemblies are available with fire-rated configurations, so this should be coordinated early during design.

The Frame Must Also Be Lead Lined

One of the most common mistakes in radiation shielding projects is focusing only on the glass itself.

In most applications, the door frame must also be lead lined to maintain shielding continuity around the opening.

If the frame is not properly shielded, radiation leakage can occur around the perimeter of the door assembly.

The complete system should include:

• Lead-lined door
• Lead-lined frame
• Shielded vision lite system
• Proper lead overlap at transitions

Glass Weight Is Often Overlooked

Lead glass is significantly heavier than standard commercial glazing because of its dense shielding composition.

Larger door lites and higher lead equivalencies increase the weight substantially.

The glazing system and door construction must be designed to support:

• The glass weight
• Repeated door operation
• Long-term structural stability

Improper support can create stress on the glass and increase the risk of breakage.

Shielding Continuity Around the Vision Lite

The glazing system itself must maintain shielding continuity around the perimeter of the glass opening.

This typically involves:

• Lead-lined glazing beads
• Shielded lite kits
• Proper overlap between shielding materials

Even small gaps around the lite opening can become leakage points during radiation testing.

Common Specification Mistakes

Some of the most common issues with X-ray door glazing specifications include:

• Incorrect lead equivalency
• Missing safety glazing requirements
• Using non-shielded lite kits
• Oversized vision panels in fire-rated doors
• Failing to coordinate frame shielding
• Incorrect glass thickness assumptions

These issues can lead to failed inspections, rejected submittals, and expensive field corrections.

Why Early Coordination Matters

X-ray door assemblies affect multiple trades and disciplines, including:

• Architects
• Door suppliers
• Glaziers
• Shielding consultants
• General contractors

Coordinating the glazing requirements early helps prevent specification conflicts and fabrication delays.

Because many radiation shielding components are custom manufactured, late changes can impact project schedules significantly.

Choosing the Right Lead Glass System

When selecting lead glass for an X-ray door, important considerations include:

• Lead equivalency
• Safety glazing requirements
• Fire rating requirements
• Lite size limitations
• Frame compatibility
• Shielding continuity details

For shielding glazing products, explore our X-Ray Lead Glass.

For complete shielding window systems and assemblies, see our Lead-Lined X-Ray Windows.

Final Thoughts

The glass requirements in X-ray doors are far more complex than standard commercial glazing because the assembly must satisfy both radiation shielding and building code requirements simultaneously.

Proper coordination between the lead glass, glazing system, frame, and door assembly is critical to maintaining shielding continuity and achieving successful inspections.

By understanding the key requirements early in the project, architects and contractors can avoid costly specification errors and installation issues later in construction.
