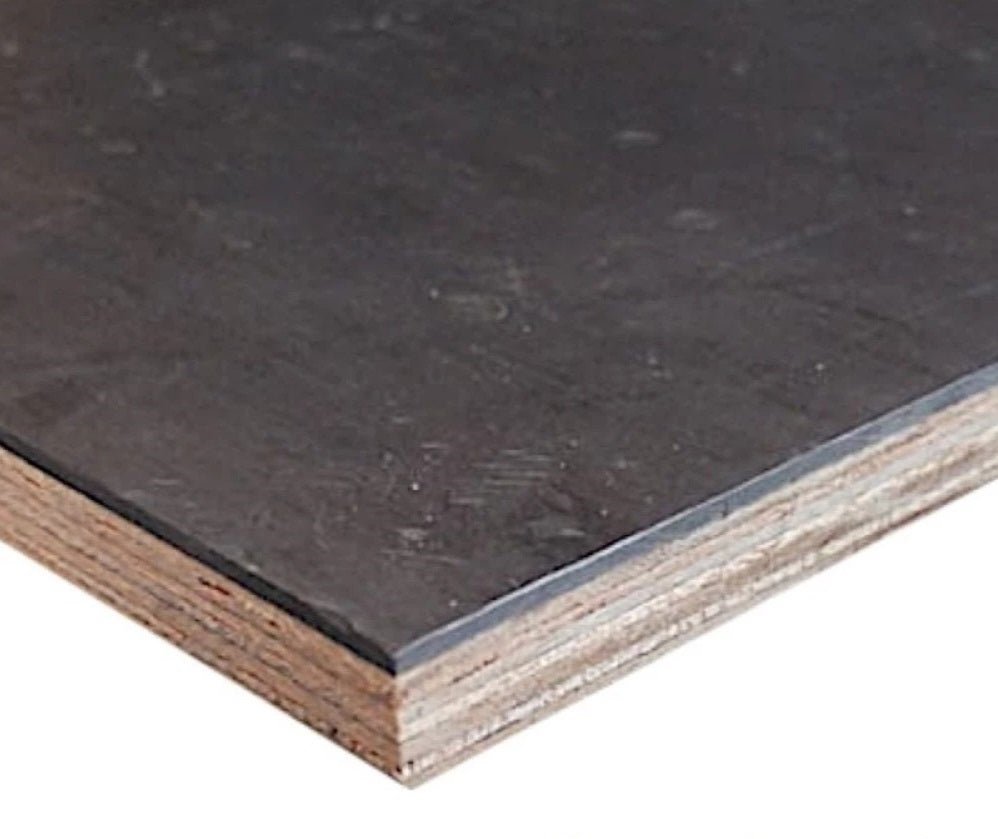

Reading a Radiation Shielding Report Explained

Radiation shielding reports are one of the most important documents in any medical imaging or X-ray room construction project. These reports determine how much shielding is required to protect people outside the room from unnecessary radiation exposure.

However, for contractors, architects, and facility owners who do not work with shielding reports regularly, the documents can seem confusing and highly technical.

This guide explains the basics of how radiation shielding reports work, what information they contain, and how they are used to specify products such as lead-lined walls, doors, and lead glass windows.

What Is a Radiation Shielding Report?

A radiation shielding report is a document prepared by a qualified medical physicist or radiation shielding consultant. The report evaluates the radiation produced by imaging equipment and determines the shielding requirements needed for the room.

The goal is to ensure that radiation exposure in surrounding occupied areas remains within acceptable regulatory limits.

Shielding reports are commonly used for:

• X-ray rooms
• CT rooms
• Fluoroscopy suites
• Dental imaging rooms
• Veterinary imaging rooms
• Nuclear medicine facilities
• Industrial radiography rooms

Why Shielding Reports Matter

The shielding report serves as the foundation for the room’s radiation protection design.

Without a proper shielding report, contractors and suppliers would not know:

• How much lead shielding is required
• Which walls require protection
• What lead equivalency is needed for windows
• How doors and penetrations should be shielded

The report helps ensure the room can pass inspection and operate safely once construction is complete.

Who Creates the Shielding Report?

Radiation shielding reports are typically prepared by:

• Medical physicists
• Radiation safety consultants
• Shielding design specialists

These professionals analyze the imaging equipment and room layout to determine the required shielding levels.

The shielding supplier does not usually create the shielding report unless specifically contracted to do so.

What Information Is Included in a Shielding Report?

While formats vary, most shielding reports include:

• Room layout drawings
• Equipment type and location
• Radiation beam direction
• Occupancy classifications
• Shielding calculations
• Required lead equivalencies

The report may also identify:

• Primary barriers
• Secondary barriers
• Shielding material types
• Window and door requirements

Understanding Lead Equivalency

One of the most important parts of the shielding report is the required lead equivalency.

Lead equivalency describes how much radiation shielding is needed for a specific area.

Common requirements include:

• 1/16" lead
• 1.0mm Pb
• 1.5mm Pb
• 2.0mm Pb

The required shielding level may vary from one wall to another depending on:

• Distance from the radiation source
• Beam direction
• Adjacent room occupancy
• Equipment energy output

Higher-energy equipment such as CT scanners often requires more shielding than standard dental X-ray systems.

What Are Primary and Secondary Barriers?

Primary Barriers

Primary barriers are walls or surfaces that may receive the direct radiation beam.

These areas usually require higher shielding levels because they are exposed to more intense radiation.

Secondary Barriers

Secondary barriers protect against:

• Scatter radiation
• Leakage radiation

These areas often require less shielding than primary barriers but still require protection to meet safety standards.

How Lead Glass Is Specified in the Report

If the room contains observation windows or control booth windows, the shielding report will usually specify the required lead equivalency for the glass.

For example, the report may call for:

• 1.5mm Pb lead glass
• 2.0mm Pb lead glass

The lead glass must match the shielding requirements of the surrounding wall to maintain continuous protection.

For radiation shielding applications, complete Lead-Lined X-Ray Windows are commonly used because they help maintain shielding continuity around the opening.

Standalone X-Ray Lead Glass is also available for compatible shielding frame systems.

Why the Frame Matters Too

One common misconception is that the lead glass alone provides complete protection.

In reality, the frame surrounding the glass usually must also be lead lined to prevent radiation leakage around the perimeter.

The shielding report may specify:

• Lead-lined frames
• Shielded glazing systems
• Lead overlap requirements

Improper framing is one of the most common causes of shielding failures during inspection.

Understanding Occupancy Classifications

Shielding requirements are influenced heavily by who occupies the rooms adjacent to the imaging space.

For example:

• An office occupied full-time may require more shielding
• A storage closet may require less shielding
• Public corridors often require specific protection levels

The shielding report typically assigns occupancy factors to surrounding areas when calculating shielding requirements.

Beam Direction Is Extremely Important

The direction of the radiation beam significantly affects shielding requirements.

Walls directly in the path of the primary beam usually require more shielding than walls exposed only to scatter radiation.

Shielding reports often include diagrams showing:

• Equipment orientation
• Primary beam direction
• Operator locations
• Protected control areas

Changing the equipment layout after the shielding report is complete can sometimes require revised calculations.

Common Mistakes When Reading Shielding Reports

Some of the most common misunderstandings include:

• Assuming all walls require the same shielding
• Ignoring frame shielding requirements
• Ordering incorrect lead equivalencies
• Overlooking safety glazing requirements
• Failing to coordinate penetrations and transitions

These issues can lead to failed inspections, change orders, and expensive rework.

Why Early Coordination Matters

Radiation shielding affects multiple parts of the project, including:

• Drywall assemblies
• Doors and frames
• Lead glass windows
• Electrical penetrations
• HVAC systems

Coordinating the shielding requirements early helps prevent construction conflicts later in the project.

Because many shielding products are custom manufactured, delays in coordination can also affect project schedules.

How Shielding Reports Affect Product Selection

The shielding report directly determines:

• Lead-lined drywall thickness
• Lead-lined door requirements
• Lead glass lead equivalency
• Frame shielding requirements
• Wall assembly details

Selecting products without reviewing the shielding report first can create serious compliance issues.

Final Thoughts

Radiation shielding reports are the blueprint for safe and compliant imaging room construction.

While the reports can appear technical, understanding the basics helps contractors, architects, and facility owners make informed decisions during the design and construction process. Once you understand the report values, ordering the correct Lead Lined Drywall thickness becomes a straightforward product selection.

The report determines the shielding requirements for walls, windows, doors, and other building components—and those requirements must be coordinated carefully to ensure successful inspections and long-term safety.
