Lead-Lined Frames vs Standard Hollow Metal Frames

At first glance, lead-lined frames and standard hollow metal frames may appear very similar. Both are commonly used in commercial construction and are often installed around doors and windows in healthcare facilities.

However, when it comes to radiation shielding applications, the differences between the two are extremely important.

Using a standard hollow metal frame where a lead-lined frame is required can create:

• Radiation leakage
• Failed inspections
• Shielding continuity issues
• Costly rework
• Project delays

This guide explains the key differences between lead-lined frames and standard hollow metal frames, when each is used, and why proper frame selection matters in X-ray shielding projects.

What Is a Standard Hollow Metal Frame?

A standard hollow metal frame is a commercial steel frame commonly used for:

• Commercial doors
• Office buildings
• Schools
• Hospitals
• Industrial facilities

These frames are typically manufactured from formed steel and designed to support standard doors and glazing systems.

Standard hollow metal frames are intended primarily for:

• Structural support
• Door operation
• Durability
• Fire rating compatibility

However, they do not normally provide radiation shielding.

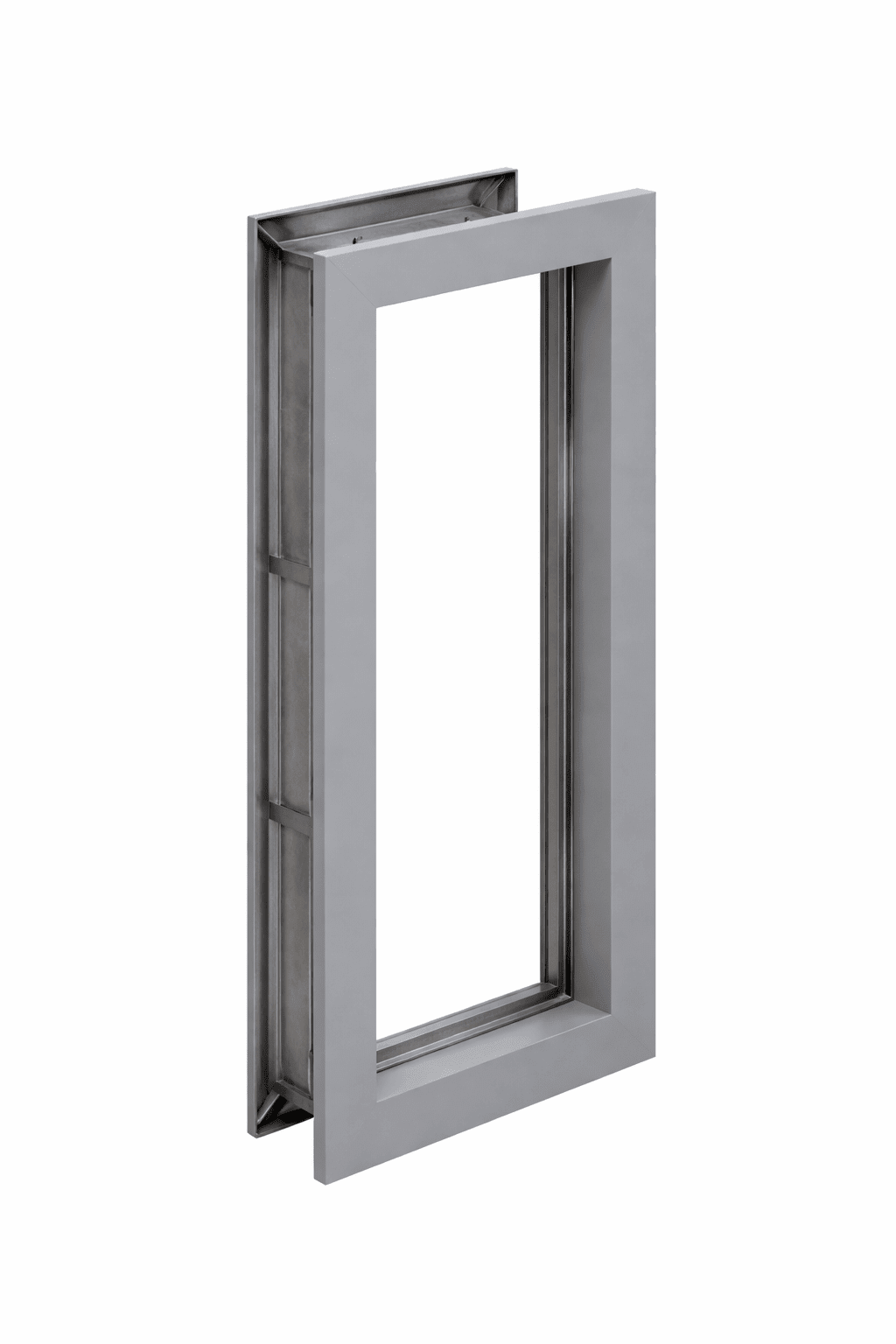

What Is a Lead-Lined Frame?

A lead-lined frame is a specialized frame assembly designed specifically for radiation shielding applications.

In addition to providing structural support like a standard hollow metal frame, lead-lined frames contain internal lead shielding material that helps maintain radiation protection around the opening.

Lead-lined frames are commonly used in:

• X-ray rooms
• CT suites
• Fluoroscopy rooms
• Dental imaging rooms
• Veterinary imaging facilities
• Industrial radiography rooms

The lead lining inside the frame is intended to match the shielding requirements of the surrounding wall and door assembly.

The Biggest Difference: Radiation Shielding

The most important difference between the two frame types is radiation protection.

Standard hollow metal frames:

• Do not contain lead shielding
• Do not maintain shielding continuity
• Can become radiation leakage points

Lead-lined frames:

• Contain lead shielding inside the frame
• Maintain shielding continuity around the opening
• Are designed specifically for radiation shielding environments

Without proper frame shielding, radiation can potentially leak around the perimeter of the opening even if the wall and glass are shielded correctly.

Why Shielding Continuity Matters

Radiation shielding systems are designed to function as one continuous protective barrier.

This includes:

• Lead-lined walls
• Lead-lined doors
• Lead glass windows
• Frames and transitions

If any portion of the system lacks shielding, it can create weak points where radiation may pass through.

Frames are one of the most common places where shielding continuity problems occur.

Lead Equivalency Requirements

Lead-lined frames are typically manufactured to match the required lead equivalency specified in the shielding report.

Common requirements include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The required shielding level depends on:

• The imaging equipment type
• Radiation energy levels
• Room occupancy conditions
• Beam direction

Standard hollow metal frames do not provide any lead equivalency protection unless specially modified.

Lead-Lined Frames Are Commonly Required Around Lead Glass

One common misconception is that shielding glass alone provides complete radiation protection.

In reality, the frame surrounding the glass opening usually must also be lead lined.

For example, installing X-Ray Lead Glass into a standard unshielded frame can create leakage points around the perimeter of the window.

This is why complete Lead-Lined X-Ray Windows are often used in radiation shielding applications.

Structural Differences

Lead-lined frames are typically heavier than standard hollow metal frames because of the internal lead shielding material.

Additional considerations may include:

• Higher frame weight
• Increased wall support requirements
• Specialized anchor conditions
• Compatibility with shielding doors and glazing systems

These frames are engineered specifically for the demands of radiation shielding installations.

Wall Thickness Coordination

Radiation shielding walls are often thicker than standard commercial partitions due to:

• Lead-lined drywall
• Multiple gypsum layers
• Plywood backing
• Sheet lead installations

Lead-lined frames are commonly manufactured with specialized throat depths and telescoping profiles to accommodate these wall conditions.

Standard hollow metal frames may not fit properly in thicker shielding wall assemblies.

Fire Rating Compatibility

Both standard hollow metal frames and lead-lined frames may be available with fire-rated configurations depending on the application.

However, fire rating requirements must be coordinated carefully in radiation shielding projects because:

• Not all shielding assemblies are fire rated
• Vision lite size limitations may apply
• Special glazing systems may be required

Proper coordination between the architect, shielding supplier, and door manufacturer is important.

Common Mistakes With Standard Frames

Some of the most common problems occur when contractors attempt to use standard hollow metal frames in shielding applications.

This can lead to:

• Radiation leakage around the opening
• Failed shielding inspections
• Non-compliant installations
• Costly replacement work

Field modifications to standard frames are usually not recommended because they often fail to provide consistent shielding continuity.

Why Complete Shielding Systems Simplify Installation

Using complete engineered shielding systems helps ensure compatibility between:

• The frame
• The door or glass
• The wall shielding
• The required lead equivalency

Lead Lined Doors require matching frame assemblies; the wrong frame type can compromise the entire radiation barrier.

This reduces the risk of installation mistakes and shielding continuity problems.

Complete Lead-Lined X-Ray Windows are designed specifically for medical and radiation shielding applications.

Which Frame Type Should You Use?

Standard hollow metal frames are appropriate for ordinary commercial construction where radiation shielding is not required.

Lead-lined frames should be used whenever the opening is part of a radiation shielding barrier.

This includes:

• X-ray rooms
• CT rooms
• Dental imaging areas
• Veterinary imaging suites
• Industrial radiography facilities

The shielding report or medical physicist will typically determine when lead-lined frames are required.

Final Thoughts

While standard hollow metal frames and lead-lined frames may appear similar, their functions are completely different in radiation shielding applications.

Lead-lined frames are designed specifically to maintain shielding continuity around doors and windows, helping prevent radiation leakage and failed inspections.

Using the correct frame system is one of the most important parts of a successful radiation shielding installation.
