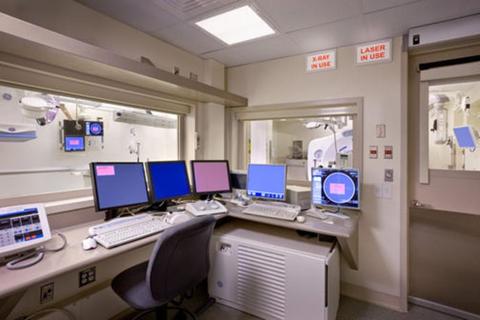

Lead Glass Submittals: What Architects Expect

Lead glass submittals are a critical part of the approval process for radiation shielding projects. Before fabrication begins, architects, contractors, and project managers typically review product documentation to verify that the specified shielding systems meet the project requirements.

Incomplete or inaccurate submittals can create:

• Project delays
• Rejected submissions
• RFIs and resubmittals
• Coordination conflicts
• Fabrication hold-ups

For architects and general contractors working on healthcare, dental, veterinary, and imaging projects, understanding what should be included in a lead glass submittal package helps streamline approvals and reduce construction issues later in the project.

This guide explains what architects typically expect to see in a professional lead glass submittal package.

What Is a Lead Glass Submittal?

A lead glass submittal is a package of technical documents provided by the supplier for review and approval before manufacturing begins.

The submittal confirms that the proposed product complies with:

• Project specifications
• Shielding requirements
• Architectural drawings
• Building code requirements
• Safety glazing requirements

Submittals are commonly reviewed by:

• Architects
• General contractors
• Medical physicists
• Glazing consultants
• Facility representatives

Why Submittals Matter in Radiation Shielding Projects

Radiation shielding products are highly specialized and often custom manufactured for each project.

Unlike standard glazing materials, lead glass systems must coordinate with:

• Shielding reports
• Wall assemblies
• Lead-lined frames
• Safety glazing requirements
• Door and window schedules

The submittal review process helps ensure the correct products are being fabricated before production begins.

The Most Important Item: Lead Equivalency

Architects and physicists usually focus first on the specified lead equivalency.

The submittal should clearly identify the radiation shielding level being provided, such as:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The lead equivalency should match:

• The shielding report
• Project specifications
• The surrounding wall shielding

Mismatched shielding levels are one of the most common causes of submittal rejection.

Shop Drawings Are Critical

Detailed shop drawings are one of the most important parts of the submittal package.

Architects typically expect drawings showing:

• Overall frame dimensions
• Visible glass size
• Rough opening requirements
• Wall thickness compatibility
• Frame profiles
• Lead shielding locations
• Installation details

These drawings help verify that the shielding system will fit properly within the project conditions.

Frame Details Must Be Included

One common misconception is that only the glass itself needs shielding.

In reality, the frame surrounding the glass usually must also be lead lined to maintain shielding continuity around the opening.

Submittals should clearly indicate:

• Lead-lined frame construction
• Frame throat depth
• Lead overlap details
• Shielding continuity around the perimeter

Complete Lead-Lined X-Ray Windows help simplify coordination between the glass and frame assembly.

Product Data Sheets Should Be Clear and Detailed

Architects expect product data sheets that clearly explain:

• Glass composition
• Available lead equivalencies
• Glass thickness
• Weight information
• Safety glazing options
• Installation recommendations

Clear documentation helps reduce RFIs and speeds up the approval process.

Safety Glazing Documentation

Depending on the installation location, safety glazing may be required by building code.

This is common when the glass is:

• Installed in doors
• Located near doors
• Near floor level
• In high-traffic commercial areas

Because lead glass cannot be tempered, submittals should identify whether the assembly includes:

• Laminated safety backing
• Safety-rated glazing systems
• Impact-resistant assemblies

Missing safety glazing documentation can delay approvals significantly.

Wall Thickness Coordination Is Important

Radiation shielding walls are often much thicker than standard partitions because they may include:

• Lead-lined drywall
• Multiple gypsum layers
• Plywood backing
• Shielding panels

Architects expect submittals to confirm compatibility with the specified wall thickness.

Incorrect frame throat dimensions are a common coordination issue.

Architects Want Consistency Between Drawings and Specifications

One of the fastest ways to trigger RFIs is inconsistent information between:

• Shop drawings
• Product data sheets
• Door schedules
• Shielding reports
• Architectural specifications

Submittals should be reviewed carefully before submission to ensure all information matches the project documents.

Common Reasons Lead Glass Submittals Get Rejected

Some of the most common submittal problems include:

• Missing lead equivalency information
• Incorrect frame details
• Incomplete shop drawings
• Missing safety glazing documentation
• Wall thickness mismatches
• Conflicting dimensions
• Unclear shielding continuity details

These issues can delay approvals and push back fabrication schedules.

Why Early Coordination Helps

Lead glass systems affect multiple trades and disciplines, including:

• Architectural design
• Shielding design
• Drywall assemblies
• Glazing systems
• Door and frame installation

Early coordination between the architect, physicist, contractor, and shielding supplier helps avoid costly revisions later in the project.

Because most shielding products are custom manufactured, delays during the submittal process can also affect project timelines.

What Architects Appreciate Most

In general, architects prefer submittals that are:

• Clear
• Complete
• Accurate
• Easy to review
• Consistent with project documents

Well-organized submittals help reduce review time and increase confidence that the product will perform as intended.

Choosing the Right Lead Glass Supplier

Because radiation shielding projects are highly specialized, working with an experienced supplier can simplify the submittal and coordination process significantly.

For complete shielding window assemblies, see our Lead-Lined X-Ray Windows.

For standalone shielding glazing products, explore our X-Ray Lead Glass.

Final Thoughts

Lead glass submittals are far more than simple product cut sheets. They are a critical coordination tool that helps ensure the shielding system meets the project requirements before fabrication begins.

Architects expect detailed, accurate, and well-organized documentation that clearly addresses shielding performance, framing, safety glazing, wall compatibility, and installation requirements.

Providing complete and coordinated submittals helps reduce RFIs, avoid delays, and improve the overall success of the project.
