Lead Glass Manufacturing Process Explained

Lead glass is one of the most important materials used in radiation shielding environments. It allows visibility into imaging rooms while helping protect people outside the room from harmful radiation exposure.

Although lead glass may appear similar to ordinary commercial glazing, the manufacturing process is very different. Specialized materials, controlled production methods, and radiation shielding requirements all play a role in how medical lead glass is produced.

Understanding how lead glass is manufactured helps architects, contractors, and facility owners better understand why it behaves differently from standard glass and why it is considered a specialty shielding product.

This guide explains the general lead glass manufacturing process and the key factors that affect shielding performance, clarity, and durability.

What Is Lead Glass?

Lead glass is a transparent radiation shielding material engineered to attenuate X-rays and gamma radiation.

Unlike ordinary glass, lead glass contains lead oxide within the glass composition itself. The lead oxide increases the density of the material, allowing it to absorb radiation while still remaining transparent.

Lead glass is commonly used in:

• X-ray rooms
• CT suites
• Fluoroscopy rooms
• Dental imaging rooms
• Veterinary imaging facilities
• Nuclear medicine rooms
• Industrial radiography areas

Products such as X-Ray Lead Glass are specifically manufactured for these shielding applications.

Step 1: Raw Material Preparation

The manufacturing process begins with carefully selected raw materials.

While standard glass is primarily made from silica and common glass-forming ingredients, lead glass also includes lead oxide as part of the formulation.

Typical ingredients may include:

• Silica sand
• Lead oxide
• Fluxing agents
• Stabilizers
• Additional specialty additives

The exact composition affects:

• Radiation attenuation performance
• Optical clarity
• Density
• Glass color and tint

The lead oxide content is one of the key differences between shielding glass and ordinary commercial glass.

Step 2: Melting the Glass Batch

Once the raw materials are prepared, they are combined into a glass batch and heated in a high-temperature furnace.

The materials melt together into a molten glass mixture.

Temperature control during this stage is extremely important because variations can affect:

• Optical quality
• Consistency
• Density
• Radiation attenuation performance

Lead glass requires specialized manufacturing controls because the lead oxide changes the way the glass behaves during production.

Step 3: Forming the Glass

After melting, the molten glass is formed into sheets or blocks depending on the manufacturing method.

The forming process must maintain:

• Uniform thickness
• Consistent density
• Optical clarity
• Dimensional accuracy

Because lead glass is used for visibility in medical environments, maintaining acceptable visual quality is extremely important.

However, some level of visual distortion is normal in shielding glass due to the material composition and manufacturing process.

Step 4: Controlled Cooling (Annealing)

Once formed, the glass must cool gradually in a controlled process called annealing.

Annealing helps reduce internal stresses that could otherwise lead to:

• Cracking
• Breakage
• Optical defects

Unlike ordinary safety glass, lead glass cannot typically be thermally tempered because of its specialized composition.

The cooling process must therefore be carefully controlled to maintain structural stability.

Step 5: Cutting and Fabrication

After annealing, the lead glass is cut and fabricated into the required sizes.

Lead glass is usually custom manufactured for specific projects, which means panels are often fabricated to exact dimensions before shipment.

Fabrication may include:

• Custom sizing
• Edge finishing
• Safety glazing lamination
• Preparation for insulated assemblies

Because lead glass is a specialty shielding product, it is not intended to be cut or modified in the field.

Step 6: Quality Inspection

Before shipment, lead glass typically undergoes quality inspection to evaluate:

• Dimensions
• Thickness
• Visual quality
• Edge condition
• Surface defects

Because shielding glass is heavier and softer than standard glass, careful inspection and packaging are especially important.

Minor visual characteristics such as slight distortion, bubbles, or inclusions may still be considered acceptable depending on industry standards and viewing conditions.

How Radiation Shielding Performance Is Measured

Lead glass is typically rated using lead equivalency.

Common ratings include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The lead equivalency describes the attenuation performance of the glass compared to solid lead under specified testing conditions.

Shielding performance depends on several factors, including:

• Lead oxide content
• Glass density
• Glass thickness
• X-ray energy levels

This is why shielding products are specified by performance—not simply by lead percentage alone.

Why Lead Glass Is So Heavy

Lead glass is significantly heavier than standard commercial glazing because of its dense lead oxide composition.

The same density that gives the glass its shielding properties also increases:

• Glass weight
• Structural support requirements
• Handling complexity

Larger shielding windows may require specialized handling equipment and lead-lined framing systems.

Lead Glass Requires Specialized Frames

In radiation shielding applications, the frame surrounding the glass must usually provide shielding continuity around the opening.

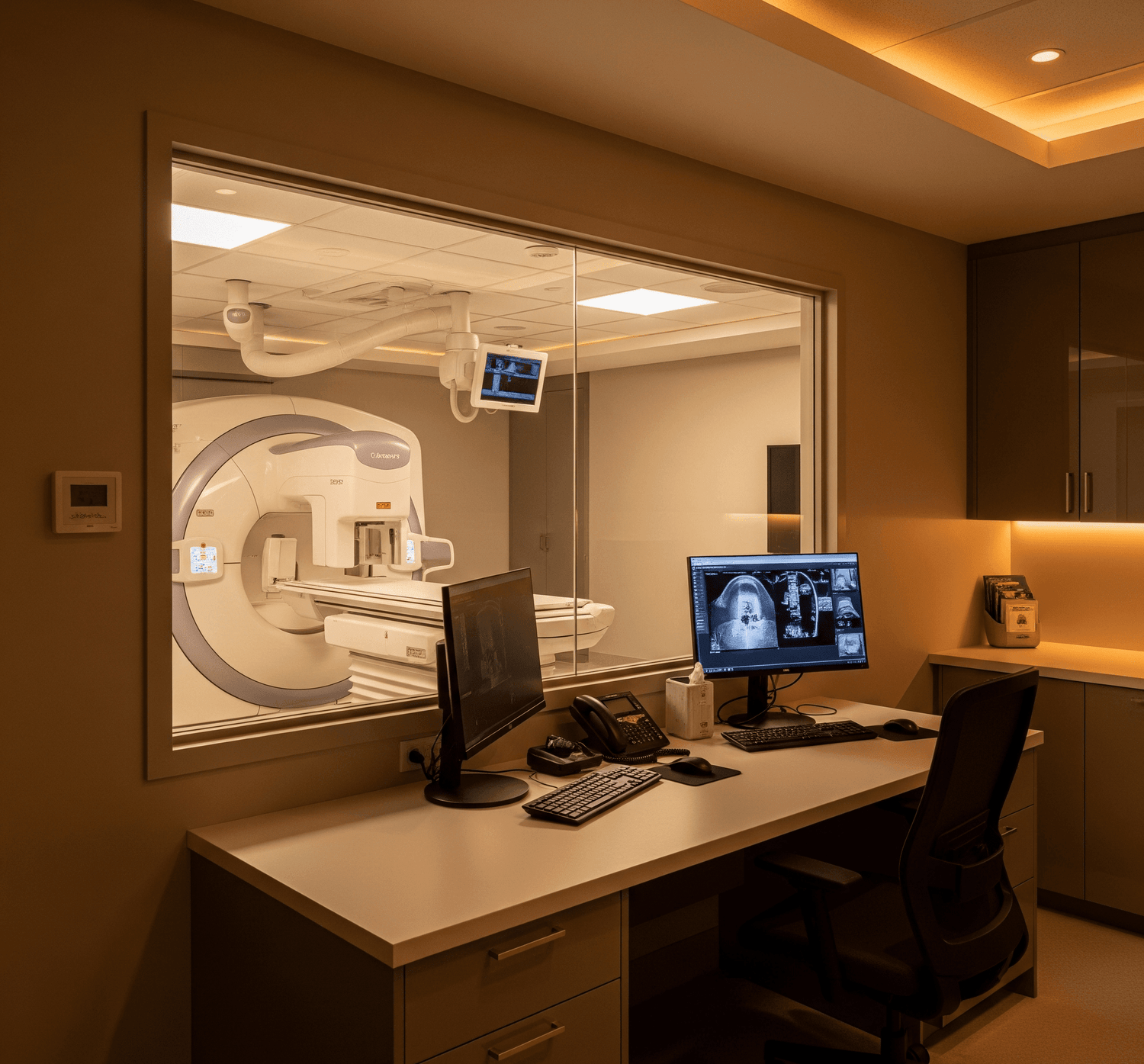

This is why complete Lead-Lined X-Ray Windows are commonly used in imaging facilities.

Using standard unshielded frames with lead glass can create radiation leakage points around the perimeter.

Can Lead Glass Be Tempered?

No. Because of its specialized composition, lead glass cannot typically be thermally tempered like ordinary safety glass.

However, safety-rated assemblies can still be achieved through:

• Laminated safety backing
• Specialized glazing systems
• Safety-rated assemblies where required

Safety glazing requirements depend on the installation location and applicable building codes.

Common Misconceptions About Lead Glass Manufacturing

Some common misunderstandings include:

• Assuming lead glass is simply “thicker glass”
• Believing all lead glass has identical shielding performance
• Thinking higher lead content alone determines performance
• Assuming lead glass can be handled like ordinary commercial glazing

In reality, lead glass is a highly specialized engineered shielding product.

Why Custom Manufacturing Matters

Because most radiation shielding projects are unique, lead glass is often custom manufactured to match:

• Specific lead equivalencies
• Project dimensions
• Safety glazing requirements
• Frame configurations

This custom manufacturing process helps ensure proper shielding performance and compatibility with the overall shielding system.

Final Thoughts

The manufacturing process for lead glass is significantly more specialized than ordinary commercial glazing production.

From the lead oxide composition to the controlled annealing and fabrication process, every step affects the final shielding performance, clarity, and durability of the product.

Because lead glass is a critical part of medical and industrial radiation protection systems, proper material selection, fabrication, and installation are essential for long-term safety and compliance.
