How X-Ray Energy Affects Shielding Requirements

Not all X-rays are the same. One of the most important factors in radiation shielding design is the energy level of the X-ray equipment being used.

Higher-energy X-rays penetrate materials more easily, which means they typically require more shielding protection to maintain safe radiation levels outside the room.

This is why shielding requirements for a dental X-ray room are often very different from those for a CT suite or fluoroscopy room.

Understanding how X-ray energy affects shielding requirements helps architects, contractors, facility owners, and imaging professionals better understand why radiation shielding systems are designed the way they are.

This guide explains the relationship between X-ray energy and radiation shielding design, including how it impacts lead-lined walls, doors, and X-Ray Lead Glass.

What Is X-Ray Energy?

X-ray energy refers to the intensity and penetrating power of the X-rays produced by imaging equipment.

In general:

• Lower-energy X-rays are easier to block
• Higher-energy X-rays penetrate materials more effectively

X-ray energy is commonly measured in kilovoltage peak (kVp).

Different imaging systems operate at different energy levels depending on their intended use.

Examples of Different X-Ray Energy Levels

Different medical imaging systems typically operate within different energy ranges.

For example:

• Dental X-ray systems generally use lower energy levels
• General radiography systems use moderate energy levels
• CT scanners often use significantly higher energy levels
• Fluoroscopy systems may involve prolonged exposure and higher shielding demands

The higher the energy output, the greater the shielding requirements usually become.

Why Higher-Energy X-Rays Require More Shielding

Radiation shielding works by attenuating—or reducing—the intensity of radiation passing through a material.

Higher-energy X-rays are more penetrating, which means:

• More shielding material may be required
• Higher lead equivalencies may be needed
• Greater wall thicknesses may be necessary

In simple terms:

As X-ray energy increases, shielding requirements usually increase as well.

Lead Equivalency and X-Ray Energy

Shielding products are typically specified using lead equivalency ratings.

Common lead equivalencies include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

These ratings describe the attenuation performance of the shielding material compared to solid sheet lead.

The required lead equivalency depends heavily on the X-ray energy level being produced by the equipment.

Higher-energy systems generally require higher shielding levels.

Why CT Rooms Often Require More Shielding

CT scanners are one of the most demanding imaging systems from a shielding perspective.

CT equipment typically:

• Operates at higher energy levels
• Produces larger radiation workloads
• Uses rotating beam geometry

As a result, CT rooms often require:

• Higher lead equivalencies
• Thicker shielding materials
• More detailed shielding calculations

Observation windows in CT rooms frequently require higher-rated X-Ray Lead Glass than standard imaging rooms.

Dental X-Ray Rooms Usually Require Less Shielding

Dental imaging systems typically operate at lower energy levels and lower workloads than CT or fluoroscopy systems.

Because of this, dental rooms often require:

• Lower lead equivalencies
• Less extensive shielding systems
• Smaller observation windows

However, shielding requirements still depend on:

• Equipment type
• Beam direction
• Occupancy conditions
• Room layout

Even lower-energy systems still require proper shielding design.

Beam Direction Is Also Important

The direction of the X-ray beam affects shielding requirements just as much as the energy level.

Walls exposed to the primary beam often require greater protection than walls exposed only to scatter radiation.

This is why shielding reports distinguish between:

• Primary barriers
• Secondary barriers

Primary barriers usually require more attenuation because they may receive direct beam exposure.

Occupancy Conditions Affect Shielding Design

The amount of shielding required also depends on who occupies the spaces surrounding the imaging room.

For example:

• A public corridor may require more shielding than a storage room
• An occupied office may require greater protection than a mechanical space

The shielding report evaluates these occupancy conditions when determining the required shielding levels.

Shielding Materials Must Match the Energy Requirements

Not all shielding materials perform equally at all energy levels.

Shielding performance depends on:

• Material density
• Material thickness
• Lead equivalency
• X-ray energy

This is why products are selected based on the specific equipment and shielding report—not simply by choosing the thickest available material.

Lead Glass Requirements Change With Energy Levels

Observation windows and control booth windows must provide attenuation equivalent to the surrounding shielding system.

Higher-energy imaging rooms may require:

• Higher lead equivalency glass
• Thicker glazing systems
• Lead-lined framing systems

Proper shielding continuity around the opening is critical to prevent radiation leakage.

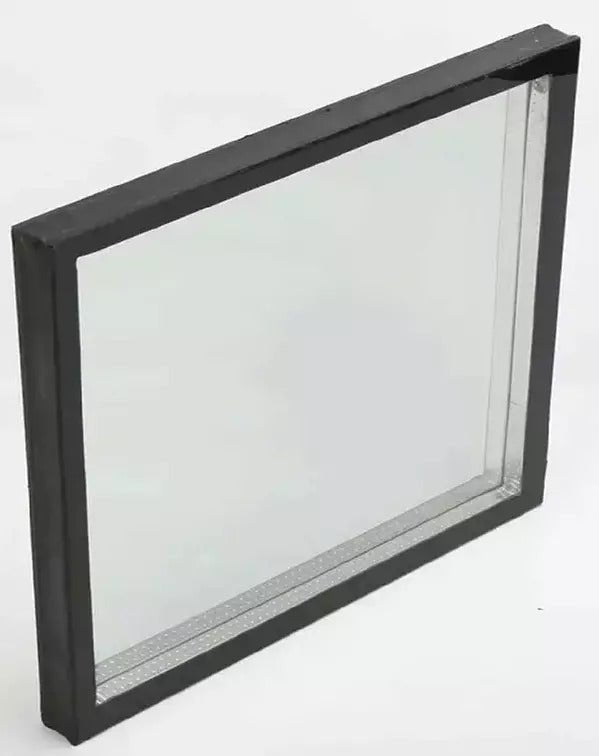

Complete Lead-Lined X-Ray Windows help maintain shielding continuity around the entire opening.

Why Shielding Reports Are Essential

Because shielding requirements depend on so many variables, the proper shielding design should always be determined by a radiation shielding report prepared by a qualified medical physicist.

The report evaluates:

• Equipment type
• X-ray energy levels
• Room layout
• Beam direction
• Occupancy conditions
• Workload estimates

The report then specifies the required shielding levels for:

• Walls
• Doors
• Frames
• Windows

Attempting to guess shielding requirements without a shielding report can create serious safety and compliance issues.

Common Misconceptions About X-Ray Energy

Some common misunderstandings include:

• Assuming all X-ray rooms require the same shielding
• Believing thicker shielding is always necessary
• Ignoring beam direction and occupancy conditions
• Assuming lead glass alone provides complete protection without shielded frames

Effective shielding design depends on the complete system and the specific imaging equipment involved.

Why Proper Shielding Coordination Matters

Radiation shielding systems involve coordination between:

• Medical physicists
• Architects
• Contractors
• Door and frame suppliers
• Lead glass suppliers

Proper coordination helps ensure the shielding system performs correctly and passes inspection once construction is complete.

Choosing the Right Lead Glass System

When selecting shielding glass for an imaging room, important considerations include:

• Required lead equivalency
• X-ray energy levels
• Window size
• Frame compatibility
• Safety glazing requirements
• Shielding continuity

For complete shielding window assemblies, see our Lead-Lined X-Ray Windows.

For standalone shielding glazing products, explore our X-Ray Lead Glass.

Final Thoughts

X-ray energy levels play a major role in determining shielding requirements for medical and industrial imaging rooms.

Higher-energy systems generally require greater attenuation, which affects the design of walls, doors, windows, and lead glass assemblies.

Because shielding requirements depend on multiple variables—including beam direction, occupancy conditions, and workload—proper shielding design should always be based on a qualified radiation shielding report.
