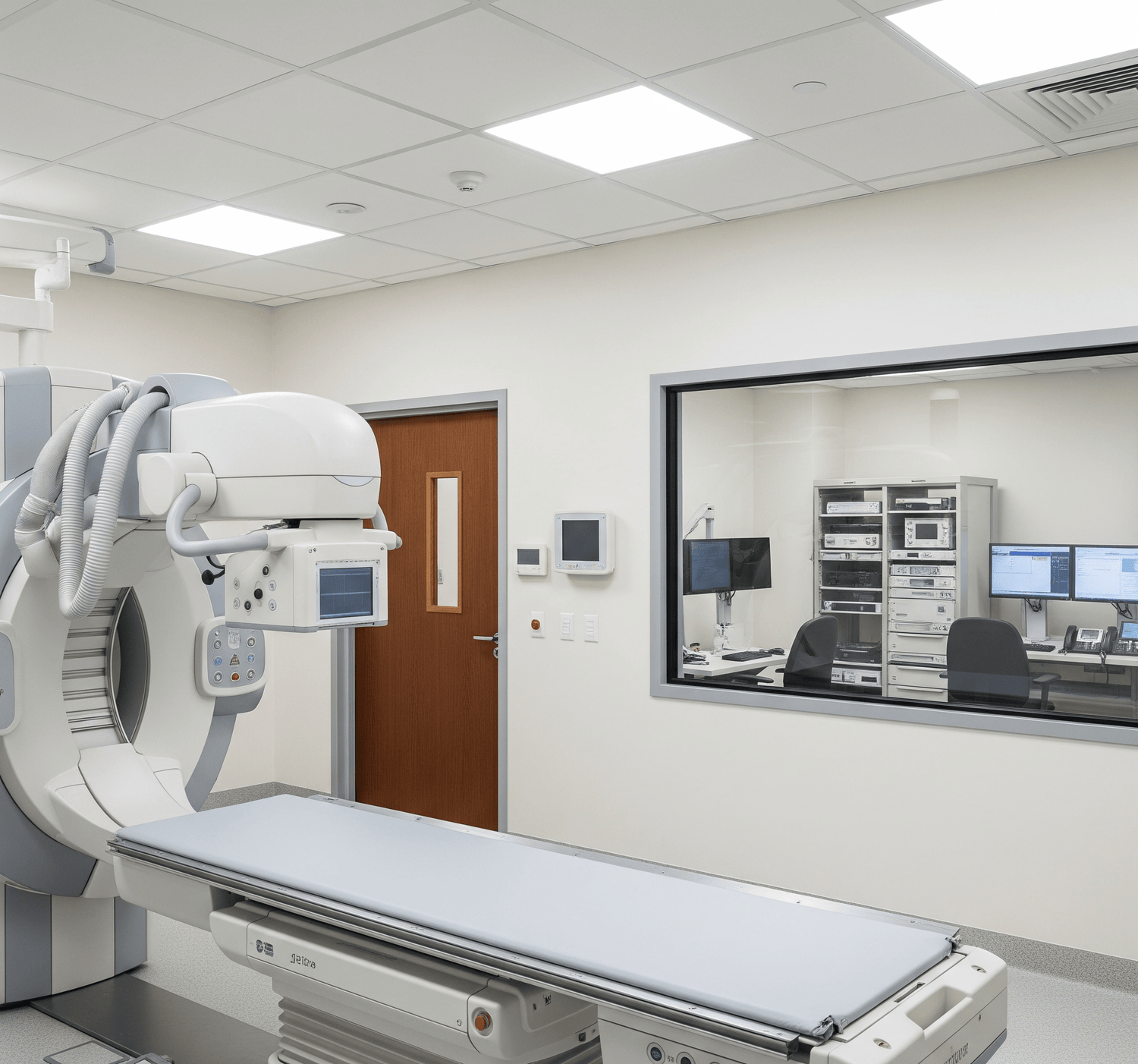

How to Transport and Store Lead Glass Safely

Lead glass is a highly specialized radiation shielding product that requires careful handling during transportation and storage. Unlike standard commercial glass, lead glass is heavier, softer, and more susceptible to edge damage if handled improperly.

Improper transportation or storage can result in:

• Cracked or broken glass
• Edge chips
• Scratches
• Stress damage
• Installation delays
• Costly replacement orders

Because lead glass is typically custom manufactured and non-returnable, preventing damage before installation is critical.

This guide explains best practices for safely transporting, unloading, handling, and storing lead glass before installation.

Why Lead Glass Requires Special Handling

Lead glass differs from standard float glass in several important ways.

Radiation shielding glass contains lead oxide, which gives the material its shielding properties but also makes it:

• Much heavier than standard glass
• Softer and more prone to scratching
• More vulnerable to edge damage
• More susceptible to stress from improper handling

Large shielding windows can become extremely heavy, especially at higher lead equivalencies such as 2.0mm Pb or greater.

For this reason, transportation and storage procedures should always be planned before the product arrives onsite.

Inspect the Shipment Immediately Upon Arrival

One of the most important steps is inspecting the shipment immediately when it arrives.

Before signing for delivery:

• Inspect the crate and packaging carefully
• Look for visible damage or impact marks
• Check for crushed corners or punctures
• Photograph any suspicious areas

If damage is suspected:

• Document it immediately
• Note it on the delivery receipt
• Take clear photographs before unloading
• Notify the supplier promptly

Damage claims can become much more difficult if issues are not reported at the time of delivery.

Use Proper Equipment for Unloading

Lead glass can be extremely heavy, especially for large observation windows and high-shielding applications.

Before delivery arrives, confirm that proper unloading equipment is available.

This may include:

• Forklifts
• Glass carts
• Suction lifting equipment
• Additional manpower

Never attempt to unload oversized lead glass panels without adequate support or lifting assistance.

Improper unloading is one of the most common causes of breakage.

Keep the Glass Vertical During Handling

Lead glass should generally be transported and stored in a vertical position—not laid flat.

Storing glass horizontally can create uneven stress and increase the risk of cracking, especially with larger panels.

When moving or storing lead glass:

• Keep panels upright at a slight angle
• Use padded supports
• Ensure weight is evenly distributed
• Prevent shifting during transport

Proper support is critical because lead glass is significantly heavier than ordinary glazing materials.

Protect the Edges at All Times

The edges of lead glass are especially vulnerable to damage.

Even minor edge impacts can:

• Create chips
• Lead to stress cracks
• Compromise the integrity of the panel
• Cause breakage later during installation

To reduce risk:

• Avoid metal-to-glass contact
• Use padded spacers and supports
• Never drag glass across hard surfaces
• Handle carefully around corners and doorways

Many lead glass failures originate from edge damage that occurred during transportation or storage.

Store Lead Glass Indoors Whenever Possible

Lead glass should ideally be stored in a clean, dry, climate-controlled environment before installation.

Avoid storing lead glass:

• Outdoors
• In wet or humid conditions
• In direct sunlight for extended periods
• Near active construction traffic

Construction sites can expose the glass to accidental impact, dust, debris, and temperature fluctuations that increase the risk of damage.

Avoid High-Traffic Storage Areas

Lead glass should be stored away from areas where:

• Equipment is being moved
• Materials are stacked
• Forklifts are operating
• Construction activity is ongoing

Even a minor accidental impact can crack or chip the glass.

Because replacement lead glass is custom manufactured, damage can create major project delays.

Do Not Remove Protective Packaging Too Early

Protective packaging should remain in place as long as possible before installation.

Removing packaging too early increases exposure to:

• Scratches
• Dust and debris
• Accidental impact
• Jobsite contamination

Only remove protective materials when the installation area is ready and the glass is prepared to be installed immediately.

Plan the Installation Route in Advance

Before moving large lead glass panels into position, verify that the installation route is accessible.

Check:

• Doorway clearances
• Hallway widths
• Elevator capacity
• Stair access
• Turning clearances

Large lead glass panels may require special handling equipment or additional personnel during installation.

Never Attempt to Cut or Modify Lead Glass

Lead glass is manufactured to exact dimensions and should never be cut, drilled, or modified in the field.

Attempting field modifications can:

• Destroy the glass
• Create unsafe conditions
• Compromise shielding performance
• Void warranties

Accurate measurements should always be verified before fabrication begins.

Complete Window Assemblies Simplify Handling

Using engineered shielding window systems can help simplify transportation and installation planning.

Complete Lead-Lined X-Ray Windows are designed specifically for radiation shielding applications and compatibility with shielding frames.

For standalone shielding panels, view our X-Ray Lead Glass.

Common Transportation and Storage Mistakes

Some of the most common problems include:

• Storing glass flat instead of upright
• Insufficient edge protection
• Using improper lifting equipment
• Leaving glass exposed on active jobsites
• Unloading without adequate manpower
• Removing protective packaging too early

These mistakes can easily lead to damage before installation even begins.

Final Thoughts

Lead glass is a precision shielding product that requires careful transportation, handling, and storage procedures.

Because the material is heavier and more delicate than standard glass, improper handling can quickly result in expensive damage, project delays, and replacement costs.

Planning ahead, using proper equipment, protecting the edges, and storing the glass correctly can help ensure the product arrives at installation in excellent condition.
