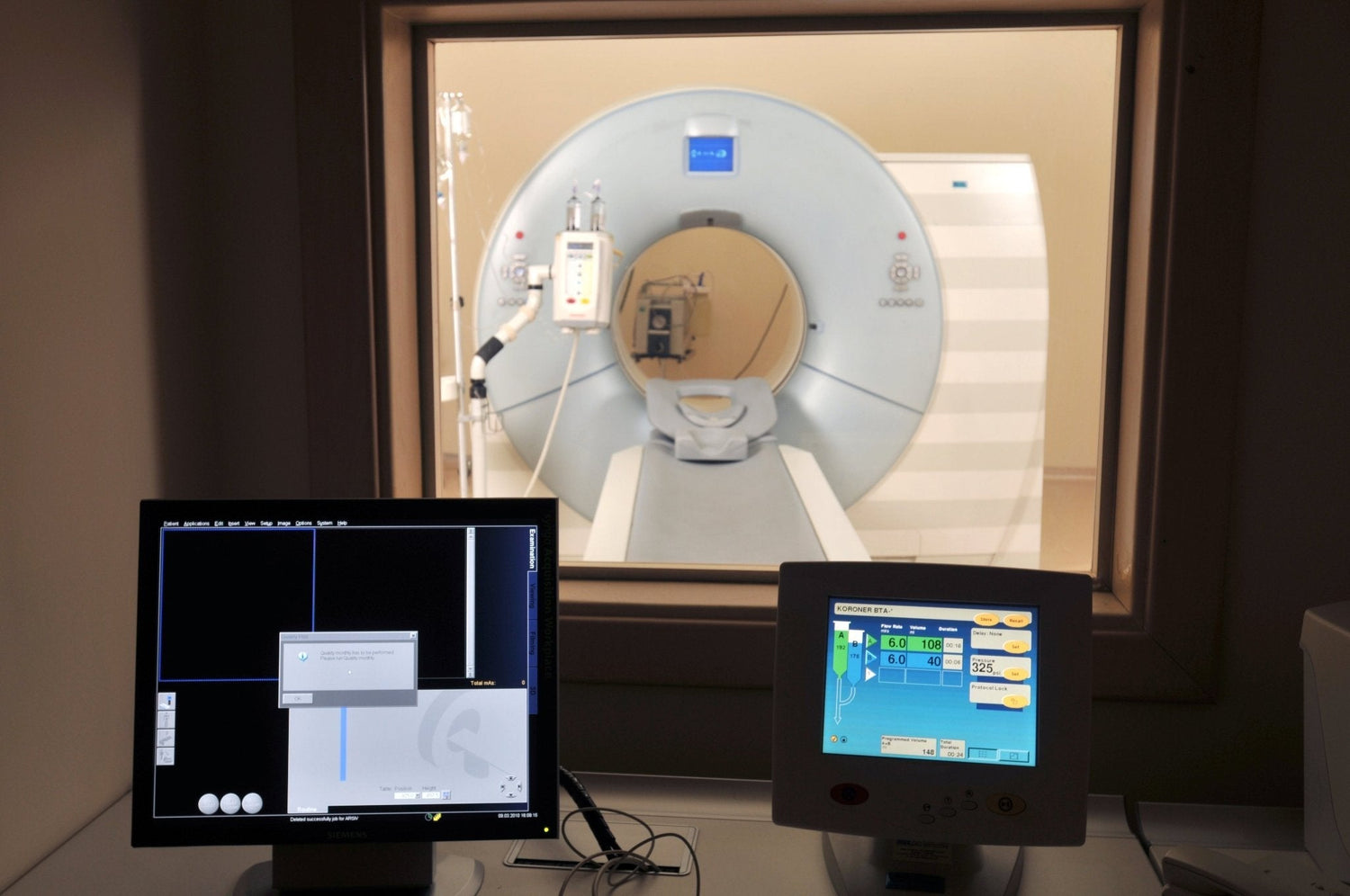

How Lead Glass Is Specified in Construction Documents

Lead glass is a specialized radiation shielding material commonly specified in healthcare, dental, veterinary, research, and industrial construction projects. Unlike standard glazing products, lead glass must meet both architectural and radiation protection requirements.

Because of this, lead glass specifications in construction documents typically include much more detail than ordinary commercial glazing.

Understanding how lead glass is specified can help architects, contractors, and facility owners avoid costly mistakes, failed inspections, and coordination issues during construction.

This guide explains the most common information included in lead glass specifications and how these requirements are used throughout the construction process.

Why Lead Glass Requires Detailed Specifications

Lead glass is part of a room’s radiation shielding system. The glass, framing, wall shielding, and surrounding construction must all work together to maintain continuous radiation protection.

Unlike standard windows, shielding glass must satisfy:

• Radiation attenuation requirements
• Building code requirements
• Safety glazing requirements
• Structural support requirements
• Architectural coordination

Because of this, lead glass is usually specified with detailed performance and installation requirements in the project documents.

Where Lead Glass Appears in Construction Documents

Lead glass may appear in several parts of the construction package, including:

• Architectural drawings
• Door and window schedules
• Radiation shielding plans
• Project specifications
• Submittal requirements

The radiation shielding report prepared by the project physicist is often one of the most important reference documents because it establishes the required shielding levels throughout the facility.

The Most Important Specification: Lead Equivalency

The most critical specification for lead glass is usually the required lead equivalency.

Lead equivalency describes the shielding performance of the glass compared to a specific thickness of solid lead.

Common specifications include:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The required shielding level depends on factors such as:

• Type of imaging equipment
• Radiation energy levels
• Room layout
• Occupancy of adjacent spaces

The specified lead equivalency for the glass usually matches the shielding requirements for the surrounding wall.

Glass Size and Viewing Area Requirements

Construction documents often specify the required viewing area dimensions for the radiation shielding window.

Depending on the project, specifications may include:

• Visible viewing dimensions
• Overall glass size
• Frame dimensions
• Rough opening requirements

Because lead glass is custom manufactured, accurate dimensions are critical before fabrication begins.

Lead-Lined Frame Requirements

In most radiation shielding applications, the frame surrounding the glass must also provide radiation protection.

Construction documents commonly specify:

• Lead-lined steel frames
• Lead-lined telescoping frames
• Shielded glazing systems
• Lead continuity requirements

This is necessary to maintain shielding continuity around the perimeter of the opening.

Using standard commercial frames with shielding glass can create radiation leakage points around the edges.

Complete Lead-Lined X-Ray Windows are commonly used to simplify coordination between the frame and shielding glass system.

Safety Glazing Requirements

Building codes may require safety glazing depending on the installation location.

This is especially common when the glass is:

• Installed in a door
• Located near a doorway
• Close to floor level
• Used in high-traffic commercial areas

Because lead glass cannot be tempered, specifications may require:

• Laminated safety backing
• Safety-rated assemblies
• Impact-resistant glazing systems

These requirements are typically coordinated between the architect, glazing consultant, and shielding supplier.

Fire Rating Requirements

Some projects also require fire-rated assemblies in addition to radiation shielding.

Construction documents may specify:

• Fire-rated lead glass assemblies
• Fire-rated hollow metal frames
• Fire-rated doors with lead glass vision panels

Fire rating requirements must be coordinated carefully because not all radiation shielding products are available with fire-rated options.

Wall Thickness and Frame Depth Coordination

Radiation shielding walls are often thicker than standard commercial partitions due to:

• Lead-lined drywall
• Additional gypsum layers
• Plywood backing
• Shielding panels

Because of this, construction documents often specify:

• Wall thickness
• Frame throat depth
• Telescoping frame requirements
• Finish conditions

Improper coordination can lead to installation delays or field modification issues.

Submittal Requirements

Lead glass products typically require detailed submittals before fabrication begins.

Submittals may include:

• Shop drawings
• Lead equivalency documentation
• Product data sheets
• Frame details
• Installation requirements
• Safety glazing documentation

Architects and contractors usually review these documents to verify compliance with the project specifications.

Common Specification Mistakes

Some of the most common specification issues include:

• Missing lead equivalency requirements
• Using standard frame details instead of lead-lined frames
• Incorrect wall thickness coordination
• Omitting safety glazing requirements
• Incomplete shielding continuity details
• Conflicting information between drawings and specifications

These issues can lead to fabrication delays, RFIs, change orders, and inspection problems later in the project.

Why Early Coordination Matters

Radiation shielding products are highly specialized and often custom manufactured.

Early coordination between:

• Architects
• Physicists
• Contractors
• Glaziers
• Shielding suppliers

helps prevent specification conflicts and installation problems during construction.

Because shielding windows affect multiple trades, coordination should happen well before fabrication begins.

Choosing the Right Lead Glass System

When selecting a shielding window system, important considerations include:

• Required lead equivalency
• Frame type
• Wall thickness
• Safety glazing requirements
• Fire rating requirements
• Viewing area dimensions

For complete engineered assemblies, see our Lead-Lined X-Ray Windows.

For standalone shielding glass panels, view our X-Ray Lead Glass.

Final Thoughts

Lead glass specifications in construction documents are far more detailed than ordinary commercial glazing because the product plays a critical role in radiation protection and code compliance.

Accurate specifications help ensure proper shielding continuity, successful inspections, and smooth coordination during construction.

By understanding how lead glass is specified—and coordinating those requirements early—architects and contractors can avoid costly mistakes and project delays.
