Does Lead Glass Block Gamma Radiation?

Yes, lead glass can help attenuate gamma radiation—but the answer is more complex than a simple yes or no.

The effectiveness of lead glass against gamma radiation depends on several important factors, including:

• The energy level of the gamma radiation
• The thickness of the glass
• The lead equivalency of the glass
• The specific application requirements

Because gamma radiation is generally more penetrating than standard diagnostic X-rays, shielding requirements for nuclear medicine and gamma-emitting environments are often much more demanding.

This guide explains how lead glass interacts with gamma radiation and what factors determine whether it is appropriate for a specific shielding application.

What Is Gamma Radiation?

Gamma radiation is a highly energetic form of electromagnetic radiation emitted by radioactive materials.

Unlike diagnostic X-rays, which are generated electronically by imaging equipment, gamma rays are produced through radioactive decay.

Gamma radiation is commonly encountered in:

• Nuclear medicine facilities
• PET imaging environments
• Radiopharmaceutical handling areas
• Research laboratories
• Industrial radiography applications

Gamma rays are generally more penetrating than standard diagnostic X-rays, which means they often require more substantial shielding.

How Lead Glass Blocks Radiation

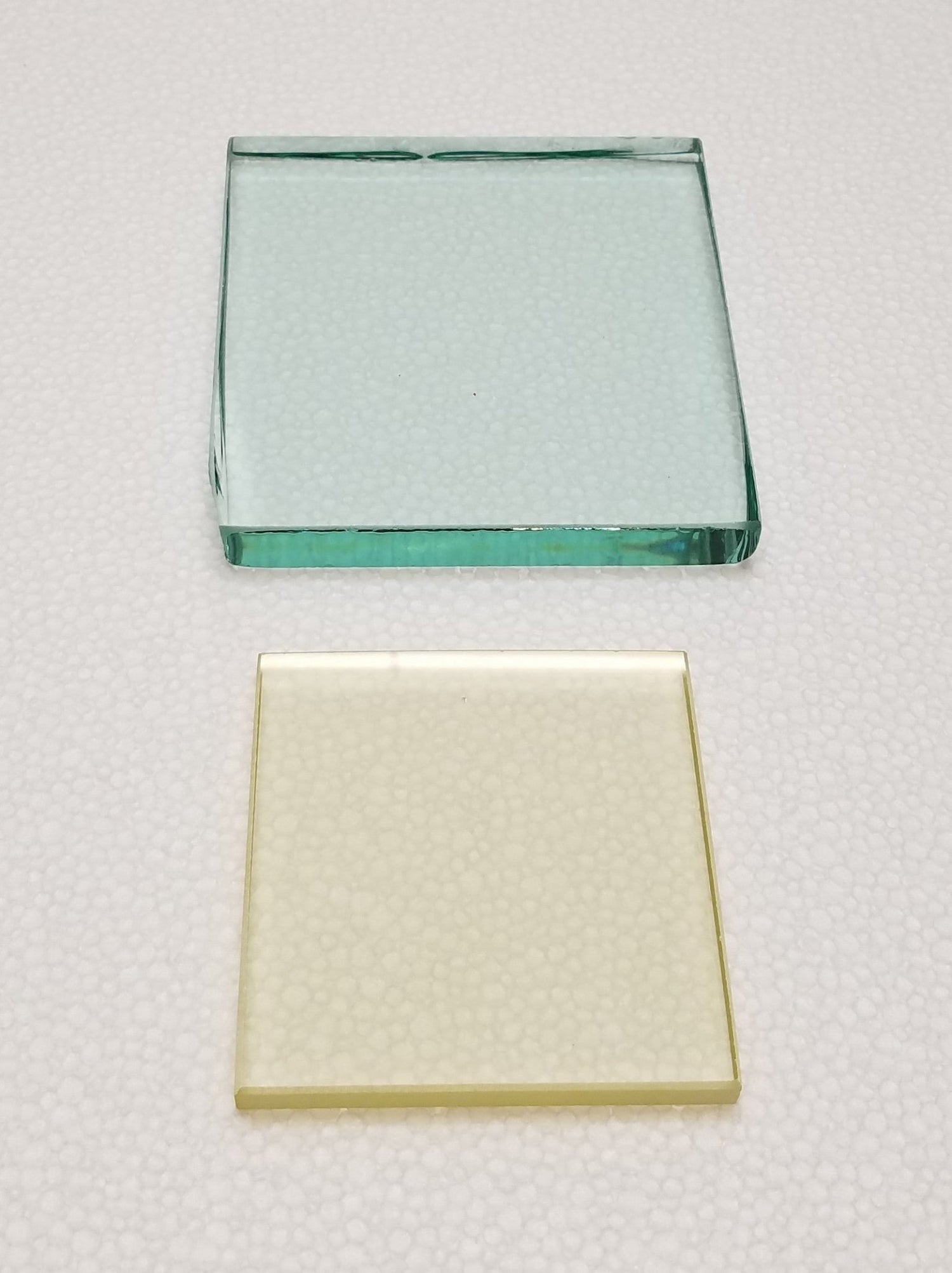

X-Ray Lead Glass contains lead oxide within the glass composition itself.

The dense lead oxide helps attenuate radiation by:

• Absorbing radiation energy
• Reducing radiation intensity
• Limiting transmission through the material

This process is known as radiation attenuation.

Lead glass is specifically engineered to provide shielding while still allowing visibility into controlled radiation environments.

Can Lead Glass Attenuate Gamma Radiation?

Yes. Lead glass can attenuate gamma radiation to varying degrees depending on the design of the shielding system.

However, because gamma radiation can be extremely penetrating, the required shielding levels are often significantly greater than those used in ordinary medical X-ray rooms.

Whether lead glass is sufficient depends on:

• The isotope being used
• The gamma energy level
• The required exposure limits
• The occupancy conditions outside the room

Higher-energy gamma radiation generally requires:

• Thicker shielding materials
• Higher lead equivalencies
• More specialized shielding calculations

Lead Equivalency Is Extremely Important

Shielding glass is typically specified using lead equivalency ratings such as:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

Lead equivalency describes the attenuation performance of the material compared to solid sheet lead under specified testing conditions.

Gamma shielding applications may require significantly higher attenuation than standard diagnostic imaging environments.

This is why nuclear medicine applications often involve custom shielding calculations performed by a medical physicist.

Gamma Radiation Is More Penetrating Than Standard X-Rays

One of the key differences between diagnostic X-rays and gamma radiation is energy level.

Gamma rays often have:

• Higher energy
• Greater penetrating ability
• Longer shielding requirements

Because of this, shielding systems designed for standard X-ray rooms may not be adequate for gamma radiation environments.

Proper shielding design always depends on the specific radiation source involved.

Nuclear Medicine Rooms Often Require Specialized Shielding

Nuclear medicine facilities may involve radioactive isotopes that emit gamma radiation continuously.

These environments often require:

• Enhanced shielding calculations
• Higher-density shielding systems
• Additional lead thicknesses
• Specialized handling areas

Observation windows and viewing areas in these facilities may require higher-rated lead glass systems than those used in standard radiography rooms.

The Entire Shielding System Matters

Even if the lead glass itself provides adequate attenuation, the surrounding shielding system must also maintain protection.

This includes:

• Lead-lined frames
• Shielded walls
• Doors and transitions
• Proper overlap between shielding materials

Unshielded frames or gaps around the opening can create leakage points even when the glass itself is properly rated.

Complete Lead-Lined X-Ray Windows help maintain shielding continuity around observation openings.

Thickness and Density Both Matter

Shielding effectiveness is not determined by lead content alone.

Gamma attenuation depends on:

• Glass density
• Total thickness
• Lead oxide composition
• Radiation energy levels

Higher-energy gamma rays often require thicker or more heavily shielded assemblies to achieve acceptable attenuation.

Why Shielding Reports Are Essential

Because gamma shielding requirements can vary dramatically depending on the isotope and application, shielding systems should always be designed using a radiation shielding report prepared by a qualified medical physicist.

The shielding report evaluates:

• Radiation source type
• Energy levels
• Workload
• Occupancy conditions
• Distance to adjacent areas
• Exposure limits

The report then determines the required shielding levels for walls, doors, windows, and viewing systems.

Lead Glass Is Commonly Used in Nuclear Medicine

Despite the increased shielding requirements, lead glass is still widely used in many nuclear medicine applications because it allows visibility while providing radiation attenuation.

Common applications include:

• Hot labs
• Radiopharmaceutical preparation areas
• Shielded viewing windows
• PET imaging observation areas

However, these applications often involve specialized shielding designs beyond standard medical imaging configurations.

Common Misconceptions About Gamma Shielding

Some common misunderstandings include:

• Assuming all lead glass blocks all gamma radiation equally
• Believing standard X-ray shielding is sufficient for nuclear medicine
• Ignoring the importance of shielding continuity
• Assuming lead content alone determines shielding performance

In reality, gamma shielding performance depends heavily on the specific radiation source and shielding design.

Choosing the Right Lead Glass System

When selecting shielding glass for gamma radiation applications, important considerations include:

• Required lead equivalency
• Gamma energy levels
• Window size
• Frame shielding requirements
• Safety glazing requirements
• Shielding continuity

Proper coordination with the project physicist is critical.

For complete shielding assemblies, explore our Lead-Lined X-Ray Windows.

For standalone shielding glazing products, see our X-Ray Lead Glass.

Final Thoughts

Lead glass can attenuate gamma radiation, but the effectiveness depends on the energy level of the radiation source and the overall shielding design.

Because gamma radiation is often far more penetrating than standard diagnostic X-rays, nuclear medicine applications frequently require more advanced shielding calculations and higher-performance shielding systems.

Proper shielding design should always be based on a qualified radiation shielding report and coordinated carefully to maintain continuous protection throughout the entire assembly.
