Do Lead Glass Windows Need Lead-Lined Frames?

One of the most common mistakes in radiation shielding projects is assuming that the lead glass alone provides complete protection. In reality, the frame surrounding the glass is just as important as the glass itself.

In most X-ray and radiation shielding applications, lead glass windows do require lead-lined frames in order to maintain continuous shielding around the entire opening.

Without a properly shielded frame, radiation can potentially pass around the edges of the glass—even if the glass itself meets the required lead equivalency.

This guide explains why lead-lined frames matter, how shielding continuity works, and when specialized framing systems are required.

Why the Frame Matters

Radiation shielding works as a continuous barrier system. The wall, glass, frame, doors, and surrounding materials must all work together to prevent radiation leakage.

While lead glass blocks radiation through the viewing area itself, the frame surrounds the perimeter of the opening. If the frame is not shielded properly, it can become a weak point in the shielding system.

Think of it this way:

• The glass protects the center opening
• The frame protects the edges and perimeter

Both are necessary to maintain shielding continuity.

What Is a Lead-Lined Frame?

A lead-lined frame is a specially constructed frame assembly that contains lead material within the frame structure itself. These frames are designed specifically for radiation shielding applications.

The frame’s lead lining is typically matched to the required lead equivalency specified for the room.

Lead-lined frames are commonly used with:

• X-ray windows

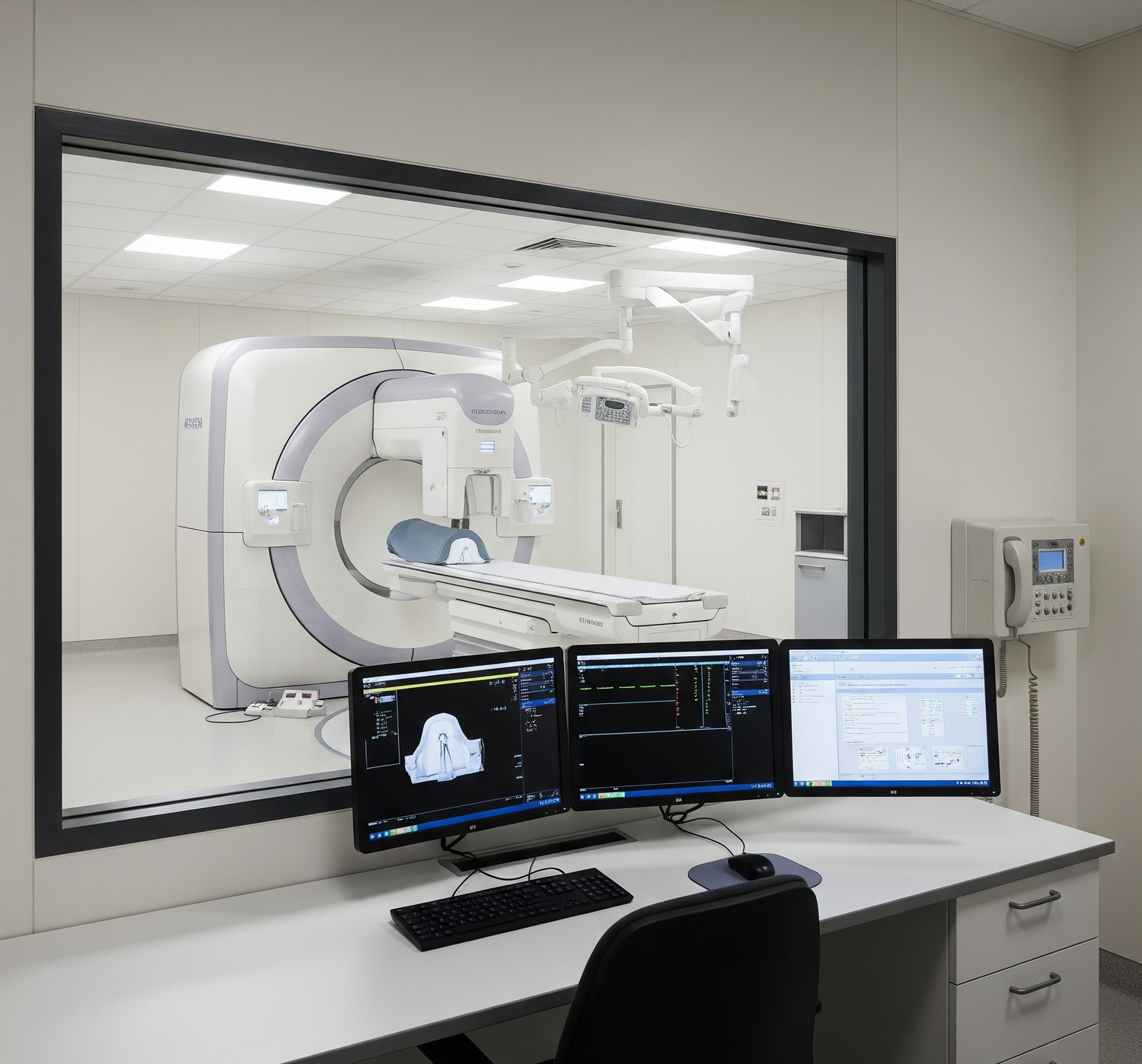

• Control room observation windows
• Lead-lined doors
• Medical imaging suites
• CT rooms
• Veterinary X-ray rooms

What Happens if You Use a Standard Frame?

Using a standard commercial frame with lead glass can create gaps in radiation protection around the perimeter of the opening.

Potential problems include:

• Radiation leakage around the edges
• Failed shielding inspections
• Code compliance issues
• Costly rework after installation

Even if the glass itself meets the required shielding level, the surrounding frame can still become the weakest point in the wall if it is not properly shielded.

How Shielding Continuity Works

Radiation shielding systems are designed so that all materials overlap and maintain consistent protection throughout the room envelope.

At a window opening, shielding continuity usually requires:

• Lead-lined wall construction
• Lead-lined frame assemblies
• Proper overlap between wall shielding and frame shielding
• Lead glass matched to the required lead equivalency

The goal is to ensure there are no weak spots where radiation can pass through.

This is especially important in higher-energy applications such as CT rooms or fluoroscopy suites, where shielding requirements are more demanding.

Do All Radiation Shielding Windows Need Lead-Lined Frames?

In most permanent medical and industrial radiation shielding applications, yes.

Lead-lined frames are generally recommended whenever the surrounding wall itself contains radiation shielding.

This includes:

• Hospitals
• Dental offices
• Veterinary clinics
• Medical imaging facilities
• Industrial NDT rooms
• Research laboratories

There may be some temporary or low-energy applications where alternative approaches are acceptable, but these should always be reviewed by the project physicist or design professional.

Lead Equivalency Must Match

The frame shielding should typically match the lead equivalency specified for the window and surrounding wall.

For example:

• A 1.5mm Pb wall usually requires a 1.5mm Pb frame and glass assembly
• A 2.0mm Pb wall typically requires matching 2.0mm shielding continuity

Mixing shielding levels can create inconsistent protection and may not meet project requirements.

The required lead equivalency should always be determined by the shielding report or radiation physicist.

Structural Support Is Also Important

Lead glass is significantly heavier than standard glass because of its dense shielding composition.

A proper lead-lined frame must not only maintain shielding continuity—it must also safely support the weight of the glass over time.

Large shielding windows can become extremely heavy, particularly at higher lead equivalencies.

The framing system should be designed to handle:

• Glass weight
• Wall conditions
• Anchor requirements
• Installation loads
• Long-term structural stability

Can You Add Lead to an Existing Frame?

Attempting to modify standard commercial frames in the field is generally not recommended.

Improperly added shielding materials can:

• Create incomplete protection
• Interfere with installation tolerances
• Cause inspection failures
• Result in inconsistent shielding performance

Using a properly engineered lead-lined frame designed for radiation shielding applications is usually the safest and most reliable solution.

Benefits of Complete Lead-Lined Window Systems

Complete shielding window assemblies help simplify installation and reduce the risk of shielding errors.

A complete system helps ensure:

• Proper lead equivalency matching
• Compatible frame and glass sizing
• Continuous shielding around the opening
• Correct support for the glass weight
• Simplified coordination during construction

For complete shielding assemblies, see our Lead-Lined X-Ray Windows.

For standalone shielding glass products, view our X-Ray Lead Glass.

Common Installation Mistakes

Some of the most common issues seen in the field include:

• Installing lead glass into standard aluminum storefront framing
• Leaving gaps between the frame and wall shielding
• Using mismatched lead equivalencies
• Failing to coordinate wall thickness correctly
• Improper support for large glass panels

These problems can often be avoided by using purpose-built radiation shielding window systems from the beginning of the project.

Final Thoughts

In most radiation shielding applications, lead glass windows do require lead-lined frames in order to maintain continuous protection around the entire opening.

The glass alone is not enough. The frame, wall shielding, and surrounding construction must all work together as a complete shielding system.

Using the correct lead-lined frame helps prevent radiation leakage, inspection failures, and costly project delays while ensuring the installation performs as intended long term.
