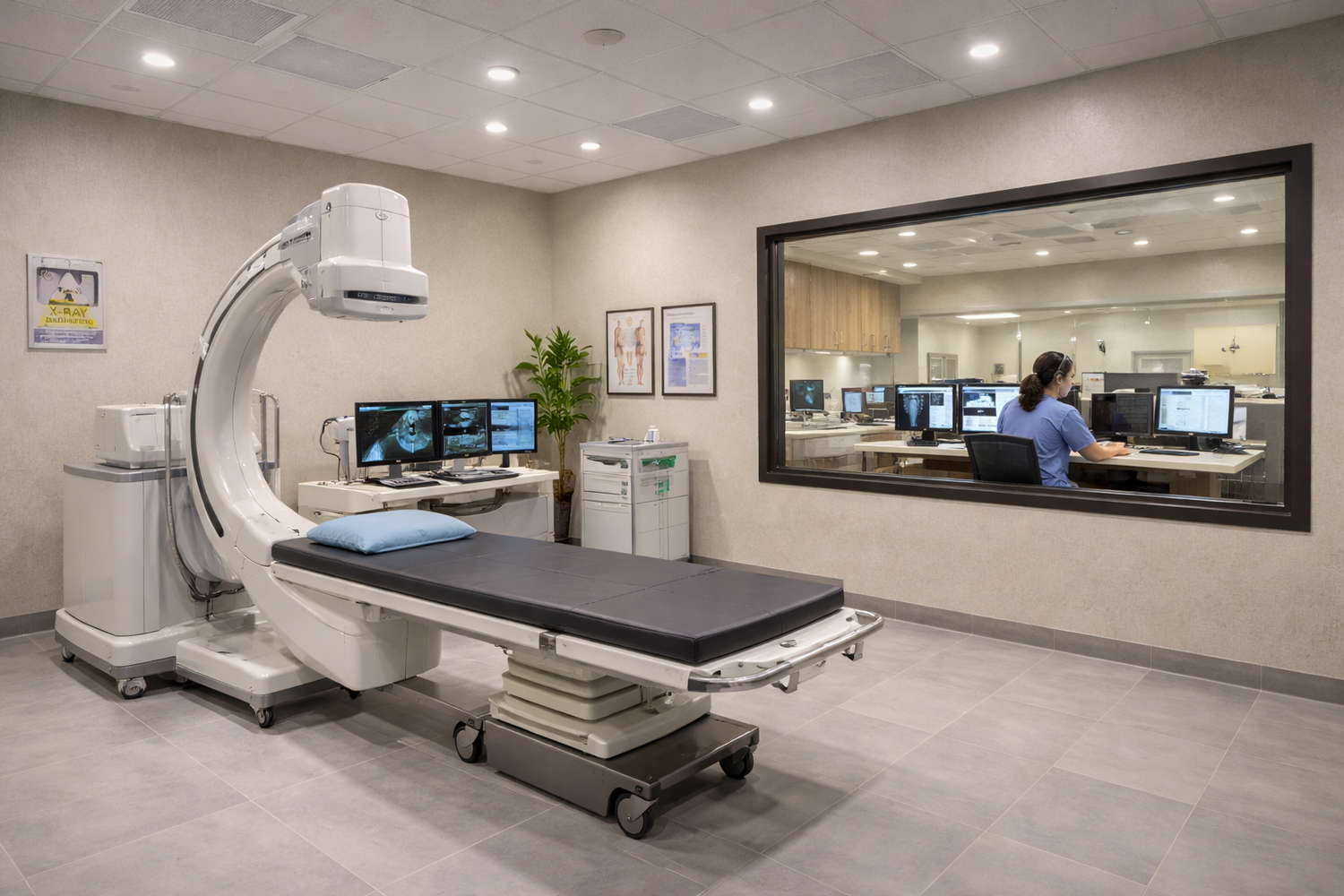

Common Lead Glass Installation Mistakes

Lead glass is a specialized radiation shielding material that requires careful handling, proper framing, and correct installation procedures. Even high-quality shielding glass can fail to perform properly if installation mistakes are made during construction.

Unfortunately, many issues with X-ray windows and lead glass systems are caused not by the product itself, but by avoidable installation errors.

From failed inspections to cracked glass and radiation leakage, improper installation can create expensive problems that are difficult to correct after the room is complete.

This guide covers some of the most common lead glass installation mistakes and how to avoid them.

1. Using Standard Frames Instead of Lead-Lined Frames

One of the most common mistakes is installing lead glass into a standard commercial frame that does not contain radiation shielding.

Even if the glass itself meets the required lead equivalency, the surrounding frame can become a weak point where radiation leaks around the perimeter of the opening.

A proper shielding installation should maintain continuous protection throughout the entire wall assembly, including:

• The wall shielding
• The frame
• The glazing system
• The lead glass itself

For this reason, lead glass is typically installed in specialized lead-lined frames designed for radiation shielding applications.

Complete Lead-Lined X-Ray Windows help ensure proper shielding continuity and compatibility between the glass and frame system.

2. Incorrect Rough Opening Dimensions

Lead glass and shielding frames are usually custom manufactured and cannot be easily modified in the field.

Incorrect rough openings can create major installation issues such as:

• Improper fitment
• Delays during installation
• Field modifications that compromise shielding
• Additional fabrication costs

Always verify:

• Approved shop drawings
• Wall thickness
• Frame dimensions
• Lead-lined drywall buildup
• Final finish conditions

Small dimensional errors can become very costly once fabrication has begun.

3. Failing to Maintain Shielding Continuity

Radiation shielding systems are only effective if there are no gaps or interruptions in the protective barrier.

Common continuity mistakes include:

• Leaving gaps between the frame and wall shielding
• Improper lead overlap around openings
• Missing shielding material behind trim
• Unprotected penetrations or fasteners

Even small openings can create leakage points that may cause failed radiation testing or inspection issues.

Shielding continuity should always be planned before installation begins—not improvised afterward.

4. Mishandling the Glass During Installation

Lead glass is significantly heavier and softer than standard float glass because of its lead oxide composition.

Improper handling can result in:

• Edge chips
• Scratches
• Stress cracks
• Breakage

Some common handling mistakes include:

• Setting the glass directly on hard surfaces
• Twisting or flexing large panels
• Using improper suction equipment
• Allowing edges to contact metal framing

Lead glass should always be handled carefully using appropriate glazing procedures and support materials.

5. Attempting to Cut or Modify Lead Glass in the Field

Lead glass is manufactured to exact specifications and should never be cut, drilled, or modified on the jobsite.

Attempting field modifications can:

• Destroy the glass
• Compromise radiation protection
• Create unsafe handling conditions
• Void warranties

All dimensions should be finalized before fabrication begins.

If changes occur after manufacturing, replacement glass is usually required.

6. Ignoring Glass Weight Requirements

Lead glass is extremely heavy compared to standard commercial glazing.

Larger shielding windows may require:

• Additional installers
• Mechanical lifting equipment
• Special structural support
• Reinforced framing systems

Failing to plan for the weight can lead to:

• Unsafe installation conditions
• Frame deflection
• Glass damage
• Improper support over time

Before installation, contractors should confirm that the wall and frame system are designed to support the specified glass weight.

7. Improper Glazing Materials or Setting Blocks

Using incorrect glazing materials can place uneven stress on the glass and increase the risk of cracking.

Proper installation should include:

• Compatible glazing gaskets
• Proper setting blocks
• Even support distribution
• Protection against direct metal contact

Lead glass should never rest directly against hard metal framing components.

8. Not Considering Safety Glass Requirements

Depending on the location and application, building codes may require safety glazing.

This is especially common when the glass is:

• Installed in a door
• Near a doorway
• Close to floor level
• Located in high-traffic areas

Lead glass itself cannot be tempered, but laminated safety backing systems are commonly used to create compliant safety-rated assemblies.

Failing to address these requirements early can create major delays later in the project.

9. Poor Coordination Between Trades

Radiation shielding installations often involve multiple trades, including:

• Drywall contractors
• Lead shielding installers
• Glaziers
• Door and frame installers
• General contractors

Lack of coordination can lead to:

• Incorrect wall thicknesses
• Missing lead overlap
• Improper frame placement
• Scheduling conflicts during installation

Early communication between all parties is critical to a successful installation.

10. Ordering the Wrong Lead Equivalency

Lead glass must match the shielding requirements specified for the room.

Using the wrong lead equivalency can result in:

• Failed inspections
• Non-compliant shielding
• Costly replacement work

The required shielding level should always be based on:

• The shielding report
• Project specifications
• Physicist recommendations

Never assume shielding requirements without verification.

Why Complete Window Systems Help Avoid Problems

Using complete engineered shielding window systems can help eliminate many of the installation issues commonly seen in the field.

A complete assembly helps ensure:

• Compatible frame and glass sizing
• Proper shielding continuity
• Correct structural support
• Simplified coordination during installation

Our Lead-Lined X-Ray Windows are designed specifically for medical and radiation shielding applications.

For standalone shielding glass products, view our X-Ray Lead Glass.

Final Thoughts

Most lead glass installation problems are preventable with proper planning, coordination, and handling procedures.

Using the correct frame system, maintaining shielding continuity, verifying dimensions carefully, and handling the glass properly can help avoid costly mistakes, failed inspections, and project delays.

Radiation shielding systems are highly specialized, and attention to detail during installation is critical for both safety and long-term performance.
