Can Lead Glass Be Tempered?

One of the most common questions about radiation shielding glass is whether lead glass can be tempered like standard safety glass.

The short answer is: No, lead glass cannot be tempered.

Because of the unique composition required for radiation shielding, lead glass behaves very differently from ordinary float glass. While standard glass can often be heat treated or chemically tempered to increase strength and create a safety rating, lead glass cannot undergo the same process successfully.

However, that does not mean lead glass cannot meet safety glazing requirements. There are alternative methods used to create compliant safety-rated assemblies for medical and commercial applications.

Why Standard Glass Is Tempered

Tempering is a process used to strengthen glass and improve safety. Standard annealed glass is heated to a very high temperature and then rapidly cooled, creating internal stresses that make the glass stronger and cause it to break into smaller pieces rather than sharp shards. :contentReference[oaicite:0]{index=0}

Tempered glass is commonly required in areas where accidental human impact is more likely, including:

• Glass doors
• Glass near doors
• Windows close to the floor
• High-traffic commercial areas

These requirements are typically defined by building codes and safety glazing standards.

Why Lead Glass Cannot Be Tempered

Lead glass contains a high percentage of lead oxide and other heavy metal compounds that give the material its radiation shielding properties. These additives also change how the glass reacts to heat.

Unlike standard float glass, lead glass is softer and has a much lower working temperature, which prevents it from surviving the tempering process. :contentReference[oaicite:1]{index=1}

Industry sources consistently state that radiation shielding glass cannot be thermally or chemically tempered. :contentReference[oaicite:2]{index=2}

In other words, the same properties that allow lead glass to absorb radiation are also what make tempering impossible.

Does That Mean Lead Glass Cannot Be Safety Rated?

No. While lead glass itself cannot be tempered, there are other accepted methods used to create safety-rated lead glass assemblies.

The two most common methods are:

• Laminating annealed safety glass to the lead glass
• Applying specialized security or safety film

These approaches help the assembly meet impact safety requirements without attempting to temper the leaded glass itself. :contentReference[oaicite:3]{index=3}

When Is Safety-Rated Lead Glass Required?

Safety glazing requirements vary depending on local building code, application, and installation location.

Safety-rated lead glass may be required when the glass is:

• Installed in a door
• Located within 24 inches of a door
• Installed near floor level
• Used in high-traffic commercial environments

Medical facilities, hospitals, dental offices, and imaging centers frequently encounter these requirements because of the location of observation windows and leaded door vision panels.

For this reason, it is important to determine safety glazing requirements early in the project planning process.

What Is Laminated Lead Glass?

Laminated lead glass is created by bonding additional layers of glass to the radiation shielding glass. This can help the assembly meet impact requirements while also improving durability.

In many applications, laminated safety backing is the preferred solution because it provides:

• Improved safety performance
• Additional structural integrity
• Better retention if breakage occurs
• Compliance with building code requirements

This is commonly used for:

• X-ray door vision lites

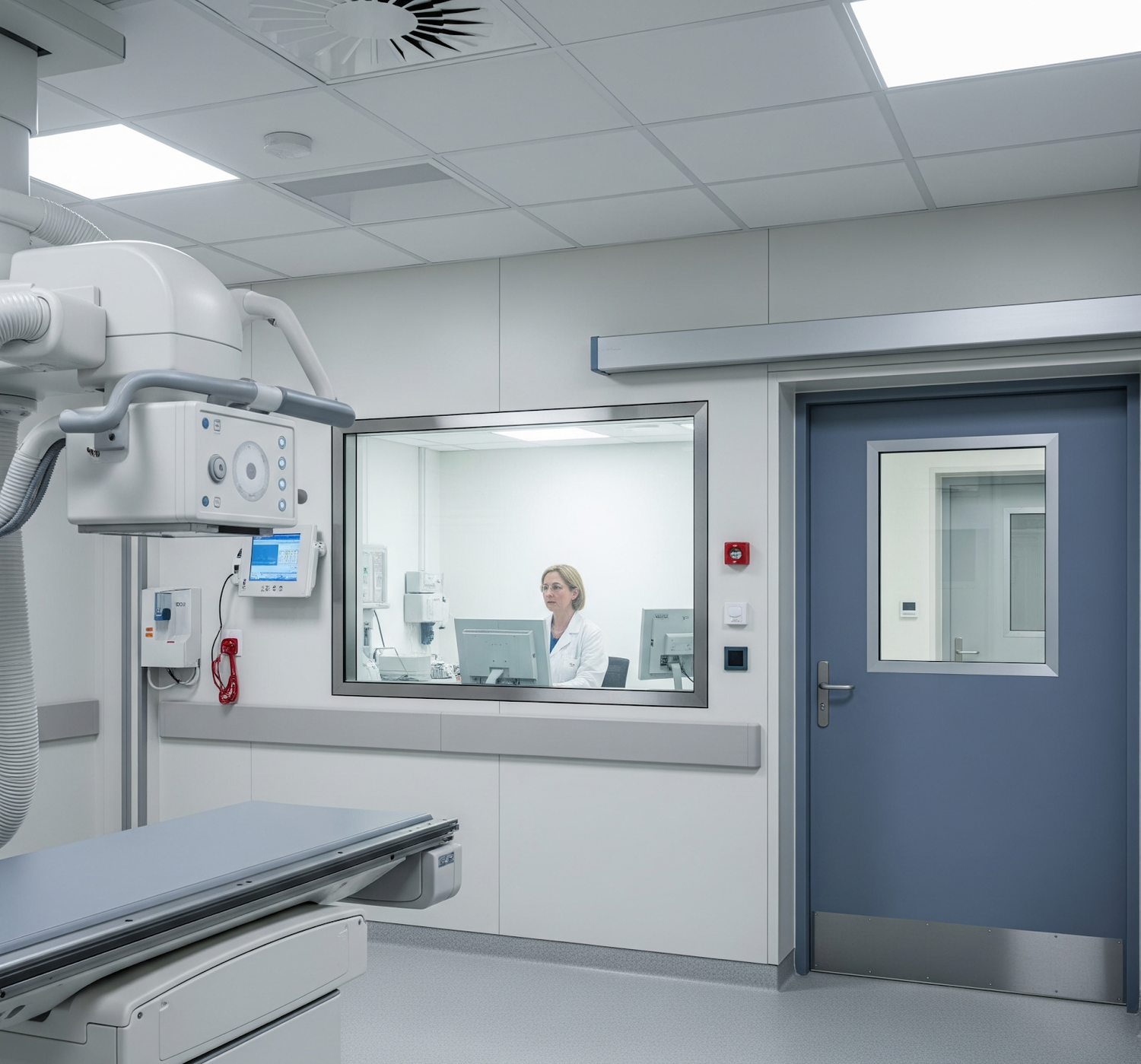

• Hospital observation windows
• Radiation shielding control booths
• Medical imaging room windows

Does Laminated Lead Glass Affect Radiation Protection?

The safety glazing layer itself typically does not provide meaningful radiation shielding. The shielding performance still comes from the lead glass component.

Because of this, the lead equivalency of the shielding glass remains the critical specification when selecting the correct product for the application.

The appropriate lead equivalency should always be determined by the shielding report or radiation physicist.

Is Lead Glass More Fragile Than Standard Glass?

Yes. Compared to ordinary tempered glass, lead glass is generally more fragile and requires more careful handling during shipping and installation.

The higher lead oxide content makes the glass softer and more susceptible to:

• Edge damage
• Scratching
• Stress cracking
• Breakage from improper handling

For this reason, lead glass should always be handled by experienced installers familiar with radiation shielding materials.

Choosing the Right Lead Glass Assembly

When specifying radiation shielding windows, it is important to consider:

• Required lead equivalency
• Safety glazing requirements
• Glass size and thickness
• Frame compatibility
• Building code requirements

For complete assemblies designed for medical and imaging environments, see our Lead-Lined X-Ray Windows.

For standalone shielding glass options, view our X-Ray Lead Glass.

Final Thoughts

Lead glass cannot be tempered because the material composition required for radiation shielding is incompatible with the tempering process.

However, that does not prevent lead glass from being used in safety-rated applications. Through lamination and specialized safety glazing methods, lead glass assemblies can still meet building code requirements while maintaining proper radiation protection.

Understanding these limitations early in the design process helps avoid specification errors, project delays, and compliance issues later on.
