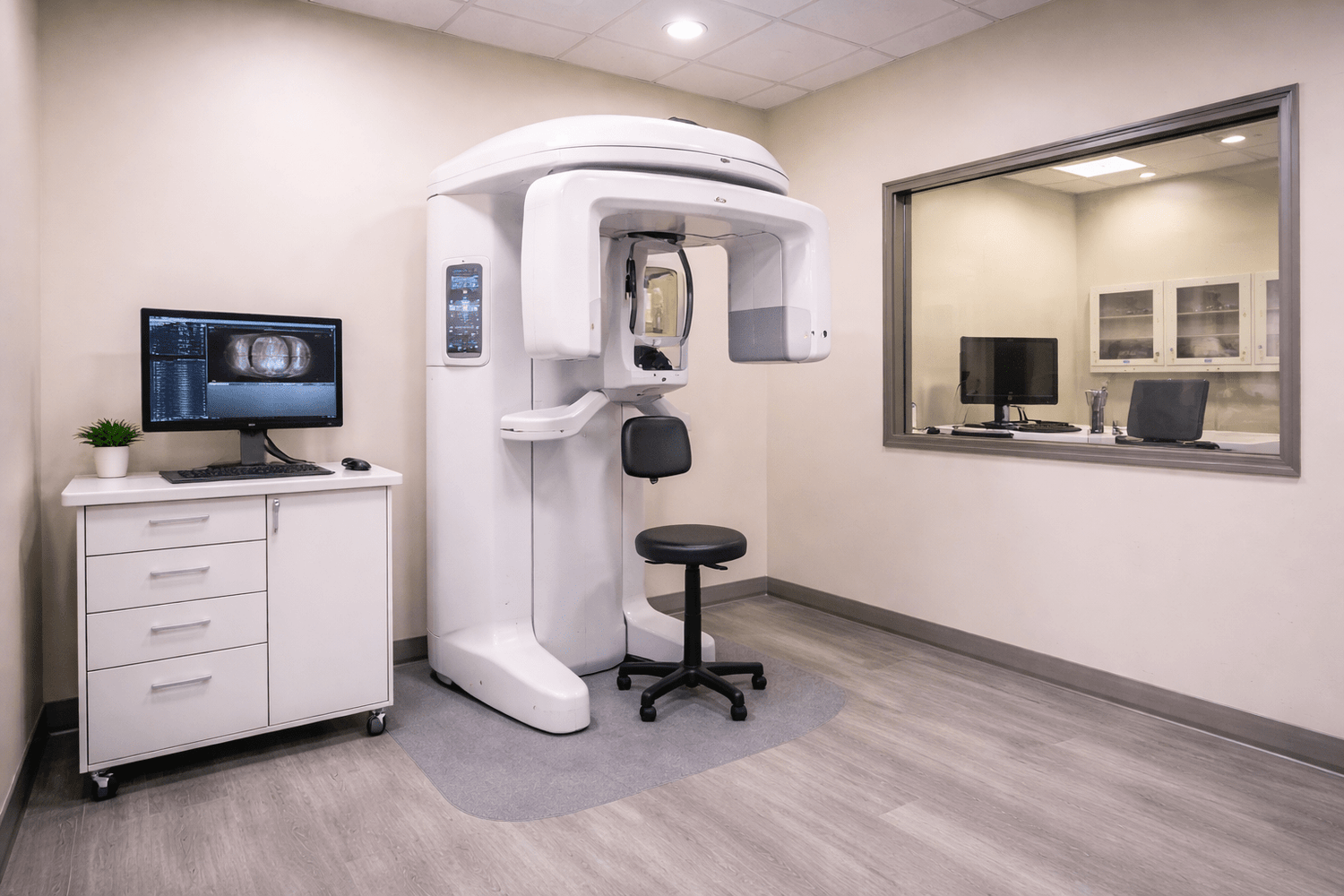

Can Existing Windows Be Retrofitted With Lead Glass?

Yes, existing windows can often be retrofitted with lead glass—but the process is more involved than simply replacing standard glass with radiation shielding glass.

In medical, dental, veterinary, and industrial imaging facilities, retrofit projects are common when:

• An existing room is converted into an X-ray room
• Imaging equipment is upgraded
• Shielding requirements change
• Older windows need replacement
• A facility is remodeled or expanded

However, successful retrofits require careful planning because radiation shielding systems must maintain continuous protection throughout the wall assembly—including the window opening and frame.

This guide explains what to consider before retrofitting an existing window with lead glass.

Why Retrofitting Is Different From Standard Glass Replacement

Standard commercial windows are not designed for radiation shielding applications.

Lead glass is significantly different from ordinary glazing because it:

• Contains lead oxide for radiation attenuation
• Is substantially heavier than standard glass
• Requires shielding continuity around the opening
• Often needs specialized framing systems

Because of these differences, retrofitting an existing window usually involves more than simply swapping the glass panel itself.

The First Step: Determine the Shielding Requirements

Before planning a retrofit, the project’s shielding requirements must be determined.

This information is typically provided by:

• A radiation shielding report
• A medical physicist
• Project specifications
• Architectural plans

The report will specify the required lead equivalency for the room, which commonly ranges from:

• 1.5mm Pb
• 2.0mm Pb
• 2.5mm Pb

The shielding requirements depend on factors such as:

• Type of imaging equipment
• Radiation energy levels
• Room layout
• Occupancy of adjacent spaces

Can Existing Frames Be Reused?

Sometimes—but not always.

One of the most important considerations is whether the existing frame provides proper radiation shielding continuity.

Most standard commercial window frames are not lead lined. Even if lead glass is installed into the opening, the unshielded frame can become a leakage point around the perimeter.

For this reason, many retrofit projects require:

• A new lead-lined frame
• A complete lead-lined window assembly
• Additional shielding modifications around the opening

Attempting to retrofit lead glass into an incompatible frame can create:

• Radiation leakage
• Failed inspections
• Improper support for the glass weight
• Installation complications

Weight Is a Major Consideration

Lead glass is significantly heavier than standard glass because of its dense shielding composition.

Depending on the required lead equivalency and glass size, the existing frame may not be structurally capable of supporting the additional weight safely.

Retrofit projects should evaluate:

• Frame strength
• Wall support conditions
• Anchor capacity
• Installation access

Larger shielding windows can become extremely heavy, especially in CT or fluoroscopy applications.

Maintaining Shielding Continuity Is Critical

Radiation shielding systems must function as one continuous barrier.

When retrofitting an existing opening, shielding continuity must be maintained between:

• The wall shielding
• The frame shielding
• The glazing system
• The lead glass itself

Even small gaps around the frame or wall transitions can create radiation leakage points.

This is why complete engineered window systems are often preferred for retrofit projects.

Can Standard Tempered Glass Be Replaced With Lead Glass?

Physically, yes—but several factors must be evaluated first.

Lead glass:

• Is thicker than standard glass
• Is heavier than standard glass
• Cannot be tempered
• May require safety glazing depending on code requirements

The existing glazing pocket and frame depth must be compatible with the required shielding glass thickness.

Additionally, if safety glazing is required, laminated safety-rated lead glass assemblies may be needed.

Retrofit Projects Often Require Field Verification

Existing conditions can vary significantly from original building drawings.

Before ordering lead glass, contractors should verify:

• Exact frame dimensions
• Wall thickness
• Existing glazing pocket size
• Structural conditions
• Accessibility for installation

Lead glass is custom manufactured and cannot typically be modified in the field.

Accurate measurements are critical before fabrication begins.

When a Complete Window Replacement Makes More Sense

In many retrofit situations, replacing the entire window assembly is more practical than trying to adapt an existing frame.

A complete replacement can provide:

• Proper lead-lined framing
• Correct shielding continuity
• Compatible glass support
• Simplified installation
• Improved long-term reliability

For retrofit and new construction projects, our Lead-Lined X-Ray Windows are designed specifically for radiation shielding applications.

Glass-Only Retrofit Options

In some situations, existing shielding frames may already be compatible with replacement lead glass panels.

For these applications, standalone X-Ray Lead Glass may be an option.

However, compatibility should always be verified before ordering.

Common Retrofit Mistakes

Some of the most common retrofit problems include:

• Using standard frames without lead lining
• Ignoring shielding continuity around the perimeter
• Underestimating the weight of the glass
• Failing to verify glazing pocket depth
• Incorrect field measurements
• Ordering the wrong lead equivalency

These issues can lead to failed inspections, installation delays, and expensive rework.

Final Thoughts

Existing windows can often be retrofitted with lead glass, but successful installations require careful planning and proper shielding design.

The most important factors include:

• Correct lead equivalency
• Proper frame compatibility
• Structural support for the glass weight
• Continuous shielding around the opening
• Accurate field measurements

In many cases, replacing the entire window assembly with a properly engineered lead-lined system provides the safest and most reliable long-term solution.
