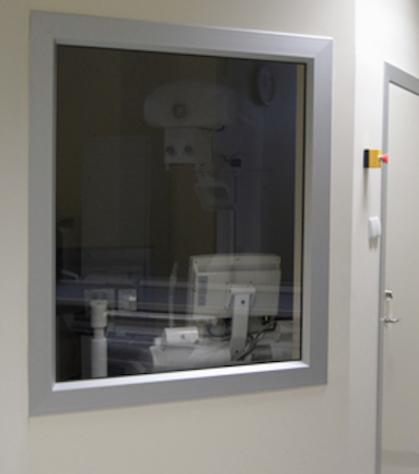

What Lead Glass Thickness Do I Need? (Physicist-Approved Guide)
Choosing the correct lead glass thickness isn’t a guess—it’s a calculation. For architects, contractors, and Radiation Safety Officers (RSOs), getting this right is critical to ensure compliance, pass inspection, and most importantly, protect staff and patients.
The challenge is that there’s no one-size-fits-all answer. Required thickness depends on radiation type, workload, distance, and shielding design.
If you want a visual walkthrough of how shielding systems come together in real-world installations, you can review our videos here:
👉 https://leadglasspro.com/pages/videos
Understanding Lead Equivalency vs. Glass Thickness
Before diving into requirements, it’s important to clarify a common misconception:
- Lead equivalency (mm Pb) = how much radiation shielding the glass provides
- Glass thickness (inches or mm) = the physical thickness of the panel
Two products may have the same physical thickness but different shielding performance depending on composition. Always specify lead equivalency, not just thickness.
Radiation Types and Why They Matter
Diagnostic X-Rays
Found in general radiography, fluoroscopy, and CT. Lower to moderate energy levels.
Typical lead equivalency: 1.5 mm – 2.0 mm Pb for standard rooms; 2.5 mm Pb for higher workload or proximity.
CT (Computed Tomography)
Higher workload and continuous exposure compared to standard X-ray.
Typical lead equivalency: 2.0 mm – 3.0 mm Pb depending on usage and layout.
Mammography
Lower energy radiation with more targeted shielding requirements.
Typical lead equivalency: Often 1.5 mm – 2.0 mm Pb.
Nuclear Medicine & PET
Involves radioactive isotopes (gamma radiation). Lead glass may not always be sufficient alone.
Important: These environments often require specialized shielding materials beyond standard lead glass. Always consult a physicist.
Typical Shielding Requirements by Application
| Application | Typical Lead Equivalency |
|---|---|
| Standard X-ray room | 1.5 – 2.0 mm Pb |
| Fluoroscopy | 2.0 – 2.5 mm Pb |
| CT rooms | 2.0 – 3.0 mm Pb |
| Control booth windows | 2.0 mm Pb (typical) |
These values are starting points—not final specifications.
Factors That Affect Required Thickness
- Workload: Frequency and intensity of equipment use
- Distance: Radiation decreases with distance (inverse square law)
- Occupancy: Who is exposed and for how long
- Beam Direction: Primary vs. scatter radiation
- Room Layout: Wall placement and adjacent spaces
Even small changes in these variables can significantly affect shielding requirements.
When You Must Consult a Physicist
Short answer: almost always.
A qualified medical physicist should be involved when:
- Designing a new imaging room
- Changing equipment types or output levels
- Modifying room layout or adding windows
- Working in regulated healthcare environments
Why it matters:
- Ensures compliance with regulations
- Prevents under- or over-shielding
- Avoids costly redesigns and failed inspections
Relevant Standards and Guidelines
- NCRP Report No. 147 – Structural shielding design for medical X-ray imaging facilities
- ASTM C1036 – Standard specification for flat glass
- ASTM C1172 – Laminated architectural flat glass (safety lead glass applications)
These standards define performance expectations and installation requirements.
Common Mistakes to Avoid
- Specifying glass thickness instead of lead equivalency
- Not matching glass to wall shielding
- Ignoring safety glazing requirements
- Skipping physicist review
Final Thoughts
Selecting the correct lead glass thickness is less about guesswork and more about precision planning. While typical ranges can guide early decisions, final specifications should always be based on a shielding report.
For most projects, expect requirements in the range of 1.5 mm to 3.0 mm lead equivalency, depending on application and exposure conditions.
When in doubt, bring in a physicist early—it’s far more cost-effective than fixing mistakes later.
Frequently Asked Questions (FAQs)
What lead glass thickness do I need for an X-ray room?
Most standard X-ray rooms require 1.5 mm to 2.0 mm lead equivalency, but exact requirements depend on workload and layout.
Is thicker glass always better?
No. Over-shielding increases cost unnecessarily. The goal is to meet—not exceed—required protection levels.
What’s the difference between mm Pb and glass thickness?
mm Pb measures shielding performance, while glass thickness is physical size. Always specify mm Pb.
Do CT rooms require thicker lead glass?
Yes. CT rooms typically require 2.0 mm to 3.0 mm Pb due to higher workloads.
Can I skip using a physicist if I follow standard guidelines?
That’s risky. Guidelines are not a substitute for a project-specific shielding calculation.
Does lead glass need to be safety-rated?
In many cases, yes—especially in occupied areas. This may require laminated lead glass that meets ASTM standards.
What happens if I choose the wrong thickness?
You may fail inspection, require costly rework, or compromise safety.
