Key Takeaways:
- Physicist First: Lead thickness must be calculated by a qualified radiation physicist before any door is specified or ordered.
- Frame & Door Are One System: A lead-lined door in an unlined frame fails inspection; both must be equivalent.
- Wrong Glass Fails Code: Impact-resistant safety glass is required in all door lite applications without exception.
A missing lead equivalency on the door schedule. A standard frame is specified behind a shielded door. A vision panel detailed without safety glass. Small specification mistakes like these routinely cause delays, change orders, failed inspections, and expensive rework after construction has already begun. These are the details that send a lead-lined door project back to the drawing board, sometimes after walls are already closed.
At Lead Glass Pro, we supply lead-lined wood doors, metal doors, door lite kits, and compatible hardware to construction teams and design professionals across the U.S. Every product is built to meet radiation shielding compliance requirements from the first order to final inspection.
This article covers the specifications architects and contractors need to ensure lead-lined doors are installed correctly.

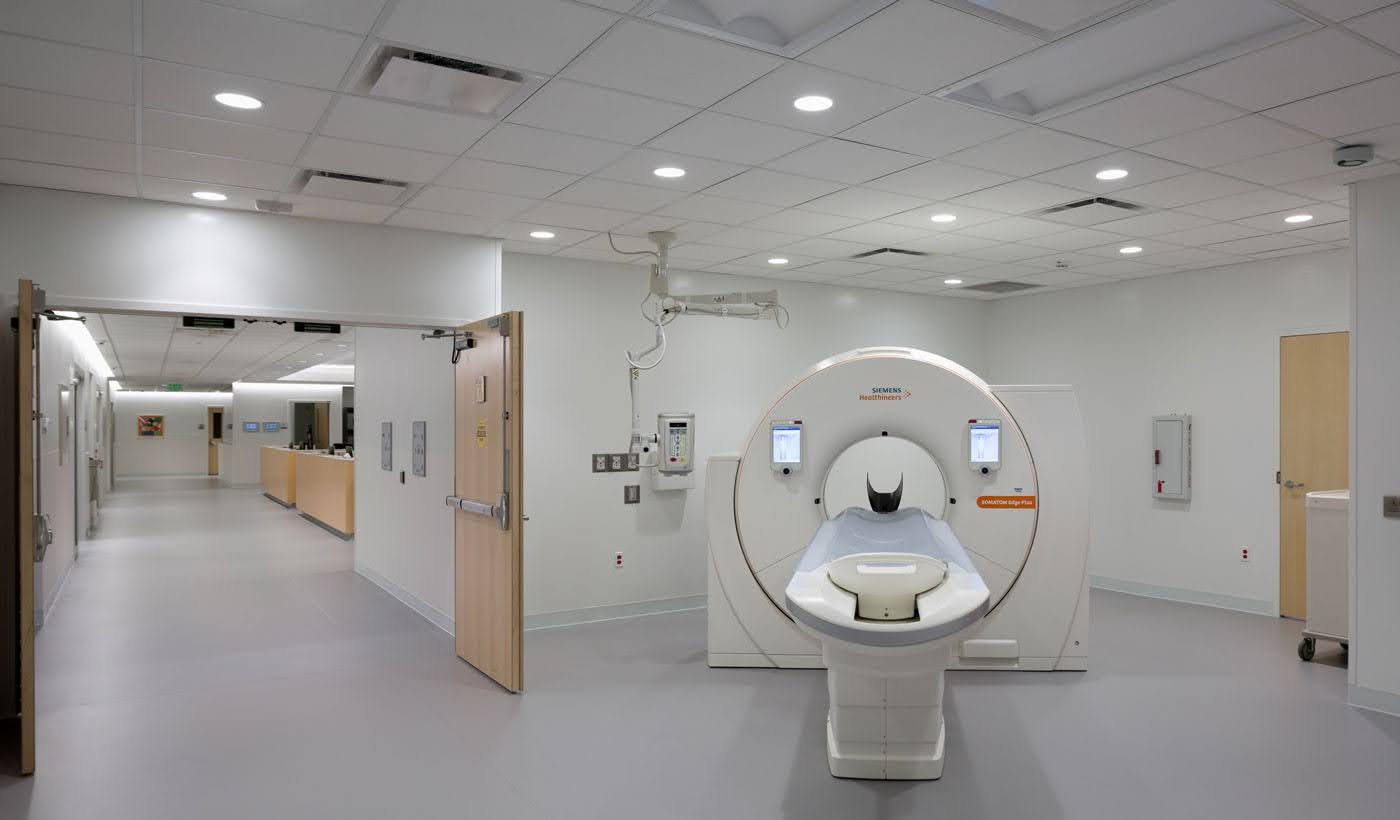

What A Lead-Lined Door Actually Consists Of
A lead-lined door is a complete radiation shielding assembly. Understanding its components helps architects and contractors specify and install it correctly from the start.
A lead-lined door is a standard wood or metal door with a sheet of lead bonded inside the door construction. The lead is internal to the door, sandwiched between the door faces, ensuring a finished appearance consistent with any standard door in the facility. The door operates, closes, and latches like any other door in the building.
The lead lining extends through the full door assembly, including the frame. Lead-lined door requirements specify that both the door and the frame carry equivalent lead lining, since a shielded door installed in an unshielded frame creates a gap in the overall wall assembly. The door, frame, hardware, and vision panel must all be specified and installed as a coordinated shielding system. Many suppliers only provide the door slab, leaving contractors to source frames, hardware, vision kits, and shielding accessories separately. Specifying a complete assembly helps eliminate coordination issues, field modifications, and inspection delays.
How Lead Thickness Gets Determined For A Door
Lead thickness is not a design decision. It is a calculation that must be provided by a qualified expert before anything is specified or ordered.
- A radiation physicist, medical health physicist, or certified county health officer must determine the required lead-lined door thickness for every project
- The calculation depends on equipment type, energy level, workload, and the occupancy of adjacent spaces
- Required lead equivalencies can vary throughout a project depending on equipment, occupancy, distance, and shielding calculations.
- Lead Glass Pro supplies wood and metal lead-lined doors with custom lead thicknesses to match whatever the physicist specifies
- No lead thickness should be assumed based on facility type or previous project experience alone
The Door Lite Kit: Shielding Vision Panels The Right Way
A door lite kit is the vision panel assembly set within a lead-lined door. Getting it right requires the correct glass, the correct frame, and an understanding of where standard glass is not permitted.
What A Door Lite Kit Includes
Lead Glass Pro's door lite kits include impact-resistant X-ray safety glass and a lead-lined vision frame. The kit is supplied as a complete unit. Standard sizes range from 5" x 35" up to 36" x 36", covering the most common door lite configurations used in medical and imaging facility construction.
Why Impact-Resistant Glass Is Required In Doors
Standard annealed lead glass cannot be installed in a door or within 24 inches of a door. Impact-resistant X-ray safety glass is permanently labeled as safety glass in compliance with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II. Using standard glass in a door application is a direct code violation that will not pass inspection.
The Lead-Lined Vision Frame
The vision frame surrounding the glass within the door must also carry lead lining. A compliant glass panel installed in an unlined frame creates an unshielded perimeter around the opening. The lead-lined door details require that the frame and the glass be specified together as a matched shielding assembly, not sourced or installed independently.
Fire-Rated Lead-Lined Doors
When a shielded opening occurs within a rated wall assembly, the door, frame, glazing, and hardware must meet both the radiation shielding requirements and the applicable fire-rating requirements. Fire-rated lead-lined door assemblies must be specified as a complete tested system to maintain compliance with both building and life-safety codes.
What The Construction Drawings Need To Show
Drawings that are missing lead-lined door information create field problems before installation begins. Complete documentation protects the schedule and the inspection outcome.
Lead Equivalency On The Door Schedule
The door schedule must specify the required lead equivalency for each lead-lined door in the project. This figure comes from the radiation physicist's report and must match the installed product exactly. Drawings that list only door dimensions without lead-lined door standards and equivalency requirements leave contractors without the information needed to order correctly.
Frame Specification And Rough Opening Dimensions
The frame must be specified as lead-lined to the same equivalency as the door. Rough opening dimensions on the drawings must account for the frame assembly, including the added thickness introduced by lead lining. Undersized rough openings are among the most common field problems in lead-lined door installations.
Hardware Coordination
Lead-lined door hardware, including locksets and hinges, must be specified as compatible with the lead-lined assembly. Standard hardware is often not rated for the weight and demands of lead-lined doors. Hinges, locksets, closers, and other accessories should be selected specifically for the assembled door weight and intended use. Lead Glass Pro supplies lead-lined cylindrical locksets and compatible door accessories designed for use with lead-lined assemblies.
Vision Panel Location And Size
The door lite kit location and size must be shown on the drawings. The position of the vision panel affects both the usability of the door and the shielding continuity of the overall assembly. Drawings that omit vision panel dimensions or placement create ambiguity, leading to field substitutions that may not meet compliance requirements.
Common Specification Errors That Create Field Problems
Most lead-lined door installation problems trace back to decisions made during specification, not during construction. These are the errors that appear most consistently across projects.
- Omitting Frame Lead Lining: Specifying a lead-lined door without a lead-lined frame leaves an unshielded perimeter that fails inspection
- Using Standard Glass In The Door Lite: Standard annealed lead glass is not code-compliant in door applications; impact-resistant safety glass is required
- Skipping The Physicist's Calculation: Defaulting to a common lead thickness without a project-specific calculation from a qualified expert produces specifications that may under- or over-shield the opening
- Missing Hardware Specifications: Standard locksets and hinges are not rated for the weight of lead-lined doors; compatible hardware must be specified from the outset
- Incomplete Door Schedule Information: A door schedule that lists dimensions but omits lead equivalency, frame specification, and vision panel details gives the contractor insufficient information to order and install a compliant assembly
Final Thoughts
Lead-lined door specifications done correctly keep the project moving and the inspection straightforward.
Lead Glass Pro supplies lead-lined wood doors, metal doors, door lite kits with impact-resistant X-ray safety glass, lead-lined frames, locksets, and compatible accessories, all fabricated to compliance standards and delivered within a week.
Need help reviewing a shielding schedule, door schedule, or physicist report? Our team can help identify the correct lead-lined door, frame, vision panel, and hardware requirements before fabrication begins.
Frequently Asked Questions About Lead-Lined Door Specifications
What is a lead-lined door used for?
It shields radiation room openings while allowing normal door operation and access.
Who determines the lead thickness for a door?
A certified radiation physicist determines the required lead equivalency for every project. Shielding requirements are typically established through a radiation shielding report prepared in accordance with applicable standards such as NCRP Report No. 147 or other project-specific requirements.
Does the door frame also need to be lead-lined?
Yes. The frame must match the door's lead equivalency to maintain shielding continuity.
Can standard lead glass be used in a door lite kit?
No. Impact-resistant X-ray safety glass compliant with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT II is required.
Does Lead Glass Pro supply complete door lite kits?
Yes. Kits include impact-resistant X-ray safety glass and a lead-lined vision frame in standard sizes from 5" x 35" up to 36" x 36".
What hardware is compatible with lead-lined doors?
Lead Glass Pro supplies lead-lined cylindrical locksets and door accessories rated for lead-lined door assemblies.
