Key Takeaways:
- Lead Density Directly Impacts Shielding Capacity: Higher-density materials provide greater radiation absorption per unit thickness, but must be balanced with practical installation requirements.
- Proper Specification Prevents Inspection Failures: Learning the relationship between lead density, lead equivalency, and compliance standards ensures first-time approval without costly rework.
- Fast Delivery Maintains Project Schedules: Lead Glass Pro fabricates code-compliant shielding products in 3 days with a 1-week total turnaround, eliminating delays from specification to installation.

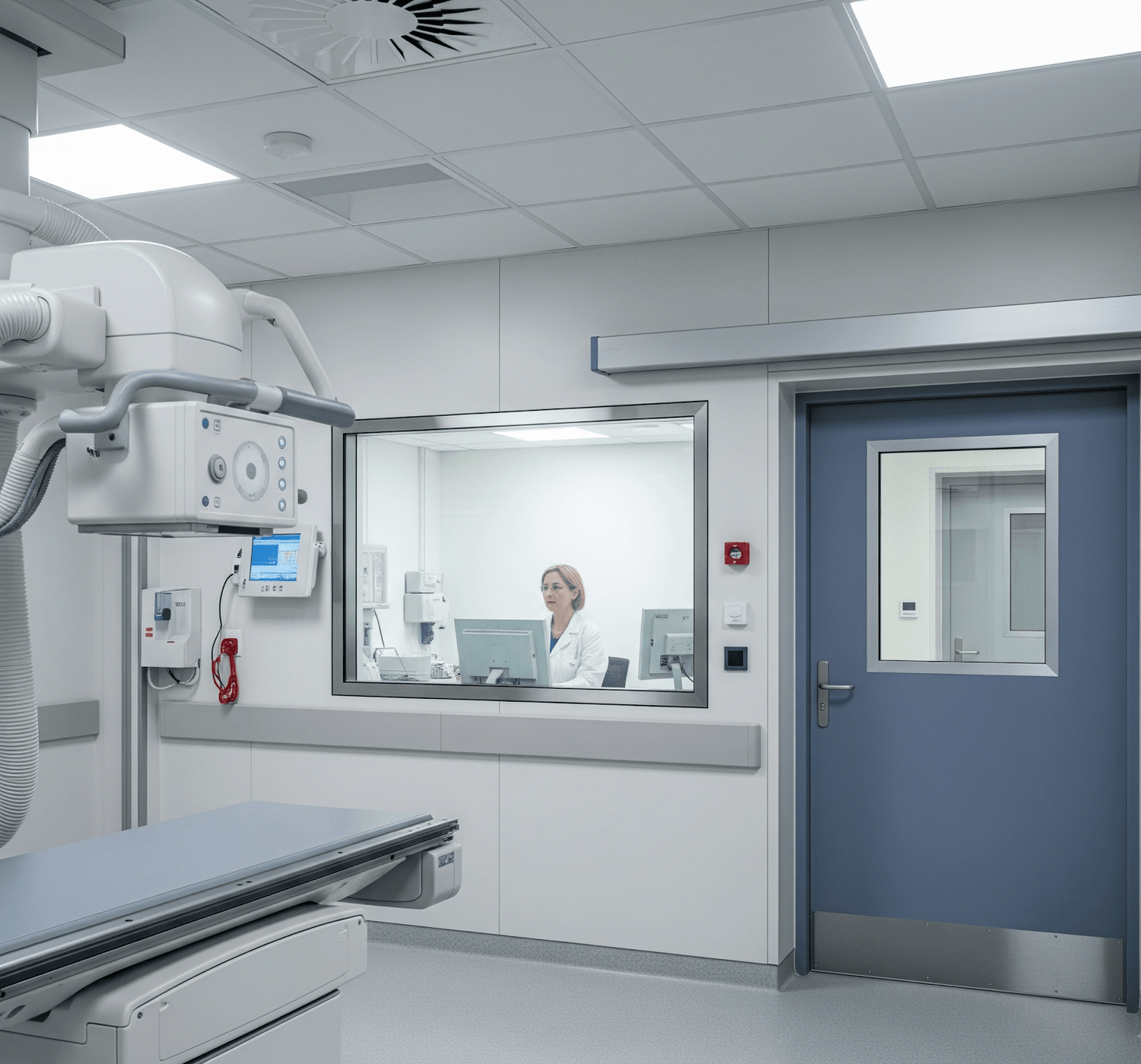

In radiation shielding, performance comes down to how much protection is packed into every layer. When density is miscalculated, shielding can fall short even when materials appear adequate. At Lead Glass Pro, we build shielding systems with precision, ensuring every specification aligns with real-world performance and inspection standards. Our materials are engineered for consistent results, fast fabrication, and dependable integration into your project.
In this guide, we break down lead density, what it actually means for shielding performance, and how it connects to the specifications that matter most on the job.
What Lead Density Actually Means
Lead density refers to the mass of lead per unit volume, typically expressed as grams per cubic centimeter (g/cm³). While density helps explain why lead is effective for radiation shielding, project specifications are not based on density alone. Instead, shielding design relies on lead equivalency — the measured radiation attenuation performance of a complete material assembly.
In practical construction terms, density is used to compare materials, while lead equivalency determines whether a shielding system will meet code requirements and pass inspection. Understanding this distinction helps contractors and facility planners avoid over-engineering or under-protecting imaging spaces.
How Lead Density Affects Shielding Performance
Lead density provides the physical foundation for the effectiveness of radiation protection in medical imaging environments. The relationship between density and shielding capacity determines product selection, compliance outcomes, and installation requirements for construction teams working under tight deadlines. Understanding standard values, such as lead density g/cm3, helps teams compare materials and verify specifications during planning.
How Lead Density Is Measured In Products
Lead density measurement uses standardized testing methods to determine the mass per unit volume of radiation shielding materials. Manufacturers verify density through laboratory analysis that weighs precisely measured sample volumes, calculating grams per cubic centimeter with calibrated instruments. These measurements appear on product specification sheets and compliance documentation provided with each order, alongside values expressed as the density of lead in kg/m3 for engineering calculations.
Density Testing In Lead Glass And Doors
For lead glass windows, density testing accounts for the complete glass composition, including lead oxide content and base glass materials. The measurement reflects actual shielding properties rather than theoretical calculations. Lead-lined doors require density verification of the lead sheet component, typically provided through mill certifications from lead sheet suppliers or independent laboratory testing of production samples.
Why Product Documentation Matters For Shielding Compliance
Radiation shielding inspections focus on verifying that installed materials match the project's specified lead equivalency requirements. Construction teams should request documentation at the time of ordering — not after installation — to confirm that delivered materials meet those performance standards before work begins.
For lead glass assemblies, specification sheets detail the tested lead equivalency ratings, material composition, and dimensional properties required for compliance review. We include complete measurements and compliance certifications with every shipment, eliminating guesswork about product specifications and giving your team what it needs to support inspection from day one.
Providing this documentation alongside installation records helps streamline project close-out, maintain accurate facility compliance files, and supports first-time inspection approval without unnecessary delays.
Long-Term Performance Of Lead Shielding Materials
Lead shielding materials maintain consistent radiation attenuation properties under normal building conditions when properly installed and protected within finished assemblies. Lead does not degrade or lose its shielding capability over time — density measurements remain stable throughout the product's life under normal conditions.
However, physical damage, corrosion exposure, or improper installation can compromise overall barrier performance even when the base material itself remains unchanged. Regular inspection of finished shielding systems ensures that protective continuity stays intact and that no gaps, deformation, or surface damage affects long-term compliance.
Comparing Density Across Shielding Materials
Lead maintains the highest practical density among common radiation shielding materials, making it the standard reference for protection specifications. Alternative materials such as steel, concrete, and specialized composites offer different density profiles, which affect thickness requirements and installation approaches. Comparisons such as lead density vs tungsten are often used to evaluate performance differences in high-density applications.
Density Differences Between Lead Steel And Concrete
Steel has a moderate density of approximately 7.85 g/cm³, requiring approximately 50% more thickness than lead to achieve equivalent radiation protection. This thickness increase creates installation challenges in retrofit projects where wall depth is limited. Concrete's much lower density of 2.3 to 2.4 g/cm³ means substantially thicker barriers are needed, making it impractical for many medical imaging applications.
Lead Glass Density And Shielding Performance
Lead glass achieves radiation protection through its chemical composition rather than density alone. By incorporating lead oxide into the glass matrix, manufacturers create a transparent material capable of attenuating X-ray energy while maintaining optical clarity for observation windows and control room barriers.
Although lead glass has a lower overall density than pure lead sheet — typically 3.2 to 6.2 g/cm³ compared to lead's 11.34 g/cm³ — its shielding performance is verified through lead equivalency testing rather than density comparison. Increased glass thickness compensates for the material difference, allowing properly specified lead glass panels to meet required radiation protection levels.
Because shielding effectiveness depends on both composition and thickness, product selection should always follow the project physicist's specified lead equivalency requirements. Many teams reference a lead equivalency chart to match glass thickness with required shielding levels during specification, rather than relying on density values alone.
Composite Materials And Density Performance
Composite shielding materials combine lead with other elements to address specific installation requirements. Lead-backed drywall integrates thin lead sheeting with standard gypsum panels, creating shieldable walls that install using familiar construction methods. The composite density depends on the lead sheet thickness and the backing materials, but the effective shielding capacity primarily comes from the lead component. For projects that need both wall-integrated and freestanding options, our lead drywall and pure lead sheet collection has everything you need in one place.
Choosing Materials Based On Density And Space
Comparing densities helps construction teams evaluate trade-offs between material costs, installation complexity, and space requirements. For example, lead's high density makes it the most space-efficient option when wall thickness or weight restrictions matter. Lower-density materials may work better when space allows thicker barriers and installation methods favor conventional building materials. Tools like a lead shielding weight calculator can help estimate structural load and better plan installations.
Calculating Lead Density Requirements For Your Project
Accurate lead density calculations connect radiation safety requirements to practical product specifications. Construction teams need clear methods for determining which density specifications meet code requirements and pass inspection without overbuilding or incurring unnecessary costs.
Understanding Radiation Source Requirements
Shielding calculations start with understanding radiation sources in your imaging suite. X-ray equipment specifications list the maximum kilovoltage (kVp) and tube current, which determine the energy and intensity of radiation produced. Higher-energy radiation requires more shielding, increasing the density and thickness of barriers needed around the room.
Considering Occupancy In Adjacent Areas
Occupancy factors estimate the frequency with which adjacent spaces will be occupied during X-ray operations. Areas with continuous occupancy, such as control rooms, require more protection than occasionally occupied spaces, such as storage closets. These factors affect the required shielding capacity, which in turn determines whether lower- or higher-density materials are needed to achieve protection goals.
Accounting For Distance From Radiation Source
Distance from the radiation source affects shielding requirements according to the inverse-square law. Areas farther from the X-ray source receive lower radiation levels, potentially allowing the use of lower-density materials or reduced thickness. However, primary beam directions always require full protection regardless of distance.
Estimating Workload And Exposure Levels
Workload estimates project how many X-ray procedures will occur per week. Higher workloads increase cumulative radiation exposure for adjacent areas, requiring more robust shielding specifications. These estimates feed into calculations that determine required lead equivalency values, which then dictate appropriate material density and thickness combinations.
Using Professional Guidance For Accurate Calculations
Professional shielding calculations from qualified medical physicists provide the most reliable specifications for complex imaging facilities. For standard dental and small medical office installations, manufacturers can guide appropriate density and equivalency selections based on equipment specifications and room layouts. We provide specification assistance at no charge to help construction teams select products that meet calculated shielding requirements.
Custom Solutions For Non-Standard Applications
Standard lead-density products meet most imaging suite requirements, but some projects require custom specifications for unusual room geometries, high-energy equipment, or specialized clinical workflows. Custom solutions maintain the same density controls as standard products while addressing unique installation requirements.
Adapting Density For Retrofit Constraints
Retrofit installations in existing buildings often need custom density specifications to work within structural limitations. Available wall depth, load-bearing capacity, and existing framing may prevent the use of standard product thicknesses. Adjusting density or using composite materials can achieve the required protection within tighter physical constraints.
For a closer look at how sheet-based materials perform across shielding applications, see our resource on lead sheets radiation protection lead glass pro.
Shielding Considerations For Higher-Energy Imaging Equipment
Certain imaging modalities, such as linear accelerators, operate at higher energy levels than standard diagnostic X-ray systems, which increases shielding requirements for doors, windows, and structural barriers. Specifications in these environments may call for lead equivalencies of 6mm or more, necessitating custom barrier designs that combine multiple layers of high-density materials.
Meeting these requirements typically involves selecting materials with verified attenuation performance and ensuring that installation details maintain shielding continuity throughout the assembly. Lead brick chevrons are commonly incorporated into these configurations to provide dense, stackable protection where standard sheet-based products cannot meet the required depth within available space constraints.
Designing For Complex Shapes And Layouts
Angled walls, curved surfaces, and complex geometries require custom-fabricated shielding products that maintain consistent density across non-rectangular shapes. Lead glass windows for angled observation walls need careful specification to ensure lead distribution remains uniform despite varying glass thickness profiles. We fabricate custom products with the same 3-day production timeline as standard items when specifications are clearly defined.
Working With Manufacturers During Shielding Specification
Clear communication with shielding manufacturers prevents specification errors that delay projects or compromise compliance. Radiation shielding requirements should always originate from qualified medical physicists or project design professionals — manufacturers support this process by helping translate specified lead equivalency values into practical product configurations and installation solutions.
Providing complete equipment details and project drawings upfront allows manufacturers to verify that proposed products meet your protection requirements and installation constraints, reducing the risk of errors before fabrication begins.
Providing Complete Equipment Specifications
Equipment specifications should include X-ray generator kVp ratings, tube current capabilities, and beam orientation. This information helps manufacturers confirm that recommended products match the radiation energies your shields need to block. Mismatched specifications between equipment and shielding create inspection failures even when products meet their rated performance levels.
Planning Budget Based On Density Requirements
Lead density affects product costs, but the relationship isn't always linear. Higher-density materials sometimes reduce total costs by allowing thinner products that weigh less and install more easily. We provide transparent pricing for standard products on our website and custom quotes within 24-48 hours, allowing accurate budgeting before construction schedules finalize.
Documentation For Inspection And Compliance
Complete documentation packages simplify inspections and provide permanent records of shielding specifications. Construction teams should request and organize documentation before inspection schedules to avoid delays from incomplete paperwork.
Fabrication Timelines And Project Coordination
Construction schedules don't allow weeks of waiting when shielding specifications need adjustment or materials need to be sourced quickly. Over 98% of standard Lead Glass Pro orders ship within three business days, helping contractors coordinate installation without creating critical path delays.
Custom-fabricated assemblies may require additional review and production time depending on specification complexity. Clear project documentation and early coordination help ensure realistic scheduling and smooth integration into construction workflows — keeping shielding installation on track without compromising compliance outcomes.
Using Standard Products For Faster Delivery
Standard products with documented density specifications offer immediate availability without the delays of custom fabrication. We stock common lead glass window sizes and door configurations with clearly specified lead density and equivalency ratings. Selecting from standard options eliminates engineering time and delivers products within our 1-week total turnaround.
Using Layered Shielding Strategies
In some installations, multiple shielding layers are used to achieve the required level of radiation protection. When space allows for additional thickness, layering can be a practical solution — for example, two layers of 1mm lead equivalent glass can achieve similar attenuation to a single 2mm equivalent panel, while working more easily within available frames and mounting systems.
However, shielding performance is influenced by factors such as beam energy, scatter conditions, and installation geometry. For this reason, layering strategies should always follow guidance from the project's medical physicist rather than relying on simple thickness comparisons. Properly engineered layered assemblies can help meet protection requirements while accommodating structural or spatial constraints, provided continuous coverage is maintained without gaps or weak points.
Using Hybrid Barrier Design Strategies
Hybrid barrier designs combine different density materials where appropriate for specific room areas. Primary barriers in direct X-ray beam paths use maximum-density specifications for compact protection, while secondary barriers for scattered radiation may use lower-density materials that still meet code requirements. This targeted approach optimizes cost and installation complexity without compromising protection.
Planning Density Requirements Early In Design
Adjusting shielding specifications during design rather than after fabrication prevents timeline impacts from density corrections. Early consultation with manufacturers identifies density requirements before construction begins. We provide specification guidance at no charge during project planning, helping construction teams select appropriate density levels before ordering materials.
Verifying Density Before Inspection
Pre-inspection verification prevents failed inspections due to incorrect density specifications. Requesting manufacturer documentation that confirms products meet architectural specifications allows construction teams to address specification issues before inspection schedules. Our documentation packages include certifications formatted for easy inspection review, supporting first-time approval without delays.
Getting It Right From Specification To Installation
Successful radiation shielding projects balance lead density specifications with practical installation requirements and inspection compliance. Starting with accurate specifications and working with responsive manufacturers prevents the delays and rework that derail construction timelines.
- Clear Communication Of Specifications: Clear communication among construction teams, engineers, and manufacturers ensures everyone understands density requirements and how they translate to physical products. Written specifications should state required lead equivalency ratings, allowing manufacturers to recommend appropriate density and thickness combinations.
- Planning For Product Lead Times: Advance planning for product lead times prevents shielding installation from becoming the critical path in construction schedules. Our 3-day fabrication with 1-week total turnaround allows construction teams to order shielding products after major construction is complete but before finish work begins.
- Coordinating Installation With Construction Teams: Installation coordination between general contractors and specialty trades ensures proper mounting of high-density products. Lead glass windows and lead-lined doors require precise frame alignment and adequate structural support. At Lead Glass Pro, we design products for installation by general contractors using standard tools and methods.
- Organizing Documentation For Inspection: Final documentation submittal organizes all density certifications, equivalency test reports, and compliance statements for inspection review. Complete packages prevent inspection delays from missing paperwork and provide permanent records for facility compliance files. We deliver documentation formatted for immediate submittal, reducing administrative burden on construction teams.
- Verifying Installation After Completion: Post-installation verification confirms that shielding performs as specified. Visual inspections check for gaps, damaged areas, or installation errors that could compromise protection regardless of proper material density. We provide post-installation support to address any questions during inspection processes.
Final Thoughts
Lead density determines radiation shielding effectiveness, structural requirements, and compliance outcomes across medical imaging facility construction. Understanding the relationship between density, lead equivalency, and practical installation requirements helps construction teams specify products that pass inspection the first time while maintaining project schedules.
Accurate density specifications start with clear communication about radiation sources, required protection levels, and installation constraints. Working with manufacturers that provide transparent documentation and fast turnaround times eliminates uncertainty and prevents delays caused by specification errors or long fabrication waits.
At Lead Glass Pro, our direct manufacturing approach delivers code-compliant radiation shielding products within 1 week without compromising quality or completeness of documentation. We fabricate lead glass windows, lead-lined doors, and lead-backed drywall in-house at USA facilities, controlling density verification and compliance certifications from raw materials through final shipment. With us, construction teams get the density specifications they need with the timeline certainty their schedules require.
Frequently Asked Questions About Lead Density
What is lead density, and why does it matter in radiation shielding products?
Lead density measures mass per volume (g/cm³) in shielding materials. Higher density provides greater radiation protection per unit thickness, affecting product specifications, structural loads, and compliance with building codes and radiation safety regulations.
How do you measure lead density in lead glass windows and shielding materials?
Manufacturers measure lead density through laboratory analysis, weighing precisely measured sample volumes. Certified test results document the actual density values and accompany products with compliance certifications confirming that the specifications match the delivered materials.
What's the difference between lead density and lead equivalency in radiation protection?
Lead density measures physical mass per unit volume, while lead equivalency rates the radiation-stopping power relative to pure lead thickness. Products with different densities can achieve the same equivalency rating through varying thickness specifications.
Can you have effective radiation shielding with lower lead density products?
Yes, lower-density materials like lead glass achieve effective protection through increased thickness. Space availability and structural capacity determine whether lower-density or higher-density products work better for specific applications.
How does lead density affect the cost of lead glass windows and barriers?
Higher density typically increases material costs due to greater lead content, but may reduce total costs by enabling thinner products that require less structural support. Project-specific factors determine optimal cost-performance balance.
What lead density specifications do building codes and compliance standards require?
Building codes specify lead equivalency rather than density directly. Required equivalency values depend on equipment specifications, room usage, and occupancy factors. Manufacturers translate equivalency requirements into appropriate density and thickness combinations.
