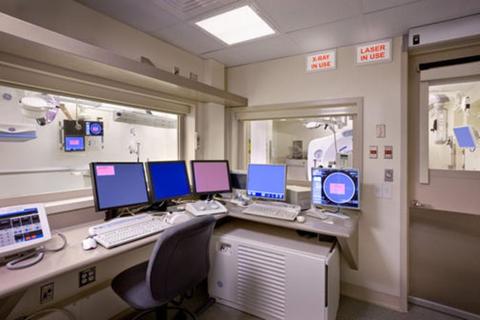

How to Install Lead Glass in X-Ray Rooms (Without Costly Mistakes)
Installing lead glass in an X-ray room isn’t just another construction task—it’s a precision job where safety, compliance, and durability all intersect. Done right, it ensures proper radiation shielding and long-term performance. Done wrong, it can lead to expensive rework, failed inspections, or worse, compromised safety.
https://leadglasspro.com/pages/videos
Why Proper Lead Glass Installation Matters
Lead glass is specifically engineered to shield against radiation while maintaining visibility between rooms. Even small installation errors—like improper framing or stress on the glass—can reduce shielding effectiveness or cause cracking over time.
Framing Tips: Build It Right the First Time
- Ensure Proper Support: Lead glass is significantly heavier than standard glass. Your framing must be structurally reinforced to handle the weight without sagging or shifting over time.
- Maintain Tight Tolerances: Openings should be precise—not too tight, not too loose. Too tight creates stress; too loose creates shielding gaps.
- Use Compatible Shielding Materials: The frame and surrounding wall must provide continuous radiation protection using lead-lined drywall or sheet lead.
- Account for Expansion: Temperature changes can cause slight expansion and contraction. Allow movement without letting the glass shift.
Handling Precautions: Protect Your Investment
- Always Lift—Never Drag: Dragging can scratch or weaken edges, leading to cracks later.
- Use Proper Equipment: Use suction cups, padded supports, and team lifting for larger panels.
- Protect the Edges: Edges are the most vulnerable and prone to chipping or cracking.
- Store Safely Before Installation: Keep glass upright, supported, and in a dry, controlled environment.
Common Failures (and How to Avoid Them)
- Frame Misalignment: Uneven framing causes stress points. Always level and square the opening before installation.
- Improper Sealing: Gaps or incorrect sealants can compromise radiation shielding. Use approved materials.
- Over-Tightening Fasteners: Excess pressure can crack the glass over time. Secure without forcing.
- Ignoring Weight Requirements: Underbuilt framing can sag or fail. Always account for load.
- Skipping Inspection Prep: Not following code requirements can lead to failed inspections.
Watch the Full Installation Process
Seeing the process in action makes all the difference. Follow along with our full instructional guide:
Final Thoughts
Installing lead glass in X-ray rooms requires precision and attention to detail. By focusing on proper framing, careful handling, and avoiding common mistakes, you can ensure a safe, compliant, and long-lasting installation.
Frequently Asked Questions (FAQs)
What makes lead glass different from standard glass?
Lead glass contains lead oxide, which allows it to block radiation while remaining transparent.
How thick should lead glass be for an X-ray room?
The required thickness depends on shielding requirements. Always follow project specifications and local codes.
Can I install lead glass like regular glass?
No. Lead glass is heavier and more sensitive to stress, requiring specialized installation techniques.
Do I need special framing?
Yes. The frame must support the weight and maintain continuous radiation shielding.
What’s the biggest mistake to avoid?
Putting stress on the glass through tight framing, uneven support, or over-tightening fasteners.
How do I prevent radiation leaks?
Ensure there are no gaps and use proper shielding materials and sealants.
Is lead glass fragile?
It is durable but vulnerable at the edges and under uneven pressure.
Can lead glass be cut on-site?
No. It must be manufactured to exact dimensions before delivery.
How should lead glass be stored?
Store upright in a dry, secure area with proper support and padding.
What should I check before inspection?
Check alignment, sealing, structural support, and compliance with all codes.
Where can I watch the installation video?
Who should install lead glass?
Experienced professionals familiar with radiation shielding and construction best practices.
