Mobile Imaging Units: Do You Need Lead Glass?
Mobile imaging units—such as mobile X-ray, CT, and diagnostic trailers—are becoming increasingly common in hospitals, emergency response, and rural healthcare settings.
A common question is whether these mobile systems require lead glass for radiation shielding and operator safety.
The answer is: yes, in many cases lead glass is required or strongly recommended depending on the system design and shielding report.
Shielding requirements are typically based on NCRP Report No. 147, which governs structural shielding for medical imaging facilities, including mobile and modular installations.
For installation examples and real-world applications, you can also view our video resources here:
👉 https://leadglasspro.com/pages/videos
What Are Mobile Imaging Units?
Mobile imaging units are self-contained diagnostic systems installed in trailers, trucks, or portable modular rooms.
Common types include:
- Mobile X-ray units
- Mobile CT scanners
- Mobile MRI (non-radiation but often co-located with X-ray systems)
- Portable diagnostic trailers
These systems allow imaging services to be delivered outside of traditional hospital environments.
Do Mobile Imaging Units Require Lead Glass?

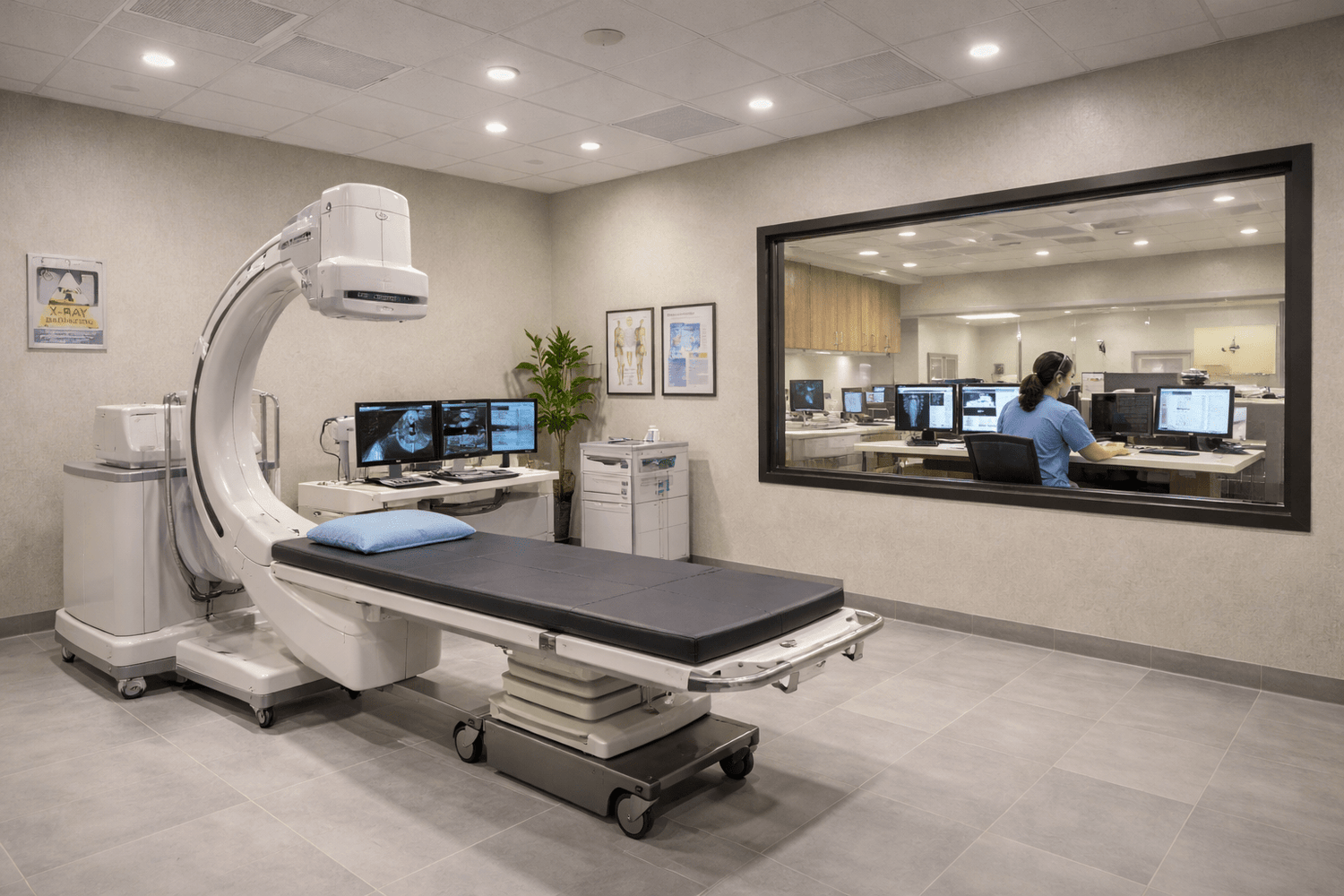

In most mobile X-ray or CT systems, lead glass is required wherever operators need to visually monitor patients from a protected control area.
Lead glass is typically used in:
- Operator control windows inside mobile trailers
- Partition windows between scan room and control station
- Observation panels in compact imaging layouts
Even in mobile environments, radiation protection rules are the same as fixed facilities.
Why Lead Glass Is Critical in Mobile Systems
Mobile imaging units present unique design challenges because space is limited and shielding must be highly efficient.
Lead glass provides:
- Direct visual monitoring of patients during scans
- Protection for operators in tight control spaces
- Compliance with shielding requirements in compact layouts
Without lead glass, operators would need to rely entirely on cameras or remote systems, which may not satisfy all design requirements.
Typical Shielding Requirements for Mobile Units
| Modality | Energy Range | Typical Lead Glass Requirement |
|---|---|---|
| Mobile X-ray | 60–100 kVp | 1.0 – 1.5 mm Pb |
| Mobile CT | 100–140 kVp | 2.0 – 3.0 mm Pb |
| Mobile Fluoroscopy | 70–120 kVp (continuous) | 2.0 mm Pb or higher |
Final requirements must always be verified by a qualified medical physicist based on system usage and shielding analysis.
Standards That Apply to Mobile Imaging Shielding
Even though these systems are mobile, they must comply with the same core radiation safety standards as fixed installations:
- NCRP Report No. 147 – Structural shielding design for medical X-ray imaging facilities
- IEC 61331 – Protective devices against diagnostic X-radiation
- ASTM C1036 – Flat glass quality requirements
- ASTM C1172 – Safety laminated glass standards
Design Challenges in Mobile Imaging Units
Mobile units require careful engineering because shielding must be optimized for weight, space, and structural constraints.
Common challenges include:
- Limited wall thickness for shielding materials
- Weight restrictions for transport
- Vibration and movement during travel
- Compact control room layouts
These constraints make proper lead glass selection even more important.
Laminated Lead Glass in Mobile Units
In most mobile applications, laminated lead glass is preferred or required due to safety glazing standards.
This ensures compliance with:
- ASTM C1172 – Safety laminated glass requirements
- Impact resistance requirements for transport environments
Mobile environments experience more vibration and movement than fixed installations, increasing the importance of safety glazing.
Common Mistakes in Mobile Shielding Design
- Underestimating radiation output in compact systems
- Using non-rated glass to reduce weight
- Failing to match shielding between walls and viewing windows
- Ignoring structural movement during transport
- Not consulting a physicist for mobile-specific design
These mistakes can result in non-compliance or unsafe operating conditions.
Final Thoughts
Mobile imaging units must meet the same radiation protection standards as fixed facilities, even though their environments are more compact and mobile.
Lead glass plays a critical role in these systems by enabling safe visual monitoring while maintaining compliance with NCRP-based shielding design.
When properly specified, lead glass ensures both safety and operational efficiency in mobile diagnostic environments.
Frequently Asked Questions (FAQs)
Do mobile imaging units require lead glass?
Yes. Most mobile X-ray and CT systems require lead glass in control or observation windows.
Is shielding different in mobile units compared to hospitals?
No. The same NCRP 147 standards apply, but design constraints differ due to mobility.
What lead rating is typical for mobile X-ray units?
Usually 1.0 to 3.0 mm Pb depending on modality and energy levels.
Is laminated lead glass required in mobile systems?
In most cases, yes, due to ASTM C1172 safety glazing requirements and transport risks.
Who determines shielding requirements for mobile units?
A qualified medical physicist based on system usage and NCRP guidelines.
Can cameras replace lead glass in mobile units?
Cameras may assist monitoring but do not replace required radiation shielding components.
