Lead Glass for Urgent Care Centers

Many urgent care centers rely on in-house X-ray imaging to diagnose fractures, chest conditions, joint injuries, and other common medical concerns quickly and efficiently. Because these imaging systems produce ionizing radiation, proper shielding is an important part of protecting staff, patients, and occupants in surrounding areas.

One of the most important components of many urgent care imaging rooms is lead glass. Lead glass allows medical staff to safely observe the imaging room while remaining behind a protective radiation barrier.

Whether building a new urgent care facility or upgrading an existing clinic, understanding how lead glass works can help improve safety, compliance, and workflow efficiency.

This guide explains how lead glass is used in urgent care centers, why shielding matters, and what facility owners and contractors should consider during design and construction.

Why Urgent Care Centers Use X-Ray Imaging

Urgent care facilities commonly use digital radiography systems for fast diagnostic imaging.

Typical imaging applications include:

• Broken bones and fractures
• Chest imaging
• Joint injuries
• Sports medicine evaluations
• Occupational health screenings
• Minor trauma diagnostics

Because imaging equipment emits radiation, shielding systems are often required to help reduce exposure outside the room.

Why Lead Glass Is Important in Urgent Care Imaging Rooms

Lead glass provides radiation attenuation while still allowing visibility into the imaging room.

This allows technicians and operators to:

• Observe patients during imaging
• Monitor positioning
• View the equipment safely from a protected control area
• Maintain visibility while reducing exposure to scatter radiation

Unlike standard commercial glass, X-Ray Lead Glass contains lead oxide within the glass composition itself, allowing the material to absorb radiation while remaining transparent.

Common Imaging Room Configurations in Urgent Care Facilities

Dedicated X-Ray Rooms

Most urgent care centers use dedicated imaging rooms separated from treatment and waiting areas.

These rooms commonly include:

• Lead-lined walls
• Lead-lined doors
• Lead glass observation windows
• Shielded operator barriers

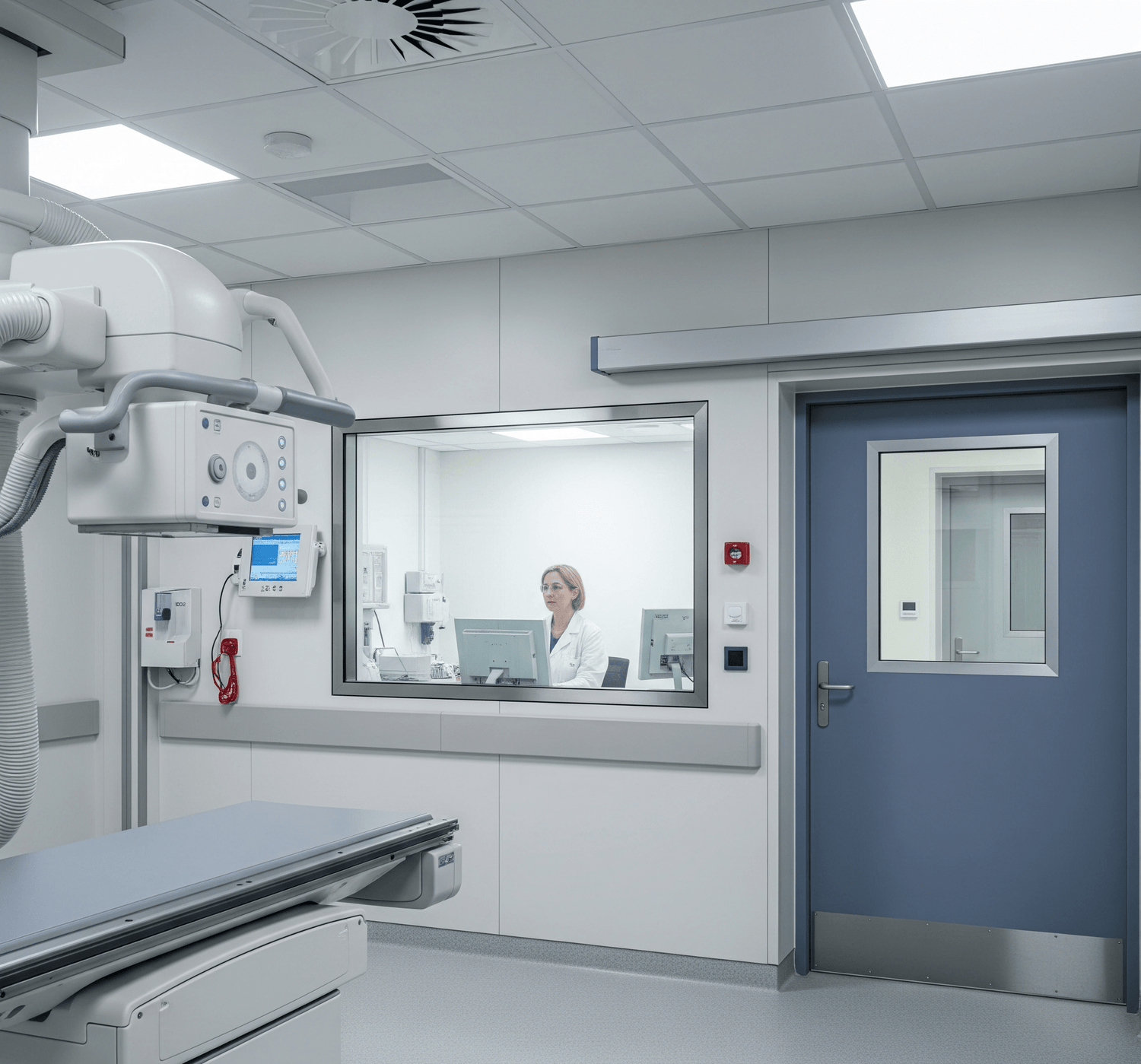

The observation window allows staff to maintain visibility while remaining behind a protective barrier during exposures.

Integrated Imaging Suites

Larger urgent care facilities may include more advanced imaging suites or multiple imaging rooms.

These spaces may require additional shielding coordination depending on:

• Room layout
• Equipment workload
• Occupancy conditions
• Distance to adjacent areas

Lead Equivalency Requirements

Lead glass is typically specified using lead equivalency ratings such as:

• 1.0mm Pb
• 1.5mm Pb
• 2.0mm Pb

The required shielding level depends on:

• The X-ray equipment type
• Maximum operating kVp
• Imaging workload
• Beam direction
• Occupancy conditions in surrounding spaces

The proper lead equivalency should always be determined through a radiation shielding report or physicist review.

Why Standard Glass Is Not Suitable

Standard commercial glazing does not provide meaningful radiation attenuation.

If ordinary glass is installed in a shielding barrier, it can become a weak point where radiation passes through the wall assembly.

Lead glass is specifically engineered to provide visibility while maintaining shielding performance.

Lead-Lined Frames Are Often Required

The glass itself is only one part of the shielding system.

In many urgent care imaging rooms, the frame surrounding the glass must also be lead lined to maintain shielding continuity around the opening.

Using lead glass with a standard unshielded frame can allow radiation leakage around the perimeter.

This is why complete Lead-Lined X-Ray Windows are commonly used in healthcare imaging facilities.

Shielding Continuity Matters

Radiation shielding systems are designed to work as one continuous protective barrier.

This may include:

• Lead-lined drywall
• Lead-lined frames
• Lead-lined doors
• Lead glass windows
• Protected penetrations and transitions

If any part of the system lacks proper shielding, radiation leakage may occur even if the glass itself is correctly rated.

Urgent Care Layout Affects Shielding Design

Shielding requirements are influenced heavily by the spaces surrounding the imaging room.

For example:

• Waiting rooms may require more shielding than storage rooms
• Shared tenant walls may require additional protection
• Operator locations must be protected from scatter radiation

The room layout and occupancy conditions are important parts of the shielding calculations.

Can Existing Urgent Care Facilities Be Retrofitted?

Yes. Existing urgent care facilities are often retrofitted when:

• Adding imaging capabilities
• Upgrading older X-ray systems
• Expanding clinic services
• Converting existing rooms into imaging spaces

Retrofit projects may require:

• Additional wall shielding
• Lead-lined frames
• Lead glass observation windows
• Shielded operator barriers

Accurate measurements and shielding coordination are critical before fabrication begins.

Common Mistakes in Urgent Care Shielding Projects

Some common issues include:

• Using standard glass instead of lead glass
• Ignoring frame shielding requirements
• Ordering incorrect lead equivalency
• Failing to coordinate wall thickness
• Improper overlap between shielding materials
• Overlooking occupancy conditions outside the room

These mistakes can lead to failed inspections, delays, and expensive corrections.

Why Shielding Reports Are Important

The proper shielding design for an urgent care imaging room should be based on a shielding report prepared by a qualified medical physicist or shielding consultant.

The shielding analysis typically evaluates:

• X-ray equipment type
• Maximum operating kVp
• Imaging workload
• Beam direction
• Distance to surrounding areas
• Occupancy conditions

The report then specifies the required shielding levels for walls, windows, and doors.

Choosing the Right Lead Glass for an Urgent Care Center

When selecting lead glass for an urgent care imaging room, important considerations include:

• Required lead equivalency
• Window size
• Frame compatibility
• Wall thickness
• Safety glazing requirements
• Shielding continuity

For standalone shielding glazing products, view our X-Ray Lead Glass.

For complete shielding assemblies, explore our Lead-Lined X-Ray Windows.

Final Thoughts

Lead glass plays a critical role in urgent care imaging rooms by allowing staff to maintain visibility while helping reduce radiation exposure outside the room.

Proper shielding design is essential for creating safe, efficient, and compliant imaging environments in urgent care facilities. Most urgent care x-ray rooms are built with lead-backed Sheetrock panels that install just like regular drywall, keeping renovation simple.

By selecting the correct lead glass and maintaining proper shielding continuity throughout the room, urgent care centers can improve both safety and workflow efficiency.
