Lead-Lined T-Bar Drop Ceiling for X-Ray Rooms

Radiation Shielding for Suspended Ceiling Systems

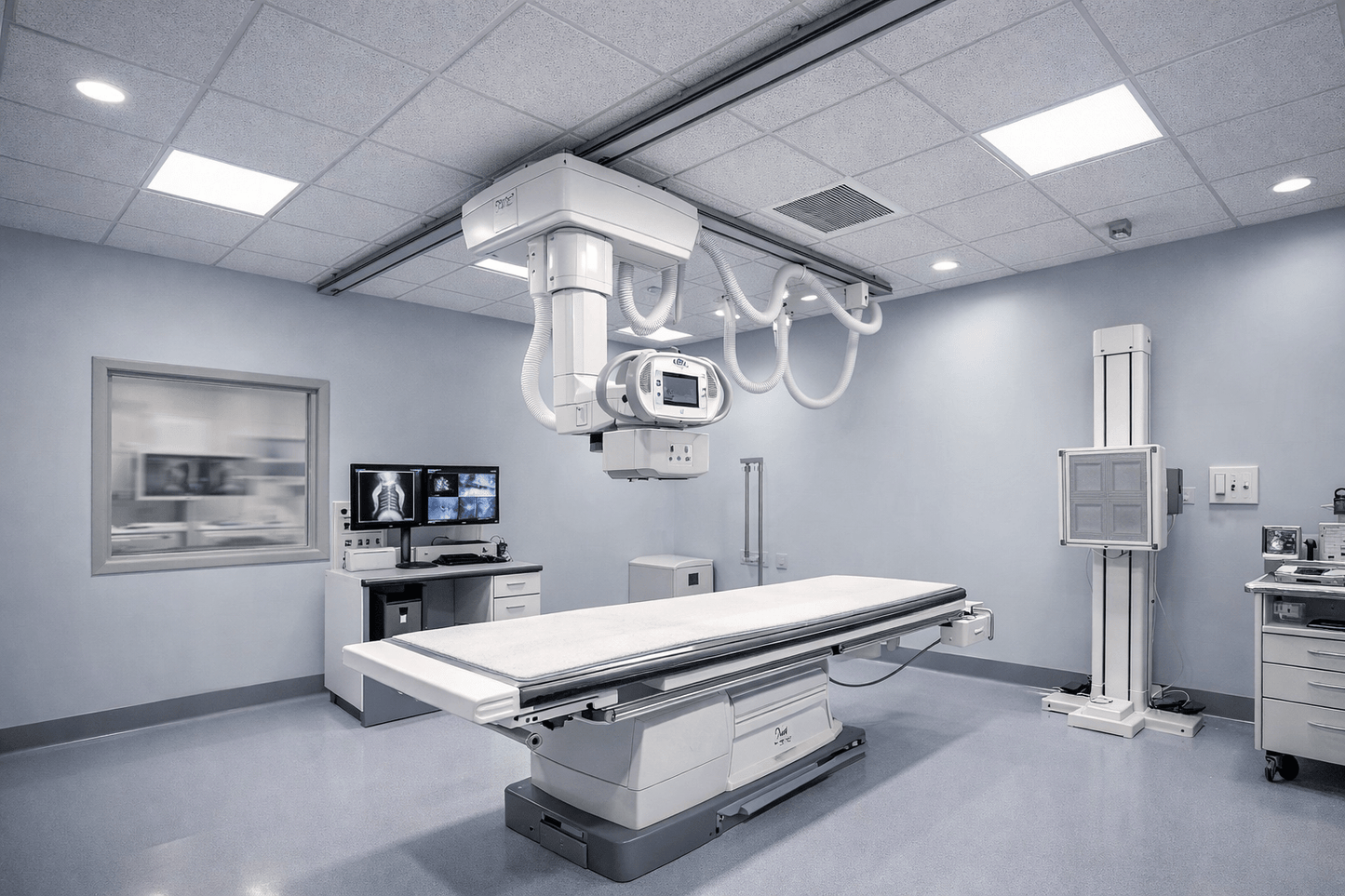

A lead-lined T-bar drop ceiling is an essential component of complete radiation shielding in medical imaging rooms. In many X-ray facilities, shielding requirements extend beyond the walls and control window to include the ceiling structure. Lead-lined T-bar ceiling systems allow contractors to maintain the accessibility and functionality of a standard suspended ceiling while providing the necessary radiation attenuation to protect adjacent areas.

Lead Glass Pro supplies lead-lined T-bar ceiling components specifically designed for X-ray room construction, ensuring shielding remains continuous across the entire ceiling plane without gaps or weak points.

These systems are commonly used in general radiography rooms, fluoroscopy suites, C-arm rooms, interventional radiology labs, and other diagnostic imaging environments where radiation protection calculations require overhead shielding.

What Is a Lead-Lined T-Bar Ceiling?

A lead-lined T-bar ceiling is a suspended ceiling grid system that incorporates sheet lead to create a radiation-shielding barrier above the imaging room.

In a typical installation, sheet lead is installed above or integrated with the ceiling grid system so radiation cannot pass through the ceiling assembly. This allows the room to maintain the appearance and accessibility of a standard drop ceiling while still meeting shielding requirements defined by the project physicist.

Because standard ceiling tiles provide no radiation protection, lead-lined ceiling systems ensure the ceiling assembly maintains the same shielding integrity as surrounding lead-lined walls.

Available Lead Thickness Options

Lead Glass Pro offers lead-lined T-bar ceiling systems in the following standard lead thicknesses:

1/32" Lead (0.8 mm Lead Equivalency)

This thickness is commonly used in diagnostic imaging environments where moderate ceiling shielding is required. It is often specified when the space above the imaging room has minimal or limited occupancy.

1/16" Lead (1.6 mm Lead Equivalency)

This heavier shielding option is used when additional radiation protection is required, such as imaging rooms located beneath offices, corridors, or other frequently occupied spaces.

Final lead thickness requirements should always be determined by a qualified radiation physicist based on equipment type, workload, occupancy factors, and room layout.

Designed for X-Ray Room Construction

Lead-lined T-bar ceilings are designed to integrate seamlessly into medical construction projects. The system allows contractors to install radiation shielding without sacrificing the benefits of a suspended ceiling.

• Continuous radiation shielding across the ceiling plane
• Compatibility with standard ceiling tile systems
• Access to mechanical, electrical, and plumbing systems above the ceiling
• Simple coordination with lead-lined walls and structural shielding
• Clean appearance suitable for medical environments

By maintaining a suspended ceiling layout, facility owners can access ductwork, wiring, and utilities without disturbing the radiation shielding system.

Maintaining Continuous Radiation Protection

Proper installation is essential to ensure the shielding system performs as intended. Lead components in the ceiling must overlap and integrate with the lead-lined walls, lead-lined drywall, and other shielding materials to prevent radiation leakage at seams or penetrations.

Special coordination is required for:

• Ceiling grid penetrations
• Lighting fixtures
• HVAC diffusers
• Access panels
• Fire protection devices

A properly designed lead-lined ceiling system ensures that all penetrations are coordinated with the radiation shielding plan.

Common Applications

Lead-lined T-bar ceiling systems are commonly used in the following environments:

• X-ray imaging rooms
• Fluoroscopy suites
• Interventional radiology (IR) labs
• C-arm operating rooms
• Cardiac catheterization labs
• Veterinary radiography rooms
• Industrial X-ray inspection rooms

In these environments, ceiling shielding helps ensure radiation exposure in surrounding areas remains within regulatory limits.

Complete Radiation Shielding Solutions

Every imaging room has unique shielding requirements. Lead Glass Pro can assist with selecting the appropriate lead thickness and coordinating ceiling shielding with the rest of the radiation barrier system.

In addition to lead-lined T-bar ceiling systems, we also supply:

• Lead-lined drywall
• Lead-lined plywood
• X-ray lead glass windows
• Lead-lined door frames
• Lead-lined doors
• Complete radiation shielding packages

Our team works with architects, medical planners, contractors, and radiation physicists to ensure shielding systems meet project specifications and regulatory guidelines.

Request a Quote for Lead-Lined T-Bar Ceiling Systems

If your project requires ceiling radiation shielding for an X-ray room, Lead Glass Pro can supply the materials needed to complete the radiation barrier.

Phone: (800) 506-9972
Email: sales@leadglasspro.com
Website: leadglasspro.com

Contact us to discuss your project requirements and ensure your imaging room includes properly integrated ceiling radiation shielding.
