Radiation Shielding Solutions for Mammography, Breast Imaging, and Low-Energy Diagnostic Suites

Mammography systems use low-energy X-rays that are optimized for breast tissue imaging. While the radiation output is lower than many other imaging modalities, scatter radiation is still present and must be properly contained within the imaging room to protect surrounding areas.

Key shielding considerations include:

• Low-energy, low-dose X-ray exposure

• Focused beam geometry

• Intermittent imaging workload

• Adjacent offices, corridors, and waiting areas

• Shared walls in outpatient imaging facilities

• State regulatory compliance and inspection requirements


Shielding requirements are determined by a medical physicist based on equipment specifications, workload, room size, and surrounding occupancy areas.

Primary Wall Shielding for Mammography Rooms

Lead-Lined Drywall (Industry Standard for Breast Imaging Rooms)

Lead-lined drywall is the most commonly specified wall shielding material for mammography rooms due to its effectiveness in low-energy diagnostic environments and compatibility with standard medical construction practices.

Key Benefits:

• Installs like standard gypsum board

• Custom lead thickness based on shielding reports

• Ideal for outpatient imaging centers and hospitals

• Cost-effective for low-energy imaging applications

• Clean, professional finish for clinical environments


Lead-lined drywall provides reliable radiation attenuation while maintaining conventional wall assembly design in breast imaging suites.

Lead Sheet, Plate, and Rolls (Supplemental and Retrofit Shielding)

In renovation projects or space-constrained imaging centers, lead sheet and rolls may be used to supplement shielding where full wall reconstruction is not feasible.

Common Applications:

• Behind drywall assemblies

• Shared walls with occupied spaces

• Targeted shielding upgrades

• Utility penetrations and structural limitations

• Retrofit mammography room conversions


These materials offer flexible shielding solutions for both new construction and renovation projects.

Radiation Shielding Windows for Mammography Control Areas

X-Ray Lead Glass Viewing Windows

Many mammography rooms include a shielded viewing window between the imaging room and the operator control area, allowing technologists to safely monitor patients during imaging procedures.

Advantages:

• Clear, distortion-free visibility

• Verified lead equivalency

• Custom sizing for imaging suite layouts

• Professional clinical appearance

• Seamless integration with lead-lined wall systems


Although shielding requirements are lower than high-energy imaging rooms, lead glass windows are commonly included to improve workflow and patient observation.

Window Frames and Shielded Wall Window Systems

Properly designed shielded frame systems ensure radiation shielding glass maintains full shielding continuity and integrates effectively with lead-lined wall assemblies.

Lead-Lined Doors and Frame Systems for Mammography Rooms

Lead-Lined Wood Doors and Frames

Lead-lined wood doors are commonly used in mammography suites and women’s imaging centers due to their aesthetic compatibility with patient-focused healthcare environments while maintaining required radiation protection.

Lead-Lined Metal Doors and Frames

For hospitals and high-traffic imaging departments, lead-lined metal doors provide enhanced durability, cleanability, and long-term shielding performance.

Door Lite Frames and Shielded Vision Panels

Shielded vision panels allow safe observation without compromising shielding integrity. These panels are custom fabricated to match required lead equivalency, door thickness, and facility specifications.

Shielding Continuity Components (Critical for Compliance and Inspection)

Frame Lead Lining Kits

Ensures continuous radiation shielding between door frames and wall systems, preventing radiation leakage at transition points.

Lead Corners and Batten Strips

Used to seal joints between lead-lined drywall panels and maintain uninterrupted shielding coverage throughout the mammography room enclosure.

Electrical Box Lead Lining

Electrical outlets, switches, and penetrations are common weak points in shielding systems. Lead-lined electrical box protection helps maintain full radiation containment and regulatory compliance.

Lead-Lined Access Panels

Provides access to utilities and building systems while preserving shielding integrity in regulated medical imaging environments.

Mobile and Supplemental Radiation Protection for Mammography Environments

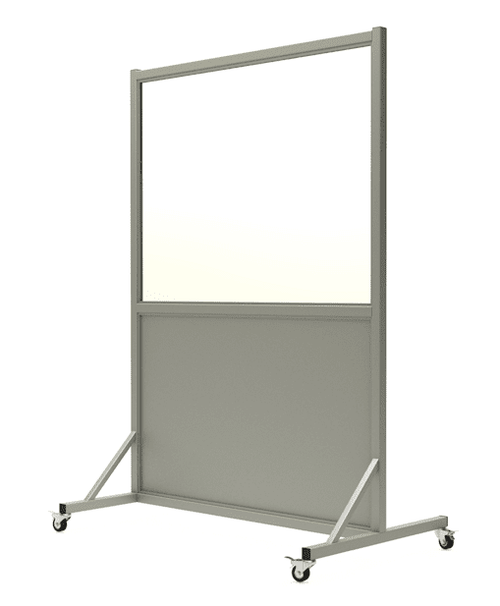

Mobile X-Ray Barriers

Mobile barriers may be used as supplemental protection in multi-use imaging rooms or flexible clinic layouts where operator positioning varies.

Lead Vinyl Shielding

Flexible lead vinyl shielding may be incorporated in retrofit environments or specialized imaging layouts requiring additional localized protection.

Lead Blankets and Localized Shielding

Lead blankets may be used for supplemental localized protection in certain clinical workflows, although they are less commonly required due to the low radiation output of mammography systems.

Wearable Radiation Protection for Mammography Staff

Due to the low-dose nature of mammography imaging, wearable radiation protection requirements are generally lower than in fluoroscopy or interventional environments. However, facilities may still implement protective equipment based on safety protocols.

Available PPE Includes:

• Lead aprons

• Thyroid shields

• Radiation protection eyewear


These products provide an added layer of occupational safety for technologists who regularly operate mammography equipment.

Designed for Women’s Imaging Centers, Hospitals, and Outpatient Clinics

Lead Glass Pro mammography room shielding products are ideal for:

• Women’s imaging centers

• Breast imaging suites

• Hospitals and diagnostic departments

• Outpatient radiology clinics

• Oncology and screening facilities

• Medical office imaging buildouts

• Retrofit mammography room conversions


Our products are engineered to meet medical imaging shielding standards while supporting patient-centered clinical design and regulatory compliance.

Custom Mammography Room Shielding Solutions

Every mammography room has unique shielding requirements based on equipment type, room size, workload, and surrounding occupancy areas. Lead Glass Pro custom fabricates each shielding product to match project-specific specifications, including:

• Lead equivalency based on shielding reports

• Custom window and frame dimensions

• Door configurations and hardware

• Compatibility with standard healthcare wall systems

• Retrofit and new construction applications

• Regulatory and inspection compliance requirements


Request a Quote for Mammography Room Shielding Products

Proper radiation shielding is essential for regulatory compliance, staff safety, and long-term performance in breast imaging environments. Lead Glass Pro provides fully customized shielding products engineered specifically for mammography rooms and low-energy diagnostic imaging suites.

Our team can review shielding reports, architectural drawings, and equipment specifications to recommend the appropriate products for your mammography room and help ensure smooth inspections, licensing approval, and dependable long-term radiation protection.
