Industrial radiography uses high-energy X-rays or gamma radiation to evaluate internal defects in materials, machinery, and structural components. Because the radiation output can be significantly higher than standard medical imaging systems, shielding requirements are often more intensive and highly customized.
Key radiation characteristics in NDT environments include:
- High-energy X-ray beams (often 160–450 kVp or higher)
- Gamma sources such as Ir-192 or Co-60
- Large beam fields for oversized components
- Continuous or long-duration exposures
- High scatter radiation from dense materials (steel, castings, welds)
- Operator proximity in controlled industrial settings
Industrial X-ray systems are specifically designed to penetrate thick materials, which means shielding must be engineered to attenuate more penetrating radiation compared to diagnostic medical imaging rooms.
Room Design: NDT Bunkers, Vaults, and Shielded Enclosures
Large-Scale Shielded Rooms and Vault Construction
Industrial NDT rooms are often significantly larger than medical imaging rooms to accommodate large parts, inspection tables, robotic manipulators, or conveyor-based inspection systems. These rooms may include oversized shielded doors, thick wall assemblies, and reinforced shielding structures depending on the size and radiation output of the equipment.
In many industrial facilities, NDT rooms function as fully enclosed radiation bunkers where shielding must be integrated into:
- Walls
- Ceilings
- Floors
- Penetrations and conduits
- Access doors and viewing windows
A continuous shielding system across all surfaces is critical to ensure radiation dose levels outside the room remain within regulatory limits.
Primary Structural Shielding for Industrial X-Ray Rooms
Lead-Lined Drywall (Standard Shielding for Moderate-Energy Industrial Systems)
Lead-lined drywall is commonly used in industrial X-ray rooms when the radiation output and shielding calculations permit conventional wall assemblies. It provides reliable attenuation for scatter radiation and moderate-energy inspection systems while allowing standard construction methods.
Key Benefits:
- Compatible with metal stud and structural wall systems
- Custom lead thickness based on physicist or RSO calculations
- Cost-effective for smaller NDT rooms and cabinet systems
- Suitable for retrofit industrial inspection spaces
Lead-Lined Plywood (Preferred for Thick Lead and Heavy Shielding Loads)
In higher-energy NDT environments, thicker lead shielding is often required, and lead-lined plywood is frequently specified instead of drywall. Lead is dense and not self-supporting, and thicker sheets can sag or deform if not mounted to a rigid substrate. Plywood-backed lead panels provide superior structural support, improved durability, and long-term stability for heavy shielding assemblies.
Lead-lined plywood is commonly used for:
- High-energy industrial radiography rooms
- Reinforced wall assemblies
- Ceiling and floor shielding zones
- Equipment interface walls
- Retrofit heavy-lead installations
This approach ensures the shielding system maintains integrity over time while meeting calculated attenuation requirements.
Lead Sheet, Plate, and Rolls (High-Energy Supplemental Shielding)
Industrial NDT facilities often require heavier shielding thicknesses than medical imaging rooms due to the penetrating nature of industrial X-rays and gamma sources. Supplemental lead sheet and plate are used to reinforce critical radiation pathways and structural weak points.
Common Applications:
- Primary beam wall reinforcement
- Penetrations and service conduits
- Control booth barriers
- Structural upgrades in existing facilities
- High-scatter zones around inspection fixtures
High-energy industrial environments may require thicker, modular lead enclosures or heavy shielding systems beyond standard medical lead thicknesses.
Lead Bricks and Modular Shielding for Industrial Applications
Lead Bricks and Chevrons for Flexible Shielding Layouts

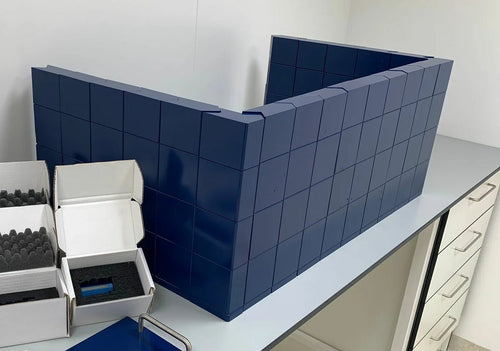

Lead bricks are widely used in industrial NDT rooms due to their modular, high-density shielding capabilities. Interlocking lead brick systems allow facilities to create gapless radiation barriers and adaptable shielding configurations around equipment, inspection fixtures, or localized radiation sources.
Typical Uses:
- Temporary or reconfigurable shielding walls
- Equipment shielding enclosures
- Source storage areas
- Maintenance zones
- Localized high-exposure pathways
Because industrial testing setups often change based on the size and geometry of inspected parts, modular shielding solutions like lead bricks provide critical flexibility.
Radiation Shielding Windows and Control Booth Protection
Radiation Shielding Lead Glass Viewing Windows

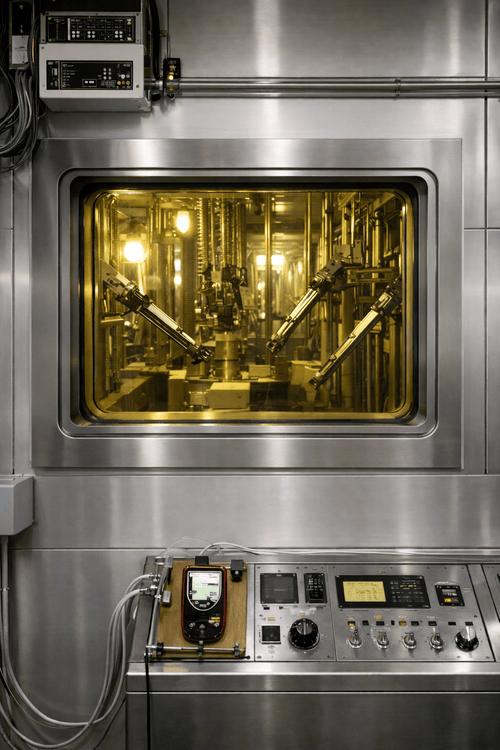

Industrial X-ray rooms frequently include shielded observation windows in control booths or operator stations to allow safe monitoring during exposures. Radiation shielding lead glass provides visibility while attenuating direct and scatter radiation from high-energy inspection systems.
Key Advantages:
- High optical clarity for inspection monitoring
- Custom lead equivalency for industrial energy levels
- Integration with thick wall assemblies
- Durable for industrial environments
Shielded control booths and operator barriers are commonly incorporated to reduce occupational exposure during radiographic inspections.
Lead-Lined Doors and Oversized Industrial Access Systems
Lead-Lined Personnel Doors and Frames
Lead-lined doors are essential for maintaining shielding continuity in NDT rooms and preventing radiation leakage at access points. These doors are engineered with internal lead cores and reinforced hardware due to their significant weight.
Typical Applications:
- Industrial inspection rooms
- Radiography bunkers
- Controlled radiation areas
- Equipment access rooms
Large Shielded Sliding or Bi-Parting Doors
Industrial NDT facilities often require oversized shielded doors to accommodate large components or machinery. These doors can contain substantial lead thickness and structural reinforcement due to their scale and radiation protection requirements.
Shielding Continuity Components (Critical for High-Energy Compliance)
Frame Lead Lining Kits
Ensures continuous shielding between door frames and wall assemblies to eliminate radiation leakage points.
Lead Corners and Batten Strips
Used to seal joints between lead-lined panels and maintain uninterrupted shielding coverage across large industrial wall systems.
Electrical Box and Penetration Shielding
Utility penetrations, conduits, and service openings must be shielded to prevent weak points in high-energy radiation containment systems.
Lead-Lined Access Panels
Allows safe access to mechanical and electrical systems while maintaining full shielding integrity.
Mobile and Supplemental Industrial Radiation Protection
Mobile Shielding Barriers
Portable shielding barriers may be used in industrial radiography areas where equipment setups change frequently or temporary inspection zones are created.
Lead Curtains and Flexible Shielding
Flexible shielding curtains can provide localized protection around inspection areas, especially when testing irregularly shaped components.
High-Density Concrete and Mixed Shielding Systems
In some high-output industrial facilities, shielding systems may combine lead, steel, and dense concrete blocks to achieve required attenuation levels for worker and environmental safety.
Regulatory and Safety Considerations for NDT Radiation Rooms
Industrial radiography is classified as a high-risk radiation activity, and strict safety controls are required to protect workers and the public from ionizing radiation exposure. Shielding design must be based on expert calculations that consider equipment output, workload, distance, and surrounding occupancy.
Shielding is typically reviewed and specified by:
- Radiation Safety Officers (RSO)
- Health physicists
- Regulatory authorities (state or federal)
- Industrial safety compliance teams
Designed for Industrial, Aerospace, Energy, and Manufacturing Facilities
Lead Glass Pro industrial NDT shielding products are ideal for:
- Industrial X-ray inspection rooms
- Aerospace component testing facilities
- Pipeline and weld inspection labs
- Foundries and manufacturing plants
- Defense and military testing facilities
- Research and materials testing laboratories
- Large-scale radiography bunkers and vaults
Our products are engineered to withstand industrial environments while delivering consistent radiation attenuation and long-term durability.
Custom Industrial NDT Shielding Solutions
Every industrial NDT room has unique shielding requirements based on X-ray energy levels, source type, inspection workload, room size, and surrounding occupancy areas. Lead Glass Pro custom fabricates each shielding product to match project-specific specifications, including:
- Lead equivalency based on radiation surveys
- Custom wall panel and structural shielding designs
- Oversized doors and access systems
- Modular lead brick configurations
- Integration with industrial equipment layouts
- Retrofit and new construction applications
Request a Quote for Industrial NDT X-Ray Room Shielding
Proper shielding is essential for occupational safety, regulatory compliance, and operational reliability in industrial radiography environments. Lead Glass Pro provides fully customized shielding products engineered specifically for industrial X-ray imaging rooms, NDT bunkers, and high-energy inspection facilities.
Our team can review radiation surveys, equipment specifications, and architectural drawings to recommend the appropriate shielding products and help ensure regulatory approval, safe operation, and long-term radiation containment.
