Understanding Radiation Shielding Plans (For Non-Experts)
Radiation shielding plans can look intimidating at first glance. They’re full of tables, technical terms, and references to physics that most architects, contractors, and facility managers don’t deal with every day.
But at their core, these documents are actually straightforward: they tell you what needs to be shielded, how much protection is required, and where materials like lead glass or lead-lined drywall must go.
This guide breaks everything down into plain English so you can confidently understand what’s in a shielding report—and avoid costly mistakes during construction.
For real-world installation examples and system walkthroughs, you can also view our video resources here:
👉 https://leadglasspro.com/pages/videos
What Is a Radiation Shielding Plan?
A radiation shielding plan (also called a shielding report) is a technical document created by a qualified medical physicist. It calculates how much radiation protection each wall, door, ceiling, and window in a room needs.
The goal is simple:
- Keep radiation exposure below safe limits
- Meet federal and state regulations
- Ensure safe operation of imaging equipment
These reports are based on established guidelines such as NCRP Report No. 147, which is the standard used in medical imaging facility design.
The Key Parts of a Shielding Plan (Explained Simply)
1. Room Layout Diagram
This is a floor plan showing where the X-ray or imaging equipment is located and what surrounds the room.
Why it matters: Radiation exposure depends heavily on what rooms are next door (offices, hallways, patient rooms, etc.).
2. Barrier Classifications
Every surface is labeled as either:
- Primary barrier: Direct radiation exposure area
- Secondary barrier: Scatter and leakage radiation only
Primary barriers require significantly more shielding than secondary ones.
3. Lead Equivalency Requirements
This tells you how much shielding each surface needs, measured in millimeters of lead (mm Pb).
- Walls may require 1.5–3.0 mm Pb
- Lead glass windows must match adjacent wall shielding
- Doors are also rated for equivalent protection
This is the most important section for material selection.
4. Occupancy Factors
This determines how often people are in adjacent rooms.
Examples:
- Office = high occupancy → more shielding required
- Storage room = low occupancy → less shielding required
5. Use Factor
This describes how often the X-ray beam points toward a specific wall.
A wall that is frequently exposed needs more shielding than one that rarely receives direct radiation.
6. Workload
Workload refers to how much the imaging equipment is used.
Higher usage = more radiation = more shielding required.
Where Lead Glass Fits Into the Plan
Lead glass is specified wherever visual monitoring is required through a shielded barrier.
The shielding plan will specify:
- Exact lead equivalency required for the glass
- Location and size of viewing windows
- Compatibility with surrounding wall shielding
If the glass does not match the required shielding level, the entire system can fail inspection—even if everything else is correct.
Relevant Standards Used in Shielding Plans
- NCRP Report No. 147 – Primary standard for medical X-ray shielding design
- NCRP Report No. 151 – Dental radiation protection guidelines
- ASTM C1036 – Standard specification for flat glass
- ASTM C1172 – Laminated safety glass requirements
- IEC 61331 – Protective devices against diagnostic X-radiation
Common Misunderstandings About Shielding Plans
- Thinking all walls need the same shielding (they don’t)
- Assuming thicker glass is always better (it’s not)
- Installing materials without checking the physicist’s report
- Mixing up primary and secondary barrier requirements
- Using non-rated framing systems for lead glass
These mistakes often lead to failed inspections, redesign costs, and construction delays.
Why Shielding Reports Matter So Much

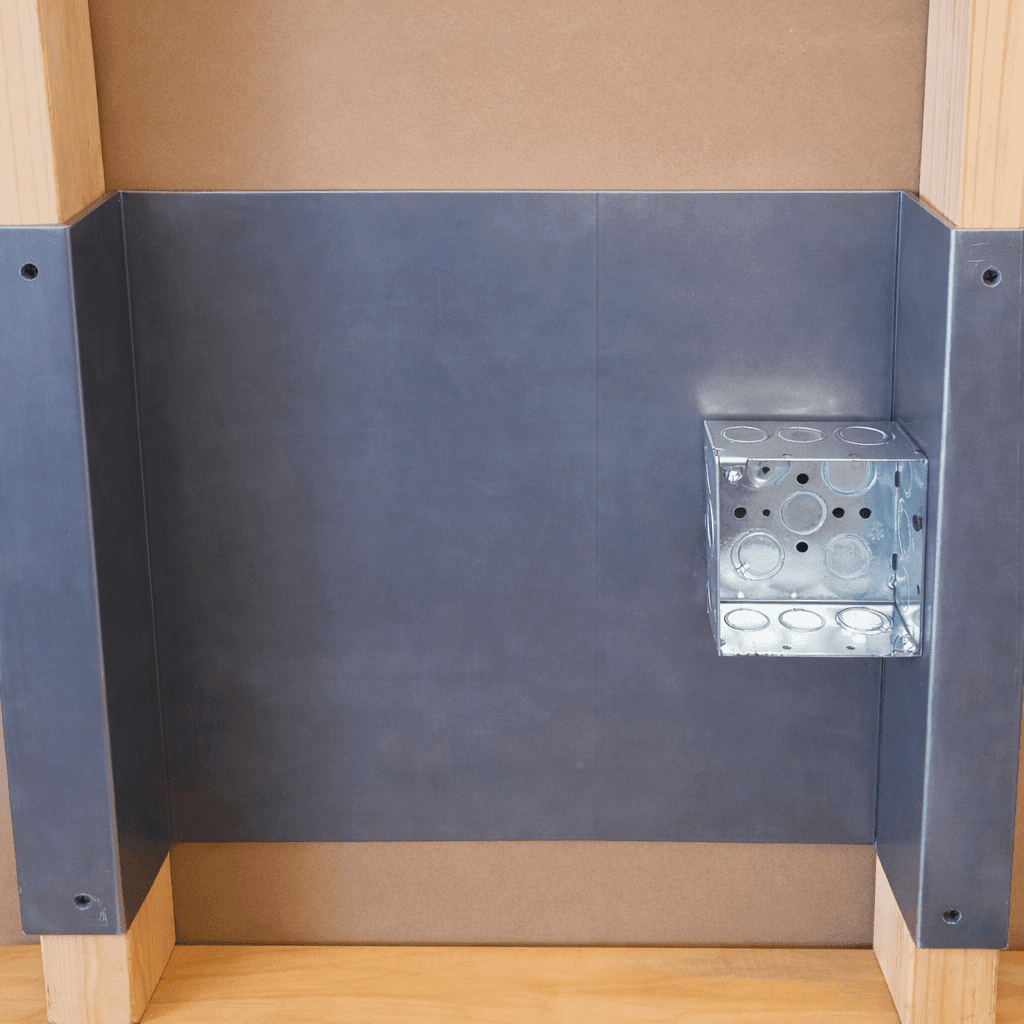

A shielding report is not just a recommendation—it is the legal and technical foundation of your radiation protection design. Shielding plans often call out Lead Boxes at all wall penetrations, including electrical outlets, data ports, and switch boxes.
It ensures:
- Compliance with NCRP guidelines
- Compliance with state radiation control regulations
- Safe operation of imaging equipment
- Correct material selection (including lead glass)
Final Thoughts
Radiation shielding plans are not as complicated as they first appear. Once you understand the key components—barriers, lead equivalency, occupancy, and workload—they become a clear roadmap for safe construction.
The most important takeaway is this: your shielding report drives every material decision, including lead glass selection. When a shielding plan specifies wall protection, Lead Lined Gypsum Board is the standard product used across medical, dental, and veterinary x-ray rooms.
When in doubt, always defer to a qualified medical physicist and ensure all materials align with NCRP-based design requirements. When your shielding plan calls out wall protection, this Lead Lined Drywall collection covers every material option you'll need.
Frequently Asked Questions (FAQs)
What is a radiation shielding plan?
It is a document created by a medical physicist that determines how much shielding each part of a radiation room requires.
Who creates shielding reports?
Qualified medical physicists based on NCRP guidelines and state regulations.
Why are shielding plans necessary?
They ensure radiation exposure stays within safe limits and that the facility meets legal requirements.
Do shielding plans specify lead glass?
Yes. They specify where lead glass is required and what lead equivalency it must meet.
What happens if I ignore the shielding plan?
You risk failed inspections, unsafe radiation exposure, and expensive rework.
What standard is most commonly used?
NCRP Report No. 147 is the primary standard for medical imaging shielding design.
