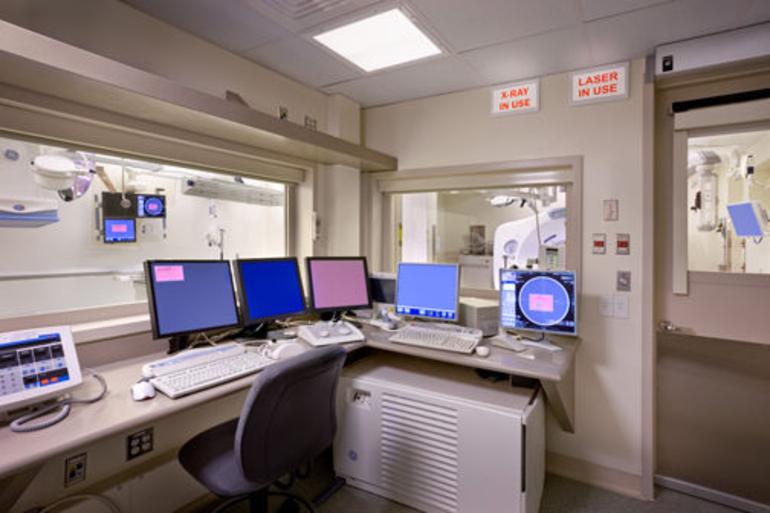

Lead Glass for Chiropractic Imaging Rooms

Many chiropractic clinics use diagnostic X-ray equipment as part of patient evaluation and treatment planning. Because these systems produce ionizing radiation, chiropractic imaging rooms often require radiation shielding to help protect staff, patients, and occupants in surrounding areas.

One important component of many chiropractic X-ray rooms is lead glass. Lead glass allows chiropractors and staff to observe the imaging area while remaining behind a protective radiation barrier.

Although chiropractic imaging systems are typically smaller than hospital CT or fluoroscopy equipment, proper shielding design is still essential for safety and regulatory compliance.

This guide explains how lead glass is used in chiropractic imaging rooms, why shielding matters, and what clinic owners and contractors should consider when designing or upgrading a chiropractic X-ray room.

Do Chiropractic Clinics Need Radiation Shielding?

Yes. Chiropractic offices that use X-ray equipment generally require some form of radiation shielding based on:

• The imaging equipment type
• The room layout
• Local regulations
• Occupancy conditions in nearby spaces

Shielding requirements may apply to:

• Digital radiography rooms
• Full spine imaging areas
• Extremity imaging systems
• Standing X-ray rooms

The exact shielding requirements are usually determined through a radiation shielding report or review by a qualified physicist or shielding consultant.

Why Lead Glass Is Used in Chiropractic X-Ray Rooms

Lead glass provides radiation attenuation while maintaining visibility into the imaging room.

This allows chiropractors and staff to:

• Observe patients during imaging
• Monitor positioning
• View the equipment safely from a protected area
• Maintain visibility while reducing radiation exposure

Unlike standard commercial glazing, X-Ray Lead Glass contains lead oxide within the glass composition itself, allowing the material to absorb radiation while remaining transparent.

Common Chiropractic Imaging Room Configurations

Dedicated X-Ray Rooms

Many chiropractic clinics use a dedicated imaging room separated from treatment areas and waiting rooms.

These rooms commonly include:

• Shielded walls
• Lead-lined doors
• Lead glass observation windows

The observation window allows the operator to maintain visibility while remaining behind a protective barrier during exposures.

Integrated Imaging Areas

Some smaller chiropractic clinics integrate imaging systems into existing treatment spaces.

In these situations, shielding requirements may depend heavily on:

• Distance to adjacent occupied areas
• Direction of the primary beam
• Workload and imaging frequency

Even smaller imaging systems may still require properly shielded operator locations.

Lead Equivalency Requirements

Lead glass is typically specified using lead equivalency ratings such as:

• 1.0mm Pb
• 1.5mm Pb
• 2.0mm Pb

The required lead equivalency depends on:

• Maximum operating kVp
• Imaging workload
• Room size
• Occupancy conditions outside the room
• Distance from the X-ray source

Most chiropractic imaging systems use lower energy levels than CT or fluoroscopy equipment, but shielding calculations are still necessary to determine the correct protection level.

Why Standard Glass Is Not Sufficient

Standard commercial glass does not provide the same radiation attenuation as lead glass.

Even if the surrounding walls are shielded, a standard viewing window can become a weak point in the radiation barrier.

Lead glass is specifically engineered to provide visibility while maintaining shielding performance.

Lead-Lined Frames Are Often Necessary

The glass itself is only part of the shielding system.

In many chiropractic X-ray rooms, the frame surrounding the glass must also be lead lined to maintain shielding continuity around the opening.

Installing lead glass into a standard unshielded frame can allow radiation leakage around the perimeter.

This is why complete Lead-Lined X-Ray Windows are commonly used in chiropractic and medical imaging environments.

Shielding Continuity Is Critical

Radiation shielding systems work best when the entire room functions as one continuous protective barrier.

This may include:

• Lead-lined drywall
• Lead-lined doors
• Lead-lined frames
• Lead glass windows
• Shielded control barriers

Improperly shielded transitions or openings can create leakage points even when the glass itself is correctly rated.

Chiropractic Office Layout Matters

Shielding requirements often depend heavily on the location of surrounding occupied spaces.

For example:

• A hallway or waiting room may require more shielding than a storage closet
• Shared tenant walls may require additional protection
• Operator locations must be properly shielded from scatter radiation

The shielding design should always account for how the room is actually being used.

Can Existing Chiropractic Clinics Be Retrofitted?

Yes. Existing chiropractic clinics can often be retrofitted with lead glass and additional shielding systems.

Retrofit projects are common when:

• Adding digital X-ray equipment
• Upgrading older imaging systems
• Converting existing rooms into imaging rooms
• Correcting inadequate shielding conditions

However, retrofit projects still require proper shielding calculations and compatibility between the wall system, framing, and glass.

Common Mistakes in Chiropractic Shielding Projects

Some of the most common issues include:

• Using standard glass instead of lead glass
• Ignoring frame shielding requirements
• Ordering incorrect lead equivalency
• Failing to verify wall thickness
• Overlooking occupancy conditions in neighboring spaces
• Improper installation around openings

These issues can lead to failed inspections and expensive rework.

Why Shielding Reports Are Important

The proper shielding design for a chiropractic imaging room should be based on a radiation shielding report or evaluation by a qualified physicist.

The shielding analysis typically evaluates:

• X-ray equipment type
• Maximum operating kVp
• Workload
• Beam direction
• Occupancy conditions
• Distance to surrounding areas

The report then specifies the required shielding levels for walls, doors, and windows.

Choosing the Right Lead Glass for a Chiropractic Clinic

When selecting lead glass for a chiropractic imaging room, important considerations include:

• Required lead equivalency
• Window size
• Frame compatibility
• Wall thickness
• Safety glazing requirements
• Shielding continuity

For standalone shielding glazing products, view our X-Ray Lead Glass.

For complete shielding assemblies, explore our Lead-Lined X-Ray Windows.

Final Thoughts

Lead glass is an important part of many chiropractic imaging rooms because it allows staff to maintain visibility while helping reduce radiation exposure outside the room. Chiropractic x-ray rooms typically require standard lead-backed Sheetrock on all four walls plus the ceiling to meet local radiation codes.

Although chiropractic imaging systems are often smaller than hospital imaging equipment, proper shielding design is still critical for safety, compliance, and long-term functionality.

By selecting the correct lead glass and maintaining proper shielding continuity, chiropractic clinics can create safer and more professional imaging environments.
