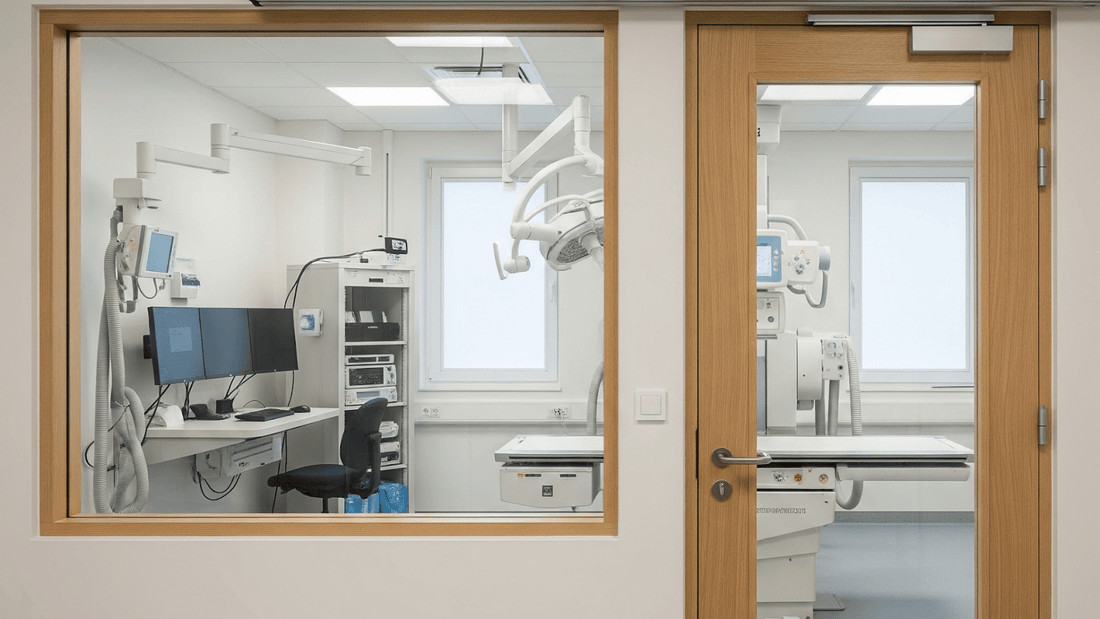

How to Frame an X-Ray Window Correctly

Proper framing is one of the most important parts of an X-ray window installation. Even high-quality lead glass can fail to provide adequate radiation protection if the surrounding frame and wall opening are not constructed correctly.

In radiation shielding applications, the window assembly must maintain continuous shielding around the entire opening—not just through the glass itself. Improper framing can create weak points, inspection failures, installation issues, and expensive rework.

This guide explains the key considerations contractors, installers, and project managers should understand when framing an X-ray window.

Why Proper Framing Matters

Unlike standard commercial windows, X-ray windows are part of the room’s radiation shielding system. The lead glass, frame, wall shielding, and surrounding construction all work together to prevent radiation leakage.

If any part of the assembly is installed incorrectly, the shielding continuity can be compromised.

Common framing mistakes include:

• Using non-shielded frames
• Leaving gaps around the opening
• Improper overlap of lead materials
• Incorrect rough opening dimensions
• Insufficient structural support

These issues can lead to failed inspections, project delays, and costly repairs after installation is already complete.

Start With the Shielding Requirements

Before framing begins, verify the project’s shielding requirements. These are typically provided in:

• The radiation shielding report
• Architectural drawings
• Project specifications
• Physicist recommendations

The specified lead equivalency for the window must match the surrounding wall shielding and frame system.

For example, if the wall requires 2.0mm lead equivalency, the window assembly and frame typically must maintain equivalent protection throughout the opening.

Use a Proper Lead-Lined Window Frame

One of the biggest mistakes in radiation shielding installations is attempting to install lead glass into a standard commercial frame.

Standard aluminum or hollow metal frames do not provide radiation shielding unless they are specifically designed and lined for X-ray applications.

A proper X-ray window frame should:

• Contain lead lining matching the specified shielding level
• Provide shielding continuity around the perimeter
• Support the weight of the lead glass safely
• Be designed specifically for radiation shielding applications

For complete shielding assemblies, see our Lead-Lined X-Ray Windows, which are designed for medical and imaging environments.

Understand the Weight of Lead Glass

Lead glass is significantly heavier than standard glass because of its density and shielding composition.

Large viewing windows can become extremely heavy, especially at higher lead equivalencies. The framing system must be capable of safely supporting this weight over time.

Contractors should consider:

• Structural wall support
• Anchor requirements
• Handling equipment during installation
• Safe lifting procedures

Improper support can lead to frame deflection, stress on the glass, or installation failure.

Coordinate Rough Opening Dimensions Carefully

Radiation shielding windows are custom manufactured and cannot typically be modified in the field.

For this reason, the rough opening dimensions must match the approved shop drawings and frame specifications exactly.

Common mistakes include:

• Framing the opening too small
• Using standard commercial tolerances
• Ignoring wall finish thickness
• Failing to account for lead-lined drywall buildup

Always verify dimensions before fabrication begins.

Maintain Shielding Continuity

Radiation shielding systems are only effective if there are no gaps or interruptions in the shielding barrier.

At the window opening, this means:

• Lead-lined walls must properly overlap the frame
• Lead lining must continue around the perimeter
• No exposed openings or voids should remain
• Fasteners and penetrations should be properly addressed

Even small gaps can become leakage points during radiation testing.

This is one of the main reasons why properly engineered lead-lined window systems are recommended over attempting to piece together components from multiple sources.

Coordinate With Other Trades

X-ray window framing often intersects with multiple trades, including:

• Drywall contractors
• Lead shielding installers
• Glaziers
• Door and frame installers
• Electrical contractors

Poor coordination can create major problems if wall finishes, shielding layers, or framing details are installed out of sequence.

Before installation begins, ensure all parties understand:

• Shielding requirements
• Frame dimensions
• Lead overlap requirements
• Wall thickness conditions
• Final glazing procedures

Protect the Lead Glass During Installation

Lead glass is a specialty shielding product and should not be treated like ordinary commercial glazing.

During installation:

• Do not place excessive pressure on edges
• Avoid twisting or flexing the panel
• Keep glass protected from jobsite debris
• Use proper setting blocks and glazing materials
• Never attempt to cut or modify the glass in the field

Edge damage and stress during installation are common causes of breakage.

Consider Safety Glass Requirements

Depending on the application and local building code, the X-ray window may also require safety glazing.

This is especially common when the window is:

• Installed in or near a door
• Located in high-traffic areas
• Installed near floor level

Lead glass itself cannot be tempered, but safety-rated assemblies can be created using laminated safety backing systems.

Why Complete Window Systems Simplify Installation

Using a complete engineered window assembly can help avoid many common installation problems.

Complete systems help ensure:

• Compatible frame and glass sizing
• Proper shielding continuity
• Correct lead equivalency matching
• Simplified coordination during construction

Our Lead-Lined X-Ray Windows are designed specifically for radiation shielding applications and are available in custom sizes and shielding levels.

For standalone shielding glass, view our X-Ray Lead Glass.

Final Thoughts

Framing an X-ray window correctly is about much more than simply installing glass into a wall opening. Every part of the assembly must work together to maintain continuous radiation shielding and provide long-term structural support.

By using the correct frame system, maintaining shielding continuity, coordinating dimensions carefully, and handling the materials properly, contractors can avoid failed inspections, costly rework, and installation issues.

Planning the framing details correctly from the beginning is one of the best ways to ensure a successful radiation shielding installation.
