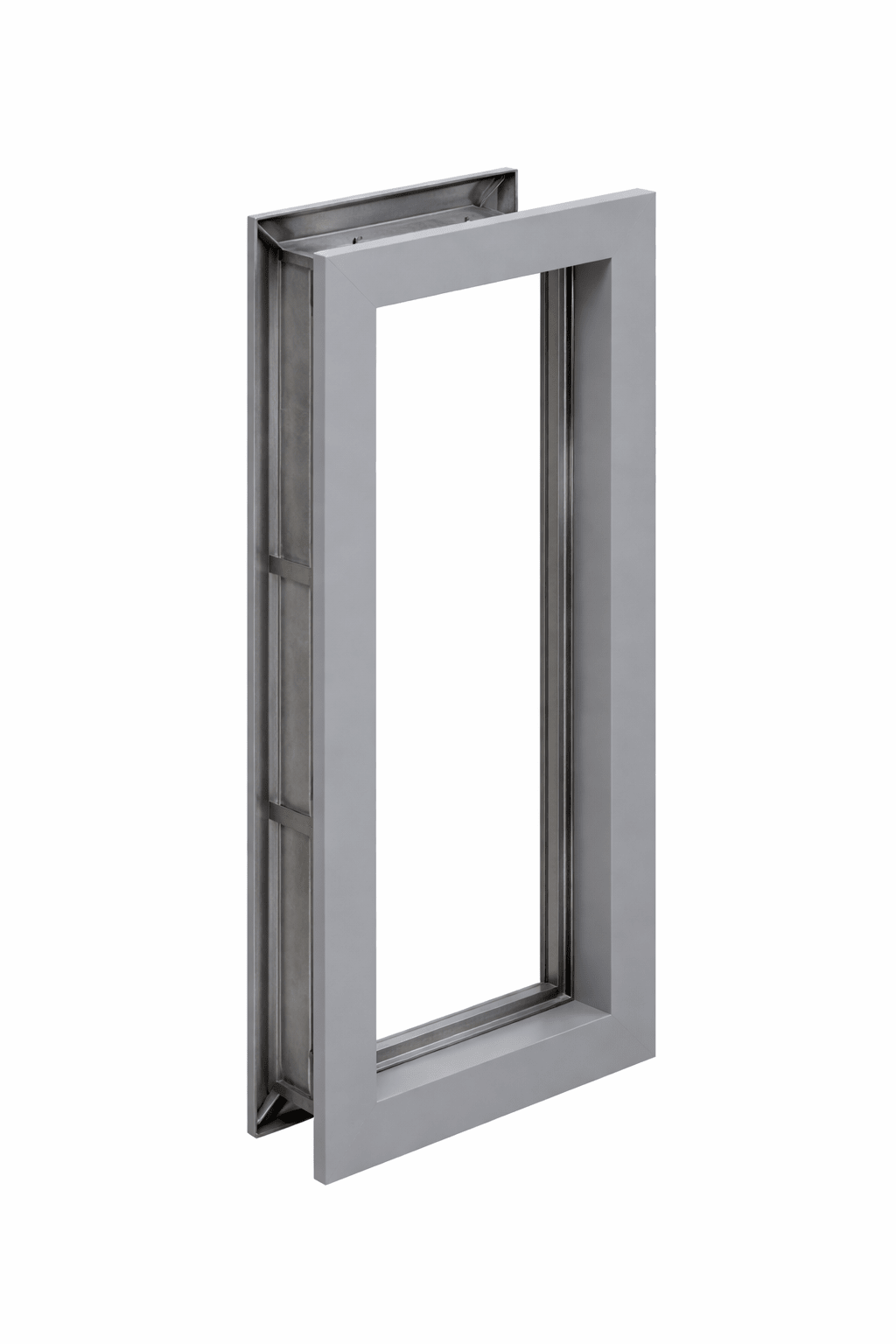

Lead-Lined Door & Window Frame Lining Kits
Close the gaps. Block the radiation. Stay compliant.
Even the smallest gap around lead-lined drywall, lead-lined doors, or lead glass windows can compromise your facility’s radiation shielding. Our lead-lined frame lining kits are engineered to ensure both door frames and window frames remain fully sealed against radiation leaks in X-ray and imaging environments.
These X-ray frame shielding kits provide continuous lead protection for door frames, window frames, and wall openings in medical, dental, veterinary, laboratory, and industrial imaging facilities. They are not intended for residential use.
Why Choose Our Door & Window Frame Lining Kits
- Complete Radiation Seal: Closes gaps between lead drywall, leaded glass, doors, and window frames
- Built for Compliance: Meets NCRP requirements for lead overlap and shielding continuity
- Fits Any Frame: Flat kits for field bending or pre-bent kits made to your exact door or window frame specifications
- Durable and Reliable: High-purity lead lining bonded with adhesive for long-term shielding performance
- Fast Turnaround: Ships in 2–3 business days with free shipping
Kit Specifications and Frame Coverage
- Kit Size: Five pieces, each measuring 6" × 48"
- Frame Coverage: Designed for door frames up to 4' × 8' and window frames up to 4' × 5'
- Lead Thickness: Standard and custom lead equivalencies available for X-ray shielding requirements
- Installation Location: Installed within the internal throat of door and window frames (inside the wall cavity)
- Overlap Protection: Maintains required ½" lead overlap with adjacent shielding materials
Customization Options for Door & Window Frames
- Flat Kits: Universal fit for both door frames and window frames; installer bends on-site
- Pre-Bent Kits: Factory-formed to match your exact frame profile and dimensions
- Internal Door & Fire-Rated Frame Kits: Designed for high-shielding and specialty applications
- Custom Sizing: Oversized, multi-panel, and non-standard window and door frames available
- Custom Lead Thickness: Matched to your project’s radiation shielding report
Installation Guidelines
- Adhesive Required: Use metal-to-metal adhesives such as MetalBond SB-12 or Liquid Nails Fuze-It Max
- Cure Time: Do not disturb components during adhesive curing
- Lead Continuity: Frame lining must meet or exceed surrounding wall and window shielding systems
- Responsibility: Customer must verify correct lead thickness and shielding requirements prior to ordering
Frequently Asked Questions
Can I install these frame lining kits myself?
Yes. Installation is straightforward using standard tools and approved adhesives. Always follow NCRP guidelines for radiation shielding.
Do these kits work for both door frames and window frames?
Yes. Our kits are designed for both door and window frame applications, ensuring complete radiation protection across all wall openings.
What if my frame isn’t standard?
No problem. We offer pre-bent, custom-cut kits tailored to your exact door or window frame dimensions.
Are these kits for residential use?
No. These products are intended exclusively for medical, dental, veterinary, and industrial radiation shielding applications.
How do I determine the correct lead thickness?
Refer to your project’s shielding report or consult a licensed radiation physicist.
Can these kits be used on fire-rated or specialty frames?
Yes. We supply lead lining kits for fire-rated doors, internal frames, and specialty window openings.
What is the lead time?
Fabrication is completed in 2–3 business days, and shipping is always free.
Included With Every Kit
- Premium lead quality
- Fast 2–3 day fabrication
- Free shipping
- Custom door & window frame options available
- Made in the USA
