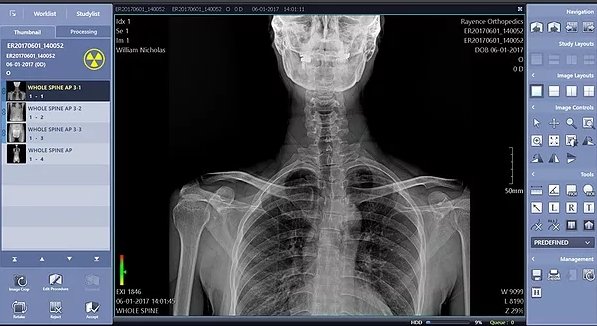

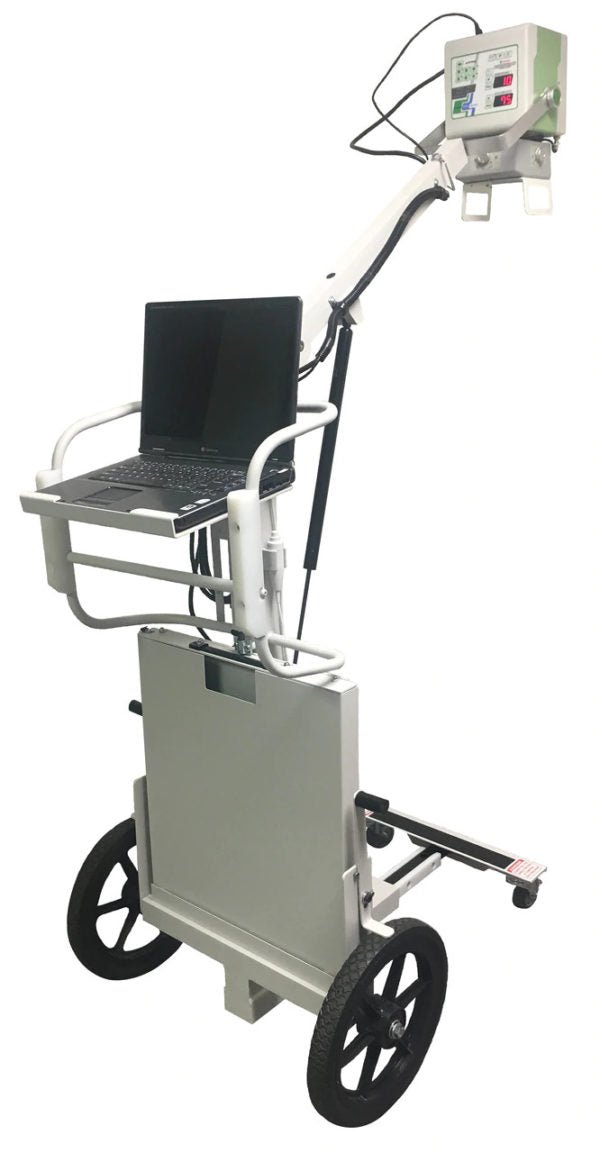

The Rayence DPX is a mobile x-ray unit that is light enough to provide a rapid response and easily transport to different exam rooms while still being powerful enough to handle the workload of an urgent care. The low dose makes this machine safer for x-ray technicians and patients while delivering high quality images with the latest, user-friendly Rayence software and a wireless DR Panel included. No dedicated room required, no lead shielding required, and no installation makes this unit incredibly affordable while not sacrificing quality and longevity.
- Lightweight: 100 pounds

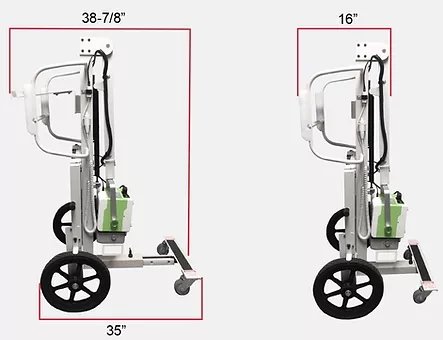

- Compact: 26” Wide x 53" High x 39" Deep
- Self-contained: Includes portable x-ray machine, laptop, software, wireless DR panel detector making this the perfect plug-and-play solution
DPX SPECIFICATIONS
- Max Output Power: 2.8 KW
- Generator Frequency: 70 KHz
- KV Range: 40-120 kV
- mA Range: 12-40 mA
- Input Voltage: 110/220 V
- Phase/Frequency: Single / 50-60 HZ

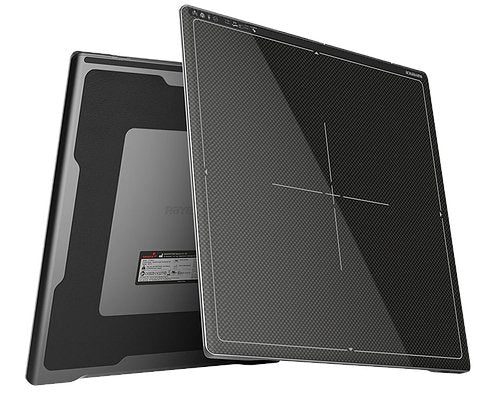

WIRELESS DR FLAT PANEL SPECIFICATIONS
- Active Area: 16.7 x 14 inch
- Scintillator: Cesium (1417WCC)/Gadox (1417WGC)
- Resolution: 3.5 lp/mm
- Effective Pixel Matrix: 3268 x 2756
- Pixel Pitch: 140 ㎛
- A/D Conversion: 14/16 bit
- Preview Time: ≤ 5 Sec.
- Operation Environment: Temperature. +5 ~ +40°F, Humidity. 30 ~ 75%, Pressure. 70 ~ 106 kPa
- Energy Range: 40~150 kVp
- Data Output: Ethernet 1 Gbps Ethernet
- Weight: 6.6 lbs / 3 kg
- Dimensions: 18.1 x 15.1 x 0.6 in
